100G QSFP28 to 4xSFP28 Direct Attach Copper Cables

100G QSFP28 to 4xSFP28 Direct Attach Copper Cables thumbnail-1
100G QSFP28 to 4xSFP28 Direct Attach Copper Cables photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shenzhen Rollball Comm-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

100G QSFP28 to 4xSFP28 Direct Attach Cables

Product Pictures:

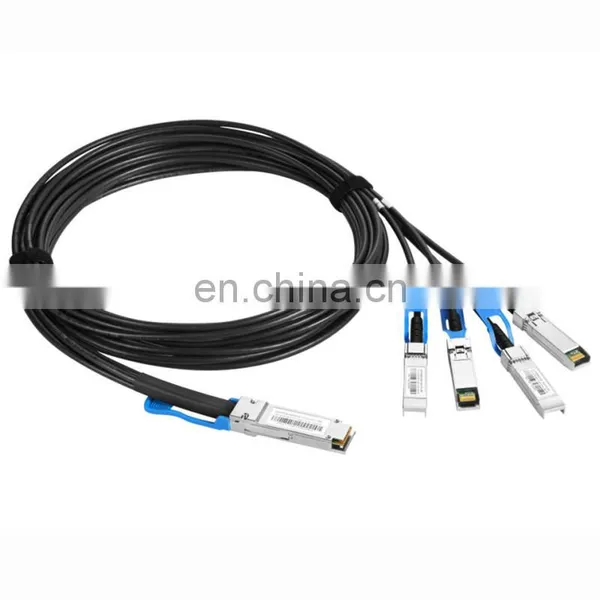

 100G QSFP28 to 4xSFP28 direct attach copper cables

Features:

* Compatible with IEEE 802.3bj,IEEE 802.3by and InfiniBand EDR


* Supports aggregate data rates of 100Gbps

* Optimized construction to minimize insertion loss and cross talk

* Backward compatible with existing QSFP+ connectors and cages

* Pull-to-release slide latch design

* 26AWG through 30AWG cable

* Straight and break out assembly configurations available

* Customized cable braid termination limits EMI radiation

* Customizable EEPROM mapping for cable signature

* RoHS compliant




General Description:

QSFP28 passive copper cable assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet,25G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.

Designed for applications in the data center,networking and telecommunications markets that require a high speed,reliable cable assembly,this next generation product shares the same mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP ports.QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.



Applications:



 * Switches,servers and routers


* Data Center networks

* Storage area networks

* High performance computing

* Telecommunication and wireless infrastructure

* Medical diagnostics and networking

* Test and measurement equipment




Ordering Information :



Part Number
Product Description
RQSFP28-4xSFP28-100G-CU1M
QSFP28 to 4x SFP28 Direct Attach Passive Cable , 1m, AWG:30/28, 0ºC ~ +70ºC
RQSFP28-4xSFP28-100G-CU2M
QSFP28 to 4x SFP28 Direct Attach Passive Cable , 2m, AWG:30/28, 0ºC ~ +70ºC
RQSFP28-4xSFP28-100G-CU3M
QSFP28 to 4x SFP28 Direct Attach Passive Cable , 3m, AWG:30/28, 0ºC ~ +70ºC
RQSFP28-4xSFP28-100G-CU4M
QSFP28 to 4x SFP28 Direct Attach Passive Cable , 4m, AWG:26, 0ºC ~ +70ºC
RQSFP28-4xSFP28-100G-CU5M
QSFP28 to 4x SFP28 Direct Attach Passive Cable , 5m, AWG:26, 0ºC ~ +70ºC

 More to list...

More Products:

100G QSFP28 to 4xSFP28 direct attach copper cables



Compatible Brands:



100G QSFP28 to 4xSFP28 direct attach copper cables



Certifications:

100G QSFP28 to 4xSFP28 direct attach copper cables



Our Company:

Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.

Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.

At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.

100G QSFP28 to 4xSFP28 direct attach copper cables





Exhibition:

100G QSFP28 to 4xSFP28 direct attach copper cables

Shipping:

 100G QSFP28 to 4xSFP28 direct attach copper cables

 If you have any question feel free to contact us.
