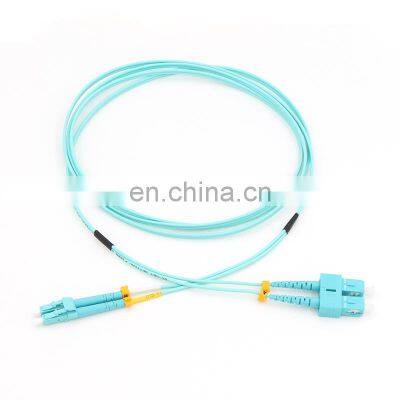

LC SC OM3 Simplex duplex fiber patch cable PVC/LSZH

Name: LC SC OM3 Simplex duplex fiber patch cable PVC/LSZH
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

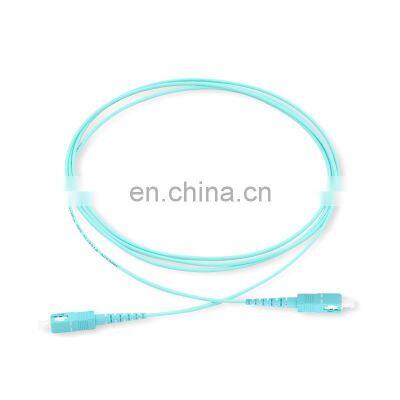

SC UPC to SC UPC simplex 2.0mm LSZH 9/125um single mode fiber patch cable

Application

Gigabit Ethernet

Active device termination

Telecommunication networks

Video

Multimedia

Premise installations

Local area networks

FTTH and FTTX applications

CATV

Features

Low insertion loss and back reflection loss

Good exchangeability

Good Durability

High temperature stability.

Superior Quality Standard PC/UPC/APC Polishing

Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Specification

Mode	SM			MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB			≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Durability	≤0.2dB (1000 times)
Repeatability	≤0.1dB
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm

Ordering options

Boot (cable size)	Cable Color	Fiber Type	Cable number	Ferrule	Length
0.9mm 2.0mm 3.0mm	Yellow Orange Aqua Violet/Rose Green	9/125um SM 50/125um MM 62.5/125um MM OM3 OM4	Simplex Duplex Multi-fiber	PC APC	Customized

How to choose the cable jacket: PVC, LSZH or OFNP?

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on.
Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.

The features of PVC, LSZH and OFNP Jacket are as follows:

PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.

LSZH cable has a special flam-retardant coating, it is between floors in a building.

OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs beween floors.

How to Choose The Cable Type on OM3 or OM4?

The difference of OM4 and OM3 fiber mode as the following

★ OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).

★ The effective modal bandwidth for OM4 is more than double that of OM3.

★ For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
