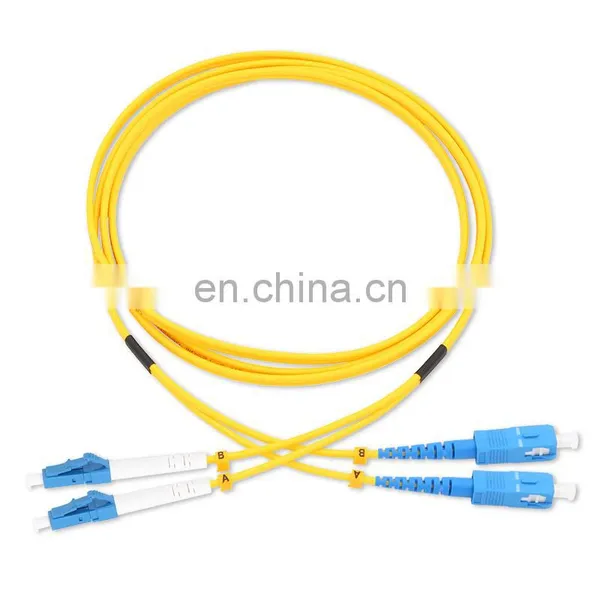

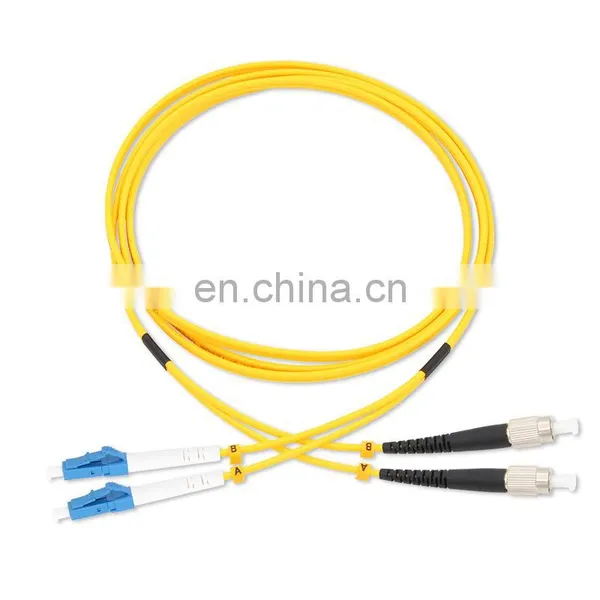

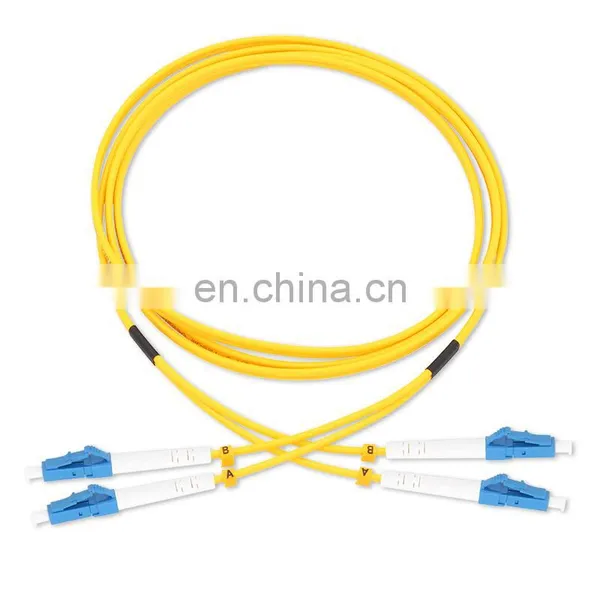

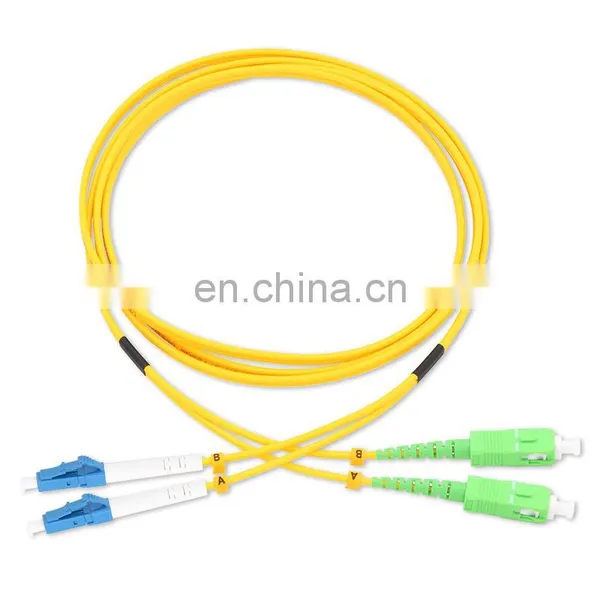

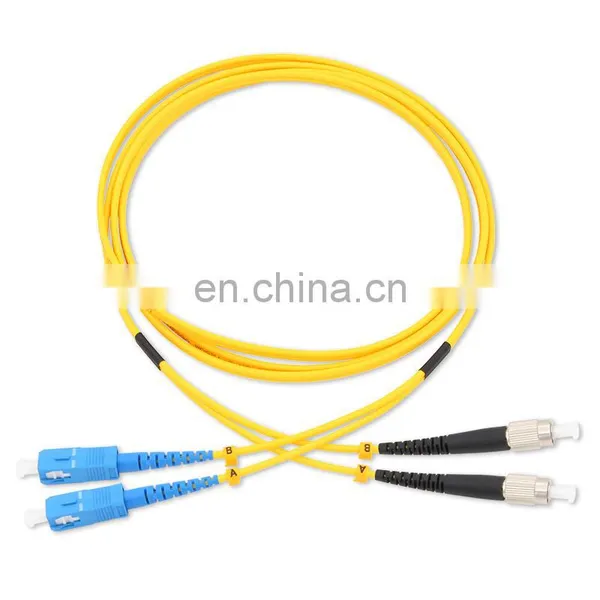

LC SC SM Duplex 2.0mm 3.0mm OS2 Single mode G652D G657A fiber patch cords PVC/LSZH
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- LC/SC/FC/ST 12-color SM MM OM1/OM2/OM3/OM4 fiber pigtails
- MPO/MTP to LC SM 12 core 3m mpo fiber optic patch cords
- OM4 100G MPO MTP Fiber Optic Patch cord 8/12 fibers
- 8/12-fiber MTP MPO-LC Om3 Om4 Multi-Mode breakout fiber patch cord
- OEM service pigtail LC PC/UPC/APC SM 9/125 G657A / G652D fiber pigtail-0.9mm PVC/LSZH
- SC/FC/LC/ST/MU/mpo sx/dx fiber optic patchcord
Product Description
Product Description
SC UPC to SC UPC simplex 2.0mm LSZH 9/125um single mode fiber patch cable
Application
Gigabit Ethernet
Active device termination
Telecommunication networks
Video
Multimedia
Premise installations
Local area networks
FTTH and FTTX applications
CATV
Features
Good exchangeability
Good Durability
High temperature stability.
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Specification
Mode | SM | MM | |||
Polish | UPC | APC | PC | ||
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |||
Return Loss | ≥50dB | ≥65dB | ≥35dB | ||
Interchangeability | ≤0.2dB | ||||
Durability | ≤0.2dB (1000 times) | ||||
Repeatability | ≤0.1dB | ||||
Vibration | ≤0.2dB (550Hz 1.5mm) | ||||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||||
Apex Offset | 0μm ~ 50μm | ||||
Radius of Curvature | 7mm ~ 25mm |
Boot (cable size) | Cable Color | Fiber Type | Cable number | Ferrule | Length |
0.9mm 2.0mm 3.0mm | Yellow Orange Aqua Violet/Rose Green | 9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 | Simplex Duplex Multi-fiber | PC APC | Customized |
How to choose the cable jacket: PVC, LSZH or OFNP?
Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
The features of PVC, LSZH and OFNP Jacket are as follows:
PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
LSZH cable has a special flam-retardant coating, it is between floors in a building.
OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs beween floors.
How to Choose The Cable Type on OM3 or OM4?
★ OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
★ The effective modal bandwidth for OM4 is more than double that of OM3.
★ For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
