Field Assembly FTTH LC/APC Single-mode Fiber Optic Fast Connector
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description

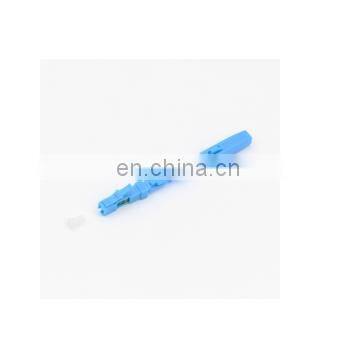

Rollball LC/APC Single-mode fiber optic fast connector
Description
Quick connector is a good solution to field wiring and fiber-to-the home engineering connector. Assembly without glue, grinding and electrical tools, is widely used in construction section, the place need to quickly connect, to provide a fast and stable connector for the operation. It adopts the latest fiber formed technology. All the optical and mechanical index meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional splice opinion, offer the powerfull support for FTTx.
Features
• Compatible with both 3mm drop cable and 3x2mm flat cable
• Fast and easy installation (within 90s)
• Adopted fiber pre-installed structure.
• Low insertion loss. High return loss.
• Pressing position use newly special structure design, without infusion, grind and waste material.
• Use embedded fiber type structure, ensuring the high installation quality, success rate and quick installation.
• Easy for assembling with mechanical splice and no polishing
• Minimize the defect rate by features of removal and reusable.
Application
• Fiber Patch panel
• Distribution Frame
• FTTH
• Fiber-optic network equipment
• Cable television network
Specifications
| Applicable for | 3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
| Optical fiber diameter | φ125um (657A&657B) |
| Tight buffer diameter | φ250um |
| Fiber mode | Single & multi mode |
| Connector type | LC/SC, UPC/APC optional |
| Operation time | Within 90s (no fiber cut) |
| Insert loss | ≤0.3dB (850nm &1310nm & 1550nm) |
| Return loss | ≥45dB |
| Fastening strength of naked fiber | ≥ 5N |
| Tight clamping force cladding | ≥ 8N |
| Tensile strength | ≥ 50N |
| Using temperature | -45°C~+80°C |
