Product Description

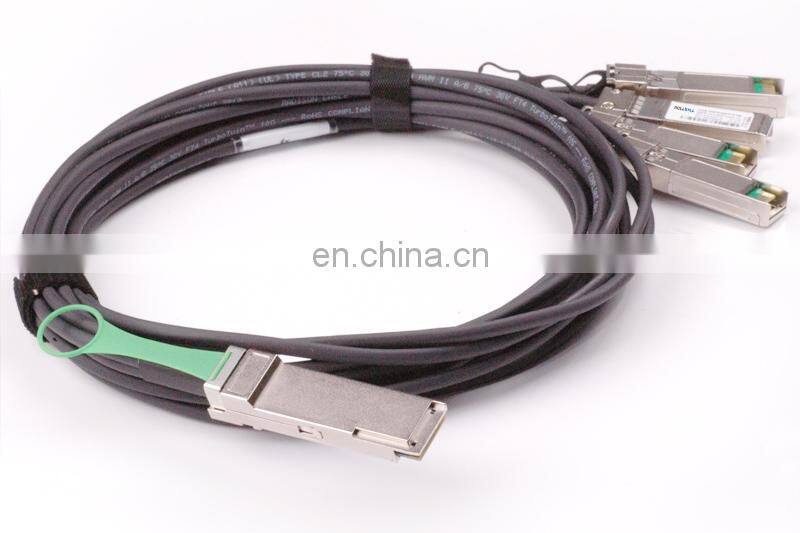

10G 40G SFP+ QSFP+ copper patch cord
Features
- Maximum aggregate data rate: 41.25Gbps (4x 10.3125Gbit/s)
- Hybrid cable link length up to 5m
- High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
- Compliant with SFP MSA and SFF-8472
- Compliant to QSFP+ MSA and SFP+ MSA
- RoHS Compliant
- Power Supply: +3.3V
- Case operating temperature:
- Commercial: 0 ℃ to 70 ℃
- RoHS Compatible
Application
- Storage Area Networks
- Switches and routers
- Data center cabling infrastructure
- High density connections between networking equipment
Product Description
The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cast and reduced power budget.
The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.
Ordering information
Part Number | Product Description |
RSFPP-10G-CU1M | SFP+ Direct Attach Passive Cable (10GSFP+Cu), 1m, AWG:30, 0ºC ~ +70ºC |
RSFPP-10G-CU3M | SFP+ Direct Attach Passive Cable (10GSFP+Cu), 3m, AWG:26,0ºC ~ +70ºC |
RSFPP-10G-CU5M | SFP+ Direct Attach Passive Cable (10GSFP+Cu), 5m, AWG:24,0ºC ~ +70ºC |

Note: You can be customized diameter and distance.
- Quality system of ISO900,CE,FCC,ROHS registration
- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
