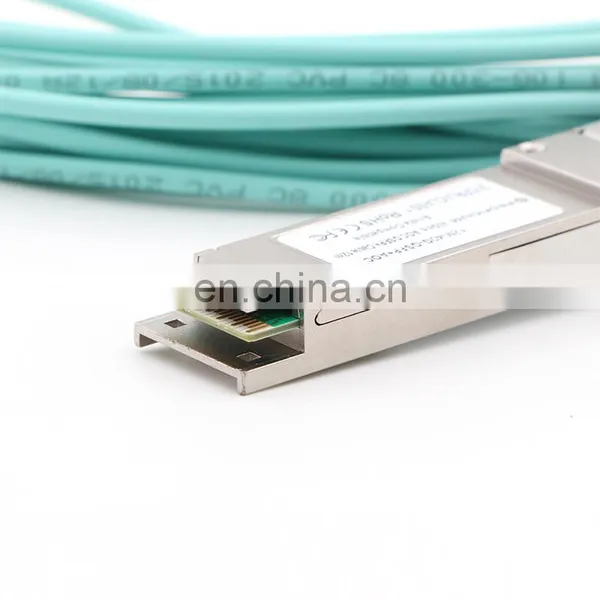

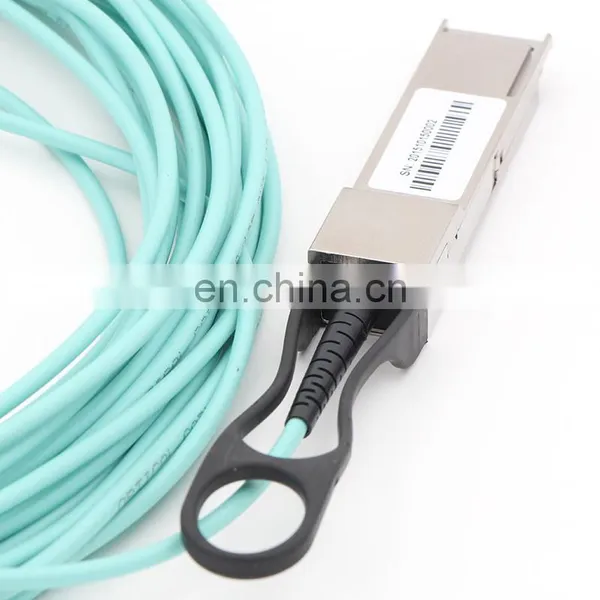

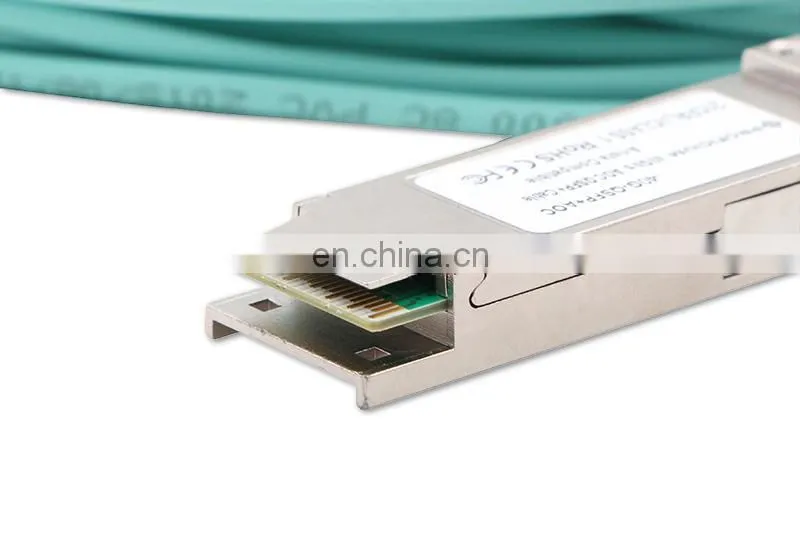

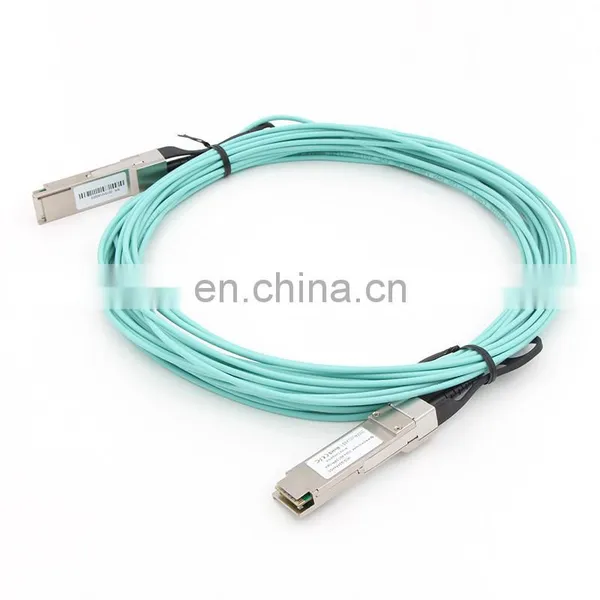

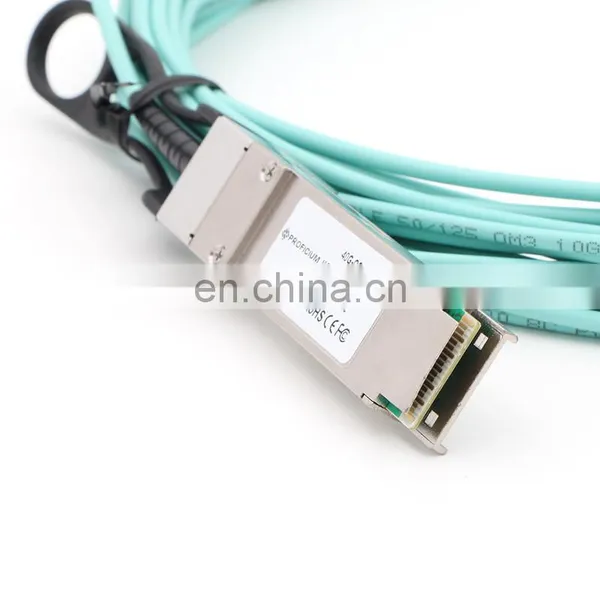

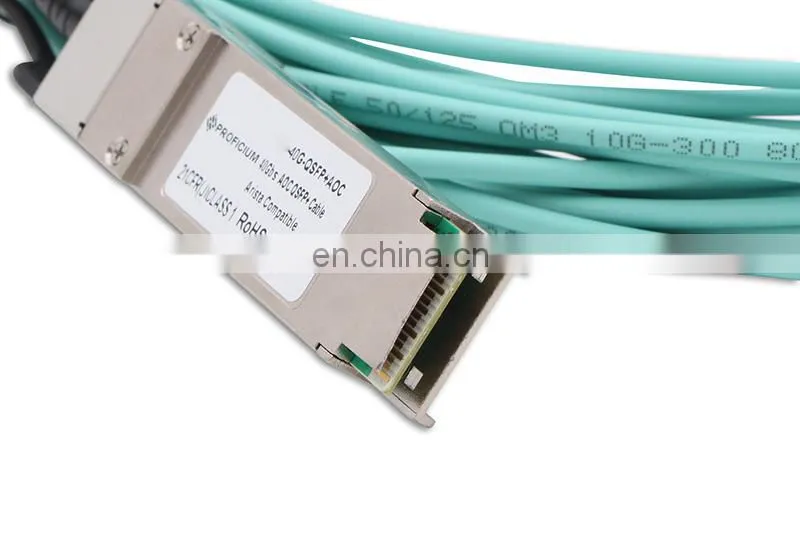

QSFP-40G-AOC 40G QSFP+ to QSFP+ Active Optical Cable
Product description
- Rollball’s QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. The Olink QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. The Olink QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Features
- Four-channel full-duplex active optical cable
- Transmission data rate up to 11.3Gbit/s per channel
- Reliable VCSEL array technology using multimode fiber
- Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
- Low power consumption <1.5W
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
Applications
- Infiniband QDR/DDR/SDR
- Datacenter
- 40G Ethernet
- 4G/8G/10G Fibre Channel
Specification
Optical characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
|
|
Unit |
Values |
|
Operating Reach |
m |
10K |
|
Transmit |
||
|
Center wavelength (range) |
nm |
1260 -1355 |
|
Side Mode Suppression Ratio (min) |
dB |
30 |
|
Launched power |
||
|
– maximum |
dBm |
+0.5 |
|
– minimum |
dBm |
-8.2 Notes1 |
|
- OMA |
dBm |
-5.2 |
|
- OMA-TDP (min) |
dBm |
-6.2 |
|
Transmitter and dispersion penalty |
dB |
0 Notes4 |
|
Average launch power of OFF transmitter (max) |
dBm |
-30 |
|
Extinction ratio (min) |
dB |
3.5 Notes2 |
|
RIN12 OMA (max) |
dB/Hz |
-128 |
|
Optical Return Loss Tolerance (min) |
dB |
12 |
|
Receiver |
||
|
Center wavelength (range) |
nm |
1260-1355 |
|
Receive overload (max) in average power1 |
dBm |
0.5 |
|
Receive sensitivity (min) in average power1 |
dBm |
-14.4 Notes3 |
|
Receiver sensitivity (max) in OMA (footnote 2) |
dBm |
-12.6 Notes3 |
|
Receiver Reflectance (max) |
dB |
-12 |
|
Stressed receiver sensitivity (max) in OMA2 |
dBm |
-10.3 |
|
Vertical eye closure penalty (min)3 |
dB |
2.2 |
|
Stressed eye jitter (min)2 |
UIp-p |
0.7 |
|
Receive electrical 3dB upper cutoff frequency (max) |
GHz |
12.3 |
|
Receiver power (damage, Max) |
dBm |
1.5 |
Order information
| P/N | Parameters |
|
RQSFP-40G-AOC1M |
QSFP-40G AOC-1m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
|
RQSFP-40G-AOC2M |
QSFP-40G AOC-2m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
|
RQSFP-40G-AOC3M |
QSFP-40G AOC-3m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
Note: customer can customize the cable length and label.
- Quality system of ISO900,CE,FCC,ROHS registration
- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
