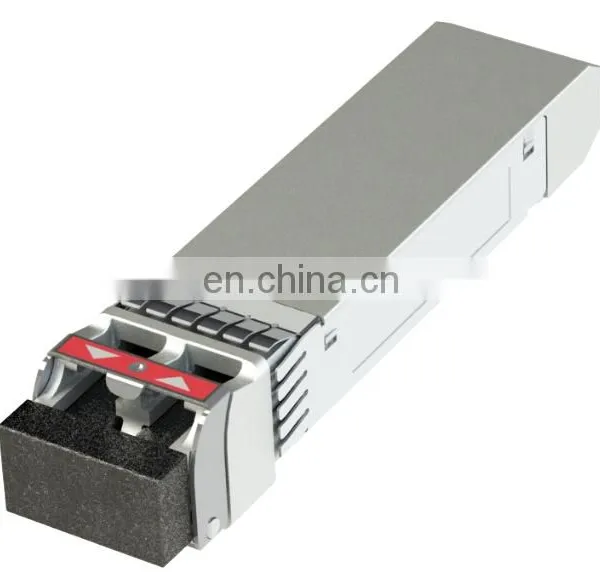

 25G SFP28 DWDM 20km Transceiver RDSFP28-XX25G-L2D

Product description

Rollball’s RDSFP28-XX25G-L2D 25Gb/s DWDM SFP28 transceiver is designed for use in 25-Gigabit Ethernet links up to 20km over single mode fiber. The module consists of DWDM EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.

The module optical connection is duplex LC and shall be compatible with SFP+ 28Gbps and backward compatible with legacy 10G SFP+ pluggable. The SFP28 DWDM LR module is a dual directional device with a transmitter and receiver plus a control management interface (2-wire interface) in the same physical package. 2-wire interface is used for serial ID, digital diagnostics and module control function.

The transmitter converts 25Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 25GBASE-LR standard.  An open collector compatible Transmit Disable (Tx_Dis) is provided.  Logic “1” or no connection on this pin will disable the laser from transmitting.  Logic “0” on this pin provides normal operation.

Features:

• Up to 25.78Gb/s data links
• DWDM EML transmitter and APD receiver
• 100 GHz ITU channel spacing with integrated wavelength locker
• Up to 20km on 9/125um SMF
• Hot-pluggable SFP28 footprint
• Support Digital Diagnostic Monitoring interface
• Duplex LC/UPC type pluggable optical interface
• RoHS-10 compliant and lead-free
• With CDR function
• Single +3.3V power supply
• Compliant with SFF+MSA and SFF-8472
• Metal enclosure, for lower EMI
• Meet ESD requirements, resist 8KV direct contact voltage
• Case operating temperature

Commercial: 0 ~ +70^oC

Extended: -10 ~ +80^oC

Industrial: -40 ~ +85^oC

Application:

• High-speed storage area networks
• Computer cluster cross-connect
• Custom high-speed data pipes
• Inter Rack Connection
• Other Optical Links

Wavelength Selection: C-band λc Wavelength Guide Pin Descriptions
