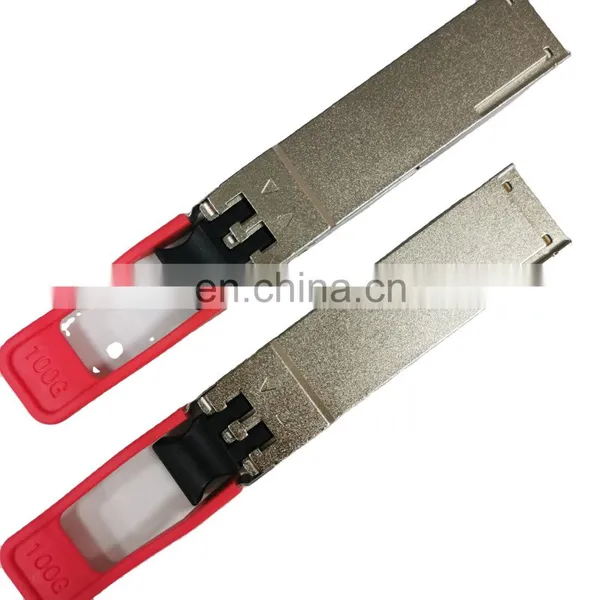

100G QSFP28 ER4 SMF 1310nm 30km duplex LC DOM module
- 1000 per Month
- T/T Credit Card
- 100G QSFP28 LR4 1310nm 10km duplex LC DOM module
- 100Gb/s QSFP28 CWDM4 2km QSFP28 CLR4 Optical Transceiver
- 25Gb/s SFP28 SR MMF 850nm 100m LC DDM Module
- 1.25G DWDM SFP 80km 100GHz ITU Grid LC DDM modules
- 1000Base-Bx BIDI SFP 1.25G 80km SMF simplex LC DDM Module
- Industrial grade 1.25G CWDM SFP 1270-1610nm 80km 100km 120km
Product Description
100G qsfp28 ER4 1310nm 30km 40km Optical Transceiver
1. PRODUCT FEATURES
Hot pluggable QSFP28 MSA form factor
Compliant to Ethernet 100GBASE-ER4 Lite
Up to 25km reach for G.652 SMF without FEC
Up to 32km reach for G.652 SMF with FEC
Single +3.3V power supply
Operating case temperature: 0~70oC
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s APD ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 5.0W
Duplex LC receptacle
RoHS-6 compliant
Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
2.Applications
· 100GBASE-ER4 Ethernet Links
· Infiniband QDR and DDR interconnects
· Client-side 100G Telecom connections
3. Description
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to Ethernet 100GBASE-ER4 Lite standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 25km links without FEC and 32km links with FEC.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Part Number |
Description |
QSFP+ 4*26G 30km, 0~70℃, with DDM |
Related 100G Optical transceivers list
CFP4
For STANDARD
Application Item No Description
Standard RB-CFP4-LR4 CFP4, 103/112 Gbps, 1310nm, SM, DDM, 6.3dB, 10km, LC
