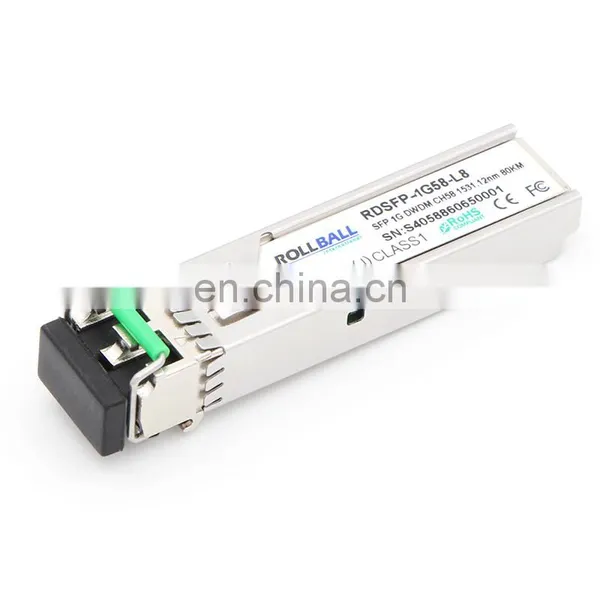

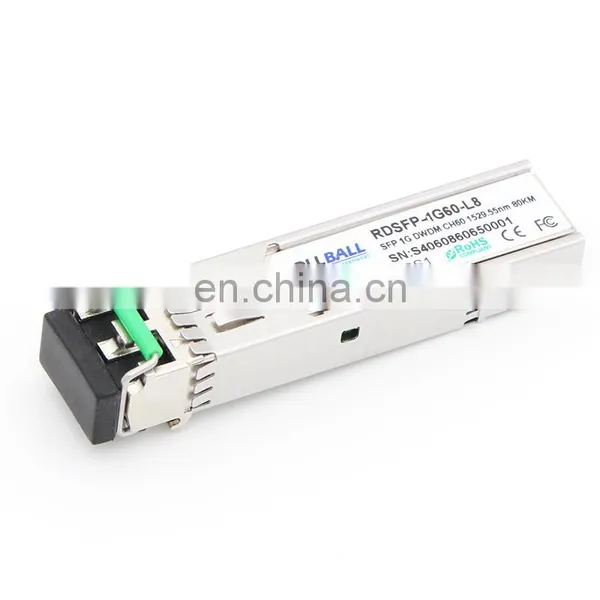

1.25G DWDM SFP 80km LC Dual DDM Module
Description
RDSFP-24XX-L8D 1.25G DWDM SFP Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and SFF-8472. The transceiver consists of two sections: The transmitter section incorporates a colded DWDM DFB laser, And the receiver section consists of a PIN photodiode integrated with a TIA. The module data link up to 80KM in 9/125um single mode fiber. It offers a simple and convenient way to interface PCBs to single mode fiber optic cables in Dense Wavelength Division Multiplexing (DWDM) applications. It is a high performance, cost effective module for serial optical data communication applications.
Features
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- Duplex LC connector
- Up to 80km on 9/125μm SMF
- DWDM 100GHz ITU Grid C Band Available
- DWDM DFB laser transmitter
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Low power dissipation <1W typically
- Operating temperature range: -0°C to 70°C
- RoHS compliant and Lead Free
Applications
- Gigabit Ethernet
- 1×Fiber Channel
- DWDM Networks
Order Information
|
P/N |
Parameters |
|
RDSFP-24XX-L4D |
DWDM SFP-1G C17-C61, 40km |
|
RDSFP-24XX-L8D |
DWDM SFP-1G C17-C61, 80km |
DWDM Wavelength Guide
| ITU Channel | Wavelength | ITU Channel | Wavelength |
| 17 | 1563.86 | 40 | 1545.32 |
| 18 | 1563.05 | 41 | 1544.53 |
| 19 | 1562.23 | 42 | 1543.73 |
| 20 | 1561.42 | 43 | 1542.94 |
| 21 | 1560.61 | 44 | 1542.14 |
| 22 | 1559.79 | 45 | 1541.35 |
| 23 | 1558.98 | 46 | 1540.56 |
| 24 | 1558.17 | 47 | 1539.77 |
| 25 | 1557.36 | 48 | 1538.98 |
| 26 | 1556.55 | 49 | 1538.19 |
| 27 | 1555.75 | 50 | 1537.4 |
| 28 | 1554.94 | 51 | 1536.61 |
| 29 | 1554.13 | 52 | 1535.82 |
| 30 | 1553.33 | 53 | 1535.04 |
| 31 | 1552.52 | 54 | 1534.25 |
| 32 | 1551.72 | 55 | 1533.47 |
| 33 | 1550.92 | 56 | 1532.68 |
| 34 | 1550.12 | 57 | 1531.9 |
| 35 | 1549.32 | 58 | 1531.12 |
| 36 | 1548.51 | 59 | 1530.33 |
| 37 | 1547.72 | 60 | 1529.55 |
| 38 | 1546.92 | 61 | 1528.77 |
| 39 | 1546.12 |
