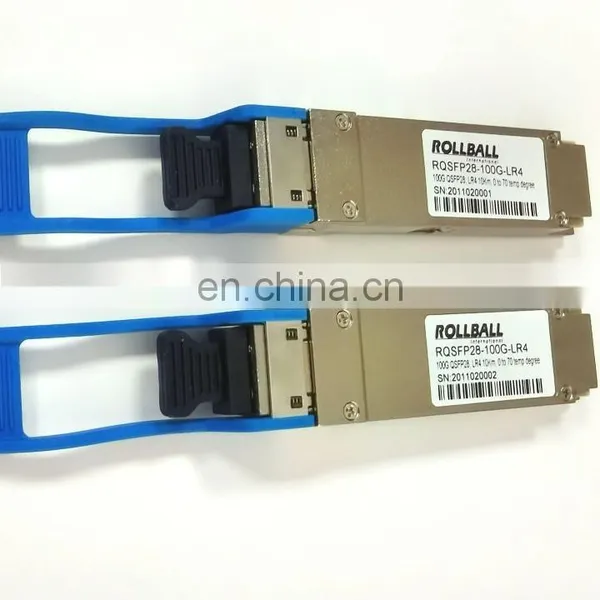

100G QSFP28 LR4 1310nm 10km Duplex LC DOM Module photo-1

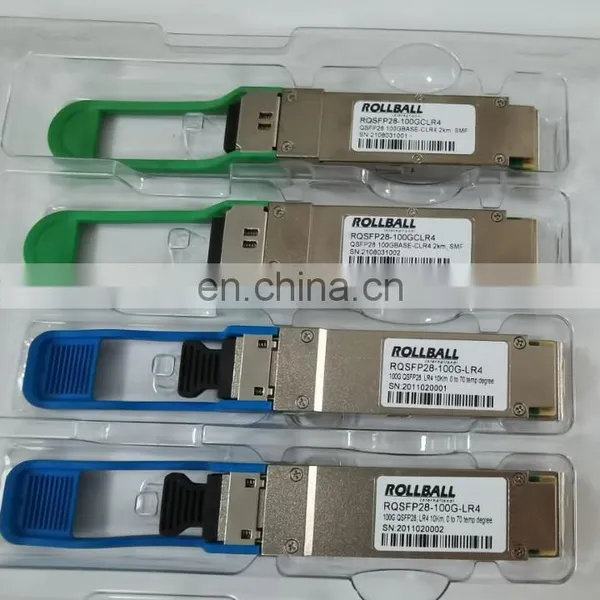

100G QSFP28 LR4 1310nm 10km Duplex LC DOM Module photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Shenzhen Rollball Comm-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

100G QSFP28 LR4 LWDM 1295-1310nm 10km Optical Transceiver



1. PRODUCT FEATURES

  • Supports 103.1Gbps bit rates
  • Duplex LC connector
  • Hot-pluggable QSFP28 form factor
  • 4x26Gb/s DFB-based LAN-WDM transmitter
  • 4x26G retimed electrical interface
  • Applicable for 10km SMF connection
  • Low power consumption, < 3.5W
  • Digital Diagnostic Monitor Interfacel
  • I2C management interface
  • Compliant with 100GBASE-LR4
  • Operating case temperature:

              Commerical:0 to 70 °C



2.Applications

  • 100GBASE-LR4 100G Ethernet
  • Other Optical link



3. Description

ROLLBALL’S RQSFP28-100G-LR4, QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR42 and IEEE 802.3bm. Digital diagnostic functions are available via the I2C interface.



Part Number

Description

RQSFP28-100G-LR4

QSFP+ 4*26G 10km, 0~70℃, with DDM





 Optical Characteristics (Top=0~70℃, Vcc=3.14~3.47V)



Parameter Symbol Unit Min Typ Max Notes
Transmitter
Signaling rate, each lane   Gb/s 25.78125 ±100 ppm 1
Four Lane Wavelength Range λ1 nm 1294.53 1295.56 1296.59
λ2 1299.02 1300.05 1301.09
λ3 1303.54 1304.58 1305.63
λ4 1308.09 1309.14 1310.19
Total launch power Pout dBm     10.5
Optical modulation amplitude, each lane (OMA) OMA dBm -1.3   4.5
Extinction ratio ER dB 4
Side-mode suppression ratio SMSR dB 30   -30
Relative Intensity Noise RIN dB/Hz
Average launch power of OFF POFF dBm     -130
transmitter, per lane
Optical return loss tolerance   dB     20
Transmitter reflectance   dB     –12
Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3}     {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} 3
Receiver
Receive Rate for Each Lane   Gb/s 25.78125 ±100 ppm 4
Four Lane Wavelength Range λ1 nm 1294.53 1295.56 1296.59
λ2 1299.02 1300.05 1301.09
λ3 1303.54 1304.58 1305.63
λ4 1308.09 1309.14 1310.19
Overload Input Optical Power Pmax dBm 5.5
Average Receive Power for Each Pin dBm -10.6   4.5 5,7
Lane
Receiver Sensitivity(OMA)per lane Psens1 dBm     -8.6
Stressed Sensitivity(OMA) per lane Psens2 dBm     -6.8 6
Return Loss RL dB -26
Receiver Electrical 3dB upper cutoff frequency, per lane   GHz     31
Los De-Assert Pd dBm     -11.6
Los Assert Pa dBm -13.6
Loss Hysteresis Pd-Pa dBm 1



Related 100G Optical transceivers list



 For STANDARD

  Item No                                Description

RQSFP28-100G-SR4             QSFP28, 4*26G, 850nm, MMF, MPO/MTP connector, DDM,100m

RQSFP28-100G-CLR4           QSFP28, CWDM4, SMF, Dual LC, DDM,100m

RQSFP28-100G-LR4              QSFP28, 4*26G, SMF, Dual LC, DDM,10km

RQSFP28-100G-ER4              QSFP28, 4*26G, SMF, Dual LC, DDM,30km



100G QSFP28 LR4 1310nm 10km duplex LC DOM module100G QSFP28 LR4 1310nm 10km duplex LC DOM module



 Shippment

 100G QSFP28 LR4 1310nm 10km duplex LC DOM module

100G QSFP28 LR4 1310nm 10km duplex LC DOM module
