ABS Box Type 1x16 Plc Optical Splitter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

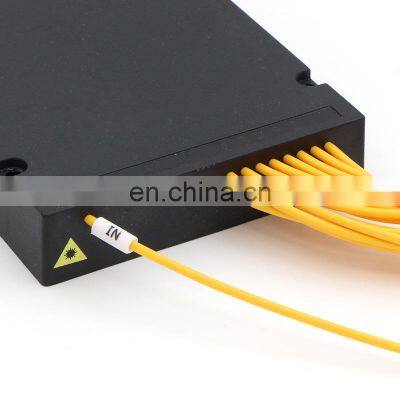

ABS Box type 1x16 plc optical splitter

1.Description

1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3).Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4).All products meet GR-1209-CORE and GR-1221-CORErequirements.

2.Feature

1).Low Insertion loss

2).Low PDL

3).Compact Design

4).Good channel-to-channel uniformity

5).Wide Operating Wavelength: 1260-1650nm

6).Wide Operating Temperature: -40°C - 85°C

7).High Reliability and Stability

3.Application

1).FTTX Systems

2).PON Networks

3).CATV Links

4).Optical Signal Distribution

4.Specification

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

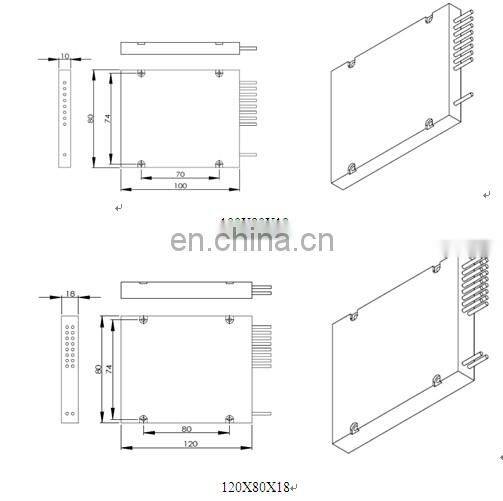

Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18

Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector

5.Product list

No.	Item	Spec
1	PLC Mini-module	1*2, In/output bare belt fiber
2	PLC Mini-module	1*4, In/output bare belt fiber
3	PLC Mini-module	1*8, In/output bare belt fiber
4	PLC Mini-module	1*16, In/output bare belt fiber
5	PLC Mini-module	1*32, In/output bare belt fiber
6	PLC Mini-module	1*64, In/output bare belt fiber
7	PLC Mini-module	2*2, In/output bare belt fiber
8	PLC Mini-module	2*4, In/output bare belt fiber
9	PLC Mini-module	2*8, In/output bare belt fiber
10	PLC Mini-module	2*16, In/output bare belt fiber
11	PLC Mini-module	2*32, In/output bare belt fiber
12	PLC Mini-module	2*64, In/output bare belt fiber
13	PLC ABS Box Module	1*2, In/output 2.0/3.0mm jacket fiber cable
14	PLC ABS Box Module	1*4, In/output 2.0/3.0mm jacket fiber cable
15	PLC ABS Box Module	1*8, In/output 2.0/3.0mm jacket fiber cable
16	PLC ABS Box Module	1*16, In/output 2.0/3.0mm jacket fiber cable
17	PLC ABS Box Module	1*32, In/output 2.0/3.0mm jacket fiber cable
18	PLC ABS Box Module	1*64, In/output 2.0/3.0mm jacket fiber cable
19	PLC ABS Box Module	2*2, In/output 2.0/3.0mm jacket fiber cable
20	PLC ABS Box Module	2*4, In/output 2.0/3.0mm jacket fiber cable
21	PLC ABS Box Module	2*8, In/output 2.0/3.0mm jacket fiber cable
22	PLC ABS Box Module	2*16, In/output 2.0/3.0mm jacket fiber cable
23	PLC ABS Box Module	2*32, In/output 2.0/3.0mm jacket fiber cable
24	PLC ABS Box Module	2*64, In/output 2.0/3.0mm jacket fiber cable
25	PLC ABS Box Module	1*2, In/output 2.0/3.0mm jacket fiber cable
26	PLC ABS Box Module	1*4, In/output 2.0/3.0mm jacket fiber cable
27	PLC ABS Box Module	1*8, In/output 2.0/3.0mm jacket fiber cable
28	PLC ABS Box Module	1*16, In/output 2.0/3.0mm jacket fiber cable
29	PLC ABS Box Module	1*32, In/output 2.0/3.0mm jacket fiber cable
30	PLC ABS Box Module	1*64, In/output 2.0/3.0mm jacket fiber cable
31	PLC ABS Box Module	2*2, In/output 2.0/3.0mm jacket fiber cable
32	PLC ABS Box Module	2*4, In/output 2.0/3.0mm jacket fiber cable
33	PLC ABS Box Module	2*8, In/output 2.0/3.0mm jacket fiber cable
34	PLC ABS Box Module	2*16, In/output 2.0/3.0mm jacket fiber cable
35	PLC ABS Box Module	2*32, In/output 2.0/3.0mm jacket fiber cable
36	PLC ABS Box Module	2*64, In/output 2.0/3.0mm jacket fiber cable
13	PLC Rack mount box	1*2, 19" rack mount box, SC/LC port
14	PLC Rack mount box	1*4, 19" rack mount box, SC/LC port
15	PLC Rack mount box	1*8, 19" rack mount box, SC/LC port
16	PLC Rack mount box	1*16, 19" rack mount box, SC/LC port
17	PLC Rack mount box	1*32, 19" rack mount box, SC/LC port
18	PLC Rack mount box	1*64, 19" rack mount box, SC/LC port
19	PLC Rack mount box	2*2, 19" rack mount box, SC/LC port
20	PLC Rack mount box	2*4, 19" rack mount box, SC/LC port
21	PLC Rack mount box	2*8, 19" rack mount box, SC/LC port
22	PLC Rack mount box	2*16, 19" rack mount box, SC/LC port
23	PLC Rack mount box	2*32, 19" rack mount box, SC/LC port
24	PLC Rack mount box	2*64, 19" rack mount box, SC/LC port
25	PLC Rack mount box	1*2, 19" rack mount box, SC/LC port
26	PLC Rack mount box	1*4, 19" rack mount box, SC/LC port
27	PLC Rack mount box	1*8, 19" rack mount box, SC/LC port
28	PLC Rack mount box	1*16, 19" rack mount box, SC/LC port
29	PLC Rack mount box	1*32, 19" rack mount box, SC/LC port
30	PLC Rack mount box	1*64, 19" rack mount box, SC/LC port
31	PLC Rack mount box	2*2, 19" rack mount box, SC/LC port
32	PLC Rack mount box	2*4, 19" rack mount box, SC/LC port
33	PLC Rack mount box	2*8, 19" rack mount box, SC/LC port
34	PLC Rack mount box	2*16, 19" rack mount box, SC/LC port
35	PLC Rack mount box	2*32, 19" rack mount box, SC/LC port
36	PLC Rack mount box	2*64, 19" rack mount box, SC/LC port
