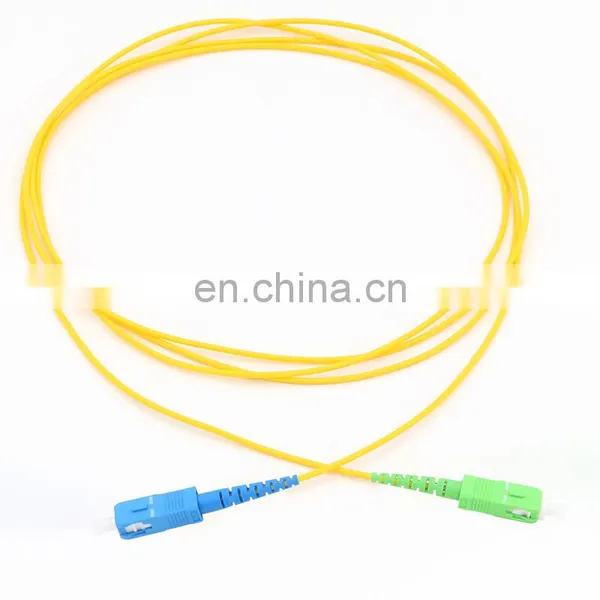

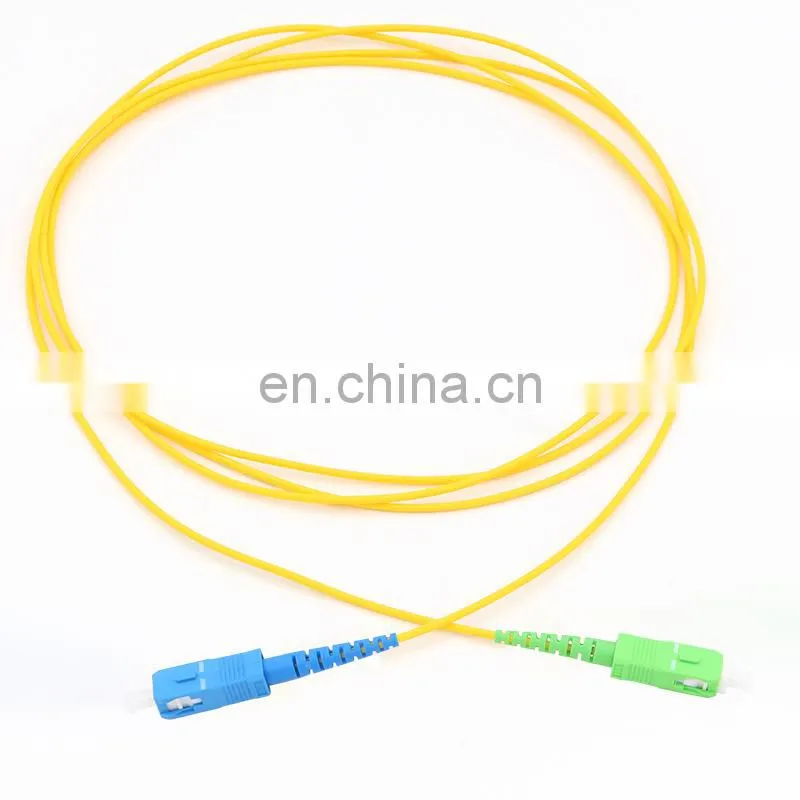

SC/UPC-SC/APC Singlemode Simplex 9/125 outdoor fiber optic patch cord / jumper
Application
1. Gigabit Etherenet
2. Active dvice termination
3. Telecommunication networks
4. Vidio
5. Multimedia
6. Industrial
7. Military
8. Premise installations.
Feature
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability.
Standard: Telcordia GR-326-CORE
Specification
Mode |
SM |
MM |
|
Polish |
UPC |
APC |
PC |
Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
|
Return Loss |
≥50dB |
≥65dB |
≥35dB |
Interchangeability |
≤0.2dB |
||
Repeatability |
≤0.1dB |
||
Durability |
≤0.2dB (1000 times mating) |
||
Tensile strength |
> 10kg |
||
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
Ordering options
Boot (cable size) |
Cable Color |
Fiber Type |
Cable number |
Ferrule |
Length |
|
0.9mm 2.0mm 3.0mm |
Yellow Orange Aqua Violet Rose Green
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
PC APC |
Customized |
Rollball International Co.,Ltd, specialized in providing high performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industry worldwide. With more than 10 years of industry experience, Rollball brand products have covered all areas of fiber optic transmission, International sales steadily, the products are exported to more than 200 countries and regions.
- Quality system of ISO900,CE,FCC,ROHS registration
- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
