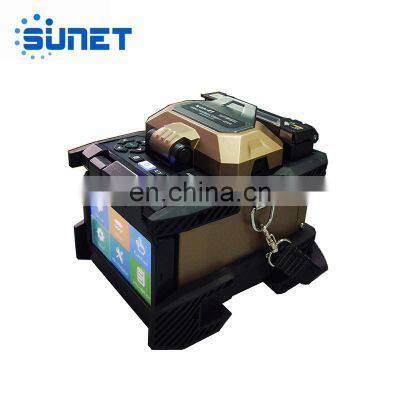

Hot Sale FTTH Equipment AV6481 Six Motors signal fire fusion splicer splicing machine AV6481 fusion splicer
- 1000 per Month
- T/T Credit Card
- LC/FC/SC otdr Dead Zone Eliminator Fiber Jumper Box OTDR Test Extension Cord OTDR Cable Launch Box
- Hot Sale Fiber Optic Tool Kit for FTTH Solution
- 0.8m Event dead zone SM MM OTDR 1310/1550/1625nm 38/35/36dB Ftth Testers & tools
- FTTH Fiber Optic Cleaner FTTX Tool One Click Cleaner SC LC Connector Fiber Optic Cleaning Pen
- FTTH Fiber Optic Tool Kit with Optical Power Meter and Visual Fault Locator and FC-6s Fiber Cleaver
- High Quality FTTH Fiber Cleaver and Optical Power Meter and Visual Fault Locator Optical Fiber Optic Tool kit
Product Description
Description
Obtaining 16 patens of invention and 58 technical innovations, a brand-new product-AV6481 Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers. AV6481 implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with AV6471, our star product, AV6481 lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.
Feature
1.Precise fiber core alignment, ultra-low fiber fusion splicing consumption
2. 7s fast fusion splicing, 18s highly efficient heating.
3. 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
4. 300 groups of fusion splicing modes, 100 groups of heating modes
5. 10000 groups of fusion records, 64 images storage
6. Ceramic presser foot, ceramic V-block, all-in-one fixture
7. Dual-direction splicing, automatic splicing, intelligent pyrocondensation
8. USB and SD card interfaces, U-disk automatic software upgrade
9. Built-in modular lithium battery, supports 220 times of splicing and heating cycles
Application
1.FTTH FTTB FTTX Network
Specification
Model |
AV6481 |
Alignment method |
Precise core alignment and cladding alignment |
Applicable fibers |
Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657. |
Optical fiber diameter |
Cladding:80~150μm, coating layer: 0.1~3mm |
Cutting length |
5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical fiber diameter:0.25~3mm) |
Fusion splicing consum ption(typical value) |
0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF) |
Return loss |
Better than 60dB |
Fusion splicing time (typical value) |
7s |
Heating time (typical value) |
18s |
Pulling force test |
1.96~2.25N |
Thermal shrinkage tube |
60mm, 40mm and a series of thermal shrinkage tubes |
Graphical display |
High-performance 4.3 inch LCD |
Magnification time |
320 times/88 times |
Fusion splicing record |
10000 groups |
Battery capacity |
11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220 times |
Battery service life |
Cycle charging times reach 300~500, can be replaced by customers |
Electrode service life |
Typical value is 4000 times, can be replaced by customers |
Construction lighting |
Built-in lights with high-brightness and wide lighting area |
Working environment |
Temp:-10~50ºC;hum: 0~95%RH,height above sea level:0~6000m |
Operation interfaces |
GUI graphical operation interfaces |
External power |
AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V |
External port |
USB / SD |
Dimensions |
120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad) |
Weight |
1.59kg(host engine),0.37kg(battery) |
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contactus from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts formultile container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Qingdao, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will
check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery.Well show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8. ExW, FOB, CFR,CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
