Outdoor Aeriel Drop FTTH 2/4/6/8/12 Core Optic Fiber Cable
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Outdoor GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop
-
FIBER OPTIC 1 2 4 CORE 1km 2km Plywood Drum FTTH DROP CABLE SINGLE MODE INDOOR FIBER OPTIC CABLE
-
G657A G652D LSZH GJYXCH GJYFXCH Tight Buffer 1 Core 2 Core FTTH Drop Cable / 2 Core Fiber Optic Cable
-
Ftth Cable Price 1 Core 2 Core Single Mode Outdoor Indoor Gjxh Gjyxfch G652d G657A1 A2 Fiber Optic Ftth Drop Cable
-
Factory Price G657 G657A G657A1 G657A2 Fiber Optical Cable Drop Cable FTTH
-
1 2 4 Core Factory Price G652d G657a Self Supporting Single Mode GYFTY FTTH Indoor Outdoor Fiber Optic Drop Cable
Product Description

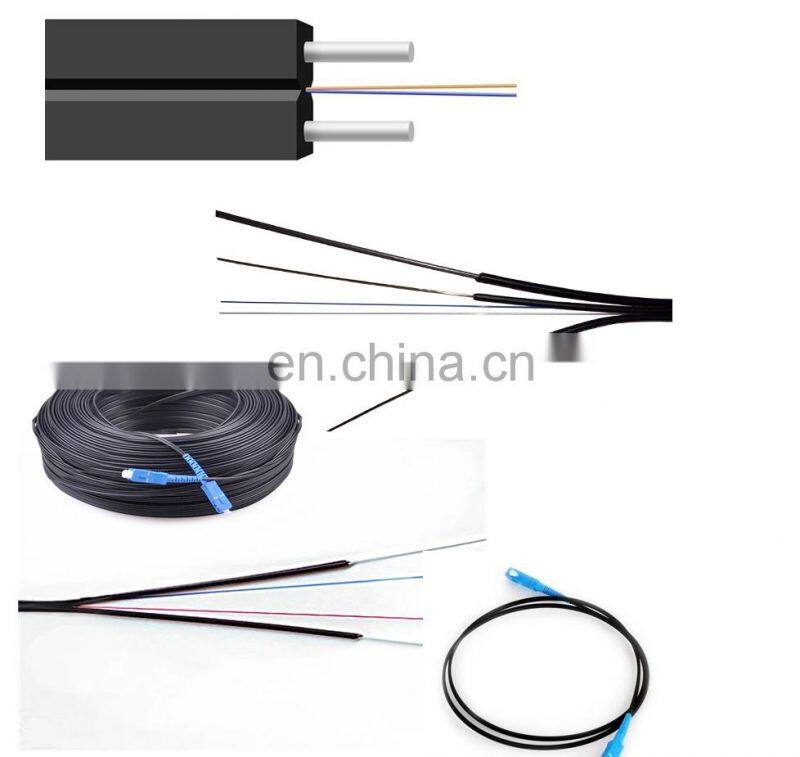

Outdoor aeriel drop FTTH 2/4/6/8/12 core Optic fiber cable
Description:
FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables, and it's ideal for indoor cabling, end users directly cabling, and access network.

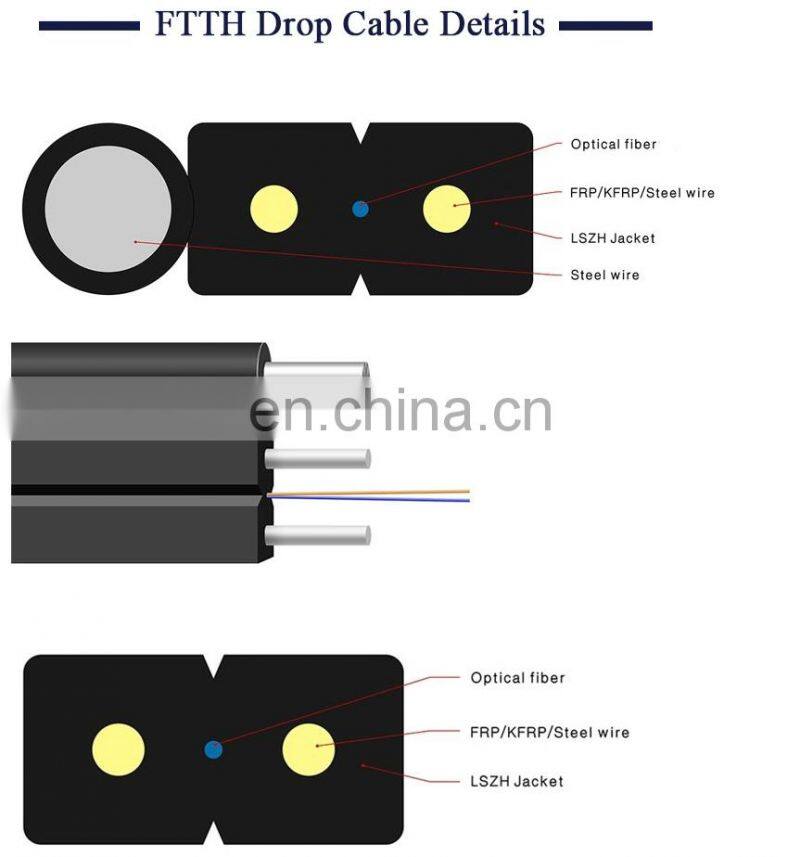

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ).The cable is protected by a dielectric strength member, suitable for direct aerial installationinto the houses in FTTH projects.
Feature:
Indoor Drop Cable
•Same function of the common indoor fiber cables.
•Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.
Outdoor Drop Cable
- Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.
- Meet the requirement of thunder-proof, anti-rodent or waterproof.
- Good to use for fiber to the home last mile solution.
| Cable type | OD (mm) |
Nominal Weight (kg/km) | Tensile Strength (N) |
Crush Resistance (N/100MM) |
Bending Radius (mm) |
|||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJXFH-1Xn | (2.0±0.1)*(3.0±0.1) | 7. 5 | 200 | 100 | 1000 | 500 | 20D | 15D |
| GJXFH-2Xn | (2.0±0.1)*(3.0±0.1) | 7. 5 | 200 | 100 | 1000 | 500 | 20D | 15D |
| GJXFH-3Xn | (2.0±0.1)*(3.0±0.1) | 7. 5 | 200 | 100 | 1000 | 500 | 20D | 15D |
| GJXFH-4Xn | (2.0±0.1)*(3.0±0.1) | 7. 5 | 200 | 100 | 1000 | 500 | 20D | 15D |
| Storage/Working temperature (°C) | -20-60 | |||||||
Cable type |
OD(mm) |
Nominal Weight (kg/km) |
Tensile Strength (N) |
Crush Resistance (N/100MM) |
Bending Radius (mm) |
|||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJYXFH-1Xn | (2.0±0.1)*(6.2±0.3) | 23. 6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFH-2Xn | (2.0±0.1)*(6.2±0.3) | 23. 6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFH-3Xn | (2.0±0.1)*(6.2±0.3) | 23. 6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFH-4Xn | (2.0±0.1)*(6.2±0.3) | 23. 6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| Storage/Working temperature (°C) | -20~ + 60 | |||||||
