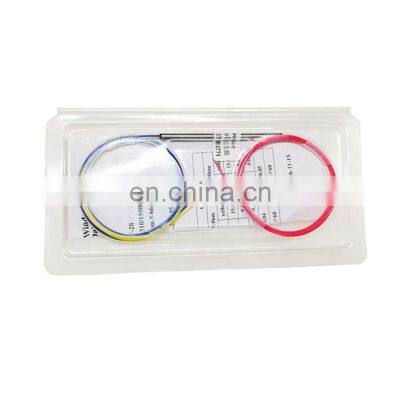

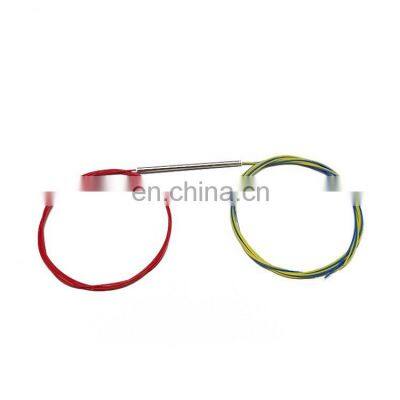

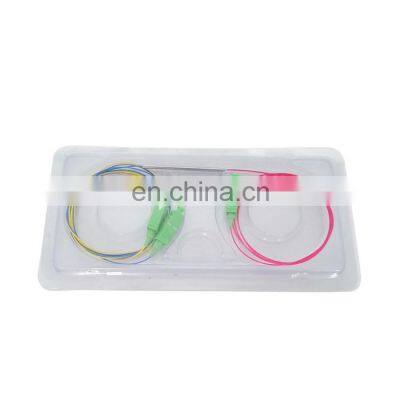

Single Window Mini Type Optical Splitter Fiber Optic Fbt Coupler Without Connector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 1*2 UPC Fbt Splitter CouplerNegotiableMOQ: 1 -
High Quality Single Mode Sc Optical Coupler Fbt Fiber Optic SplitterNegotiableMOQ: 1
-
Factory Supply Triple Dual Window 50/50 20/80 30/70 5/95 40/60 Splitting Ratio Mini Type Fiber Optic 1X2 2way Fbt CouplerNegotiableMOQ: 1
-
FTTH High Quality Sc Upc 1X2 Optical Fiber Splitter Fbt CouplerNegotiableMOQ: 1
-
50/50 20/80 Splitting Ratio Mini Type Fiber Optic 1X2 Fbt Coupler Value Splitter Coupler FBTNegotiableMOQ: 1
.1x2 Triple window Mini Type Steel Tube Type 0.9mm FBT coupler without connector
Product Description
Description
Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape Technology.It features small size, high reliability ,cheap cost and good channel-to-channel uniformity,and is widely used in PON networks to
realize optical signal power splitting.
SUNET provides whole series of 1xN and 2xN spliiter products that are tailored for specific applications .All products meet
GR-1209-CORE and GR-1221-CORE.
SUNET offers both tree and star type inline couplers /splitters.They provide a reliable solution to split/combine signals.The
splitting ratio ranges from 1x2 to 1x32 ports for tree couplers ,and from 2x2 to 2x32 for star couplers. Available in single,dual and triple wavelength windows(1310/1490/1550nm)
Feature
1.Low Excess loss
2.Low PDL
3.Environmentally stable
4.Good Thermal Stability
1.Low Excess loss
2.Low PDL
3.Environmentally stable
4.Good Thermal Stability
Application
1.Long-haul Telecommunications
2.CATV Systems & Fiber Optic Sensors
3.Local Area Network
Specification
Parameters | Specification | ||||||||||||||
Channel Number | 1x2 or2x2 | ||||||||||||||
Operating Wavelength (nm) | 1310,1550,1310/1550,1310/1550/1490 | ||||||||||||||
Operating Bandwidth(nm) | ±40 | ||||||||||||||
Coupling Ratio | Coupling Ratio Insertion Loss (dB) | ||||||||||||||
P Grade | A Grade | ||||||||||||||
50/50 | ≤3.3 | ≤3.5 | |||||||||||||
40/60 | ≤4.5/2.6 | ≤4.7/2.8 | |||||||||||||
30/70 | ≤5.7/1.9 | ≤5.9/2.1 | |||||||||||||
20/80 | ≤7.6/1.3 | ≤7.75/1.38 | |||||||||||||
10/90 | ≤10.85/0.68 | ≤11.2/0.75 | |||||||||||||
5/95 | ≤14.4/0.45 | ≤15.5/0.48 | |||||||||||||
2/98 | ≤18.5/0.6 | ≤19.8/0.38 | |||||||||||||
1/99 | ≤21.8/0.28 | ≤22.8/0.35 | |||||||||||||
PDL(dB) | ≤0.15 | ≤0.2 | |||||||||||||
Directivity(dB) | ≥50 | ||||||||||||||
Return Loss | ≥55 | ||||||||||||||
(1xN) | N=3 | N=4 | N=5 | N=8 | N=16 | N=24 | N=32 | N=64 | |||||||
Fiber Type | Corning SMF-28e | ||||||||||||||
IL (MAX) (dB) | 5.41/5.62 | 7.01/7.22 | 7.81/8.02 | 10.01/10.42 | 13.51/13.92 | 15.01/15.42 | 17.31/17.52 | 21.01/21.52 | |||||||
Uniformity (dB) | 0.51/0.62 | 0.51/0.62 | 0.61/0.82 | 0.81/1.02 | 1.11/1.32 | 1.21/1.52 | 1.31/1.52 | 2.11/2.52 | |||||||
Return Loss (dB) | ≥55 | ||||||||||||||
Directivity (dB) | ≥50 | ||||||||||||||
PDL (dB) | < 0.20 | < 0.20 | < 0.30 | < 0.30 | < 0.40 | < 0.50 | < 0.50 | < 0.20 | |||||||
Packing & Delivery

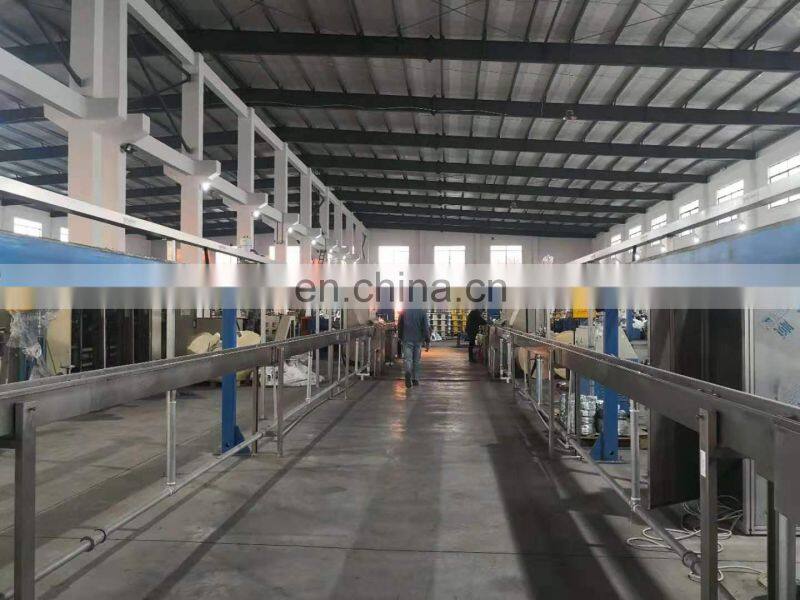

Company Profile
