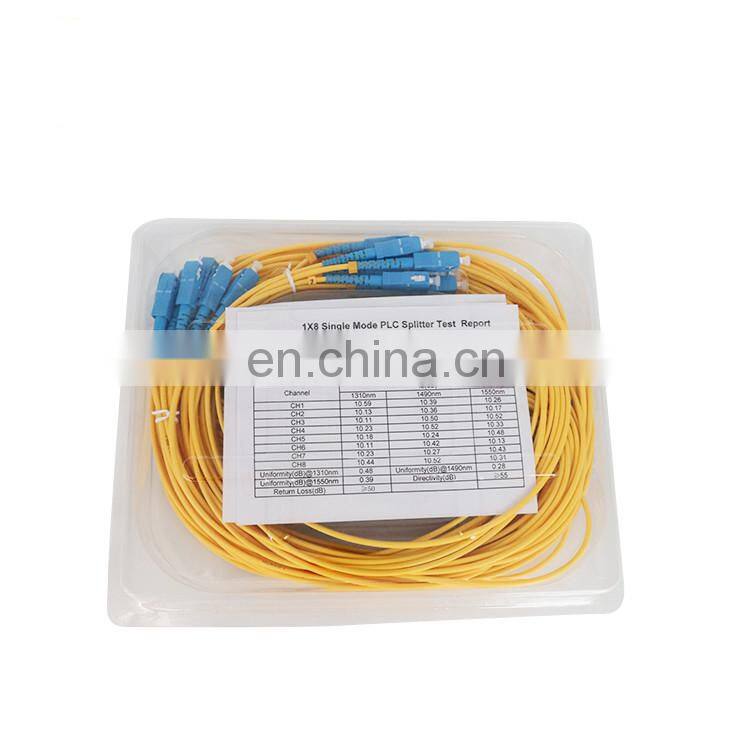

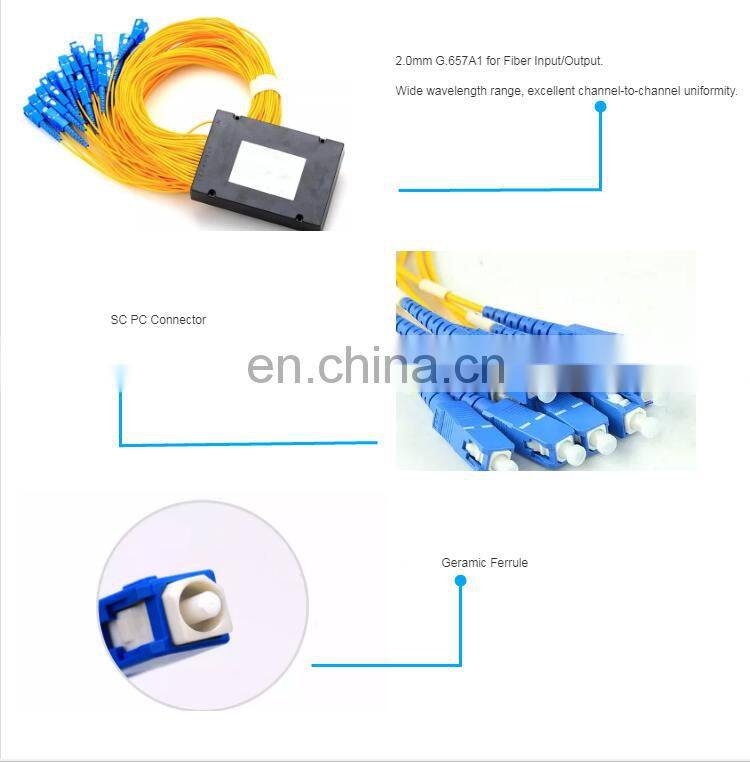

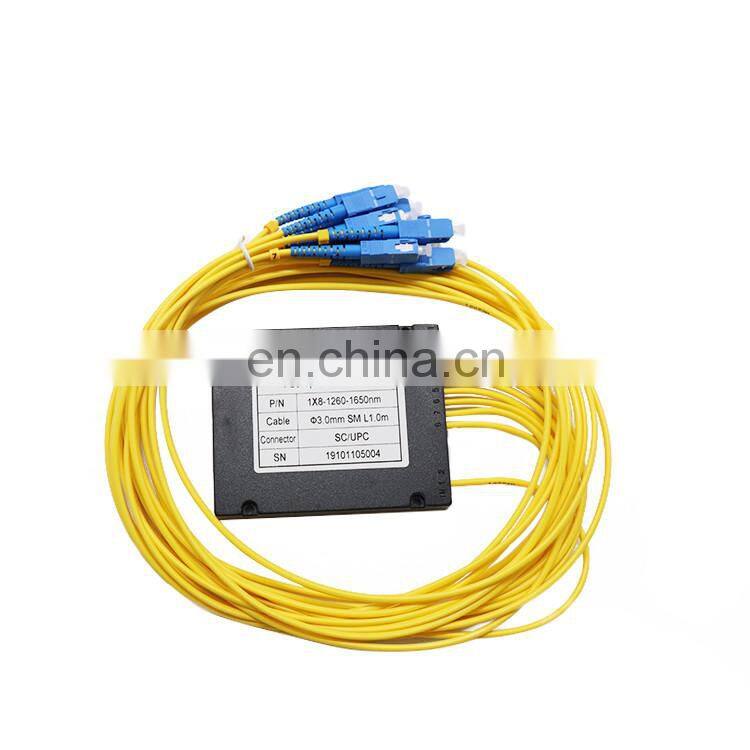

FTTH 1*8 SC UPC Fiber Optic Equipment Single Mode ABS Box Module Optical PLC Optic Splitter

FTTH 1*8 SC UPC Fiber Optic Equipment Single Mode ABS Box Module Optical PLC Optic Splitter photo-1
FTTH 1*8 SC UPC Fiber Optic Equipment Single Mode ABS Box Module Optical PLC Optic Splitter photo-2

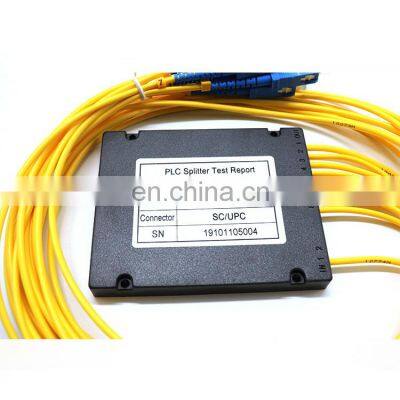

FTTH 1*8 SC UPC Fiber Optic Equipment Single Mode ABS Box Module Optical PLC Optic Splitter photo-3

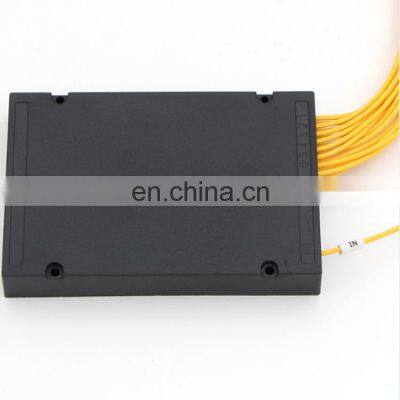

FTTH 1*8 SC UPC Fiber Optic Equipment Single Mode ABS Box Module Optical PLC Optic Splitter photo-4

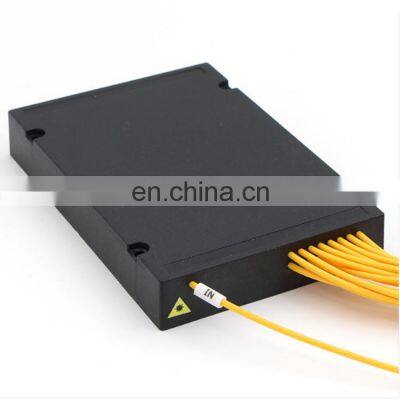

FTTH 1*8 SC UPC Fiber Optic Equipment Single Mode ABS Box Module Optical PLC Optic Splitter photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

FTTH 1*8 SC UPC Fiber Optic equipment Single Mode ABS box Module Optical PLC Optic SplitterFTTH 1*8 SC UPC Fiber Optic equipment Single Mode ABS box Module Optical PLC Optic SplitterFTTH 1*8 SC UPC Fiber Optic equipment Single Mode ABS box Module Optical PLC Optic SplitterFTTH 1*8 SC UPC Fiber Optic equipment Single Mode ABS box Module Optical PLC Optic SplitterFTTH 1*8 SC UPC Fiber Optic equipment Single Mode ABS box Module Optical PLC Optic Splitter

1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical

waveguide technology.

2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4).All products meet GR-1209-CORE and GR-1221-CORE requirements.





Parameter

Specification

Operating Wavelength (nm)

1260 ~ 1650

Type

1x4

1x8

1x16

2x4

2x8

2x16

1x32

2x32

1x64

Insertion Loss (dB) Max. *

<7.3

<10.5

<13.5

<7.6

<11.2

<14.5

<16.2

<18.2

<20.5

Uniformity (dB) Max.*

<0.8

<1.0

<1.5

<1.0

<1.5

<2.0

<2.0

<2.5

<2.5

PDL(dB)Max.*

<0.2

<0.2

<0.3

<0.3

<0.3

<0.4

<0.3

<0.4

<0.3

Directivity (dB)

≥55

Return Loss (dB)

UPC ≥55                   APC ≥60

Operating Temperature (°C)

-5~ +75

Storage Temperature (°C)

-40 ~ +85

Fiber length

1m or custom length

Fiber Type

Corning  SMF-28e fiber

Connector Type

Custom specified

Power Handling (mW)

300




Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
