Description

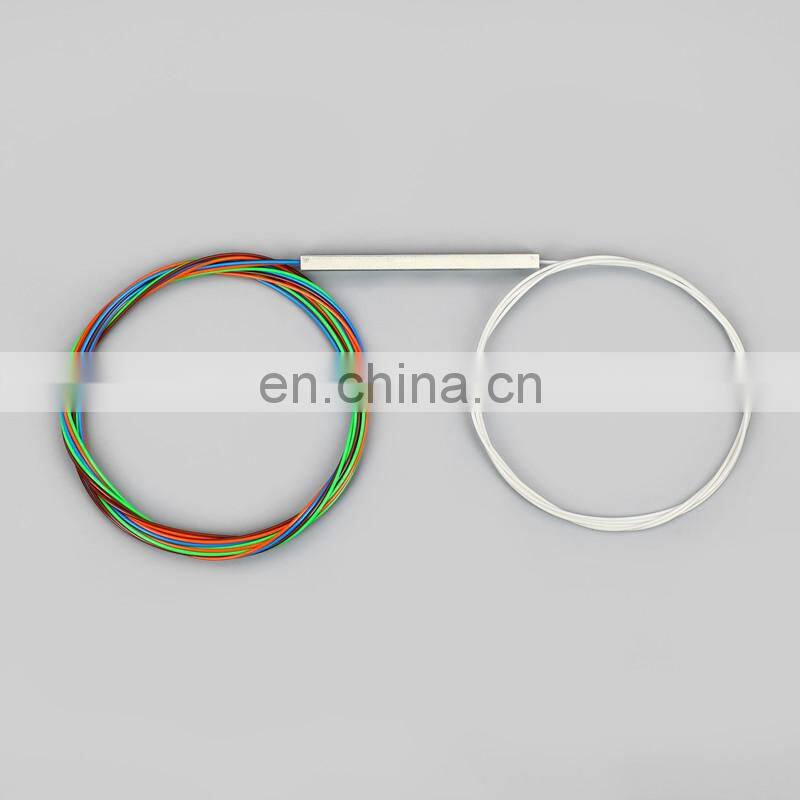

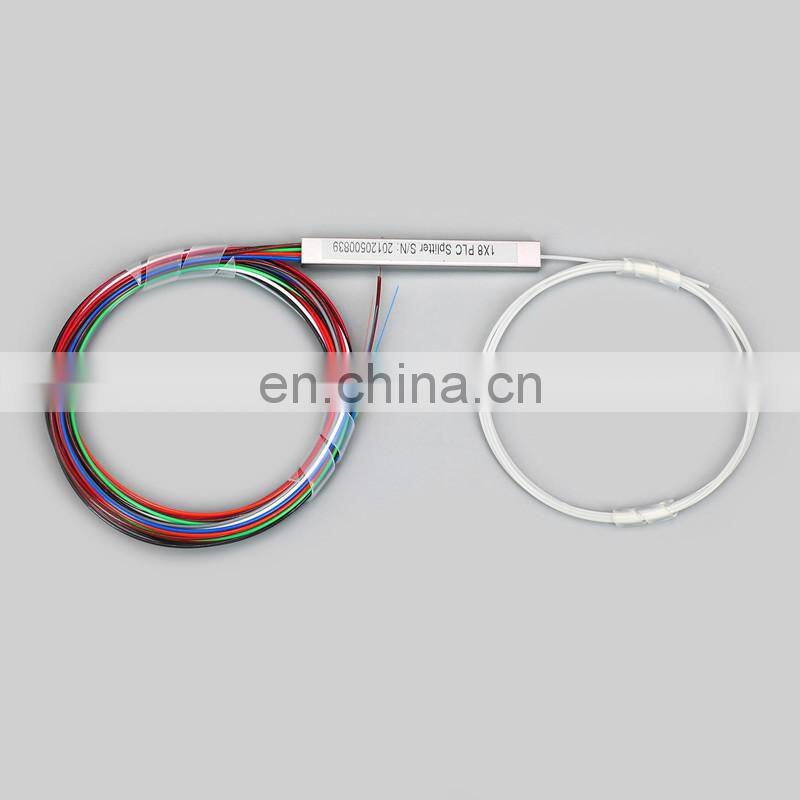

PLC Splitter is based on planar Light wave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN .PLC Splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. SUNET's PLC Splitter offers superior optical performance, high stability and high reliability,meet various application requirements in different environments.
Feature
1.Low Insertion Loss
2.Low Polarization Dependent Loss
3.Wide Operation Wavelength
4.Wide Operation Temperature
5.High Stability and Reliability
Application
1.Access Network
2.Telecom/CATV
3.Active device termination
4.Local Area Networks (LANS)
5.Metro
6.Test equipment
7.Data processing network
8.Wide Area Networks (WANS)
9.FTTX
Specification
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
