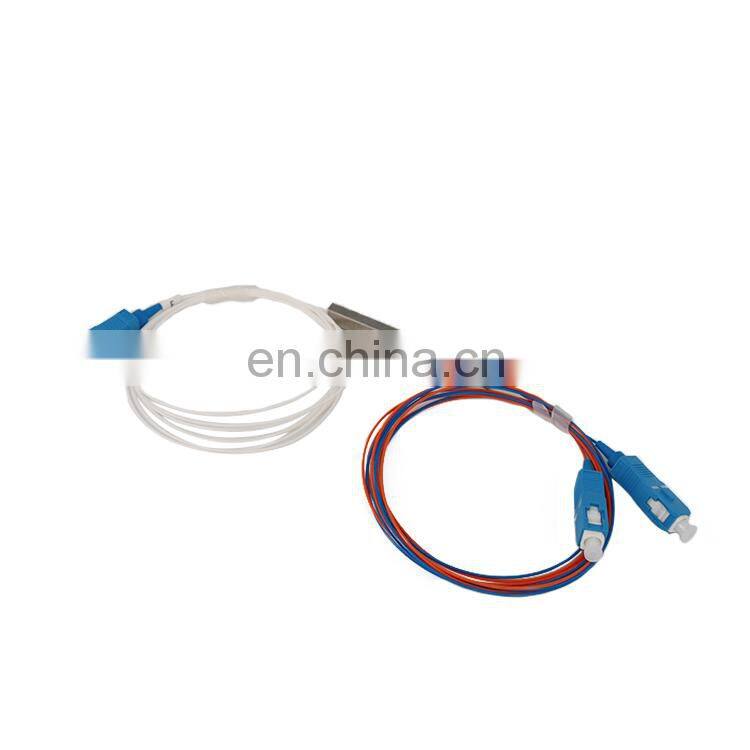

1X8 1X2 Plc Splitter Steel Tube LGX Box Cassette Card Inserting PLC Splitter Module 1:8 8 Port Fiber Optic Splitter
- T/T Credit Card
You May Like
-
FTTH 1x4 Low Insertion Loss SC/APC Mini PLC Splitter Optical Fiber Steel Type Fibre Plc 1 16 Spliter
-
Mini Steel Tube SC/APC Connector Optical PLC Splitter 2x8 Fiber Optic PLC Splitter
-
PLC Splitter FTTH 0.9mm SC/APC Mini Steel Tube PLC Splitter
-
FTTH Singlemode Mini Steel Tube Splitter SC UPC Connector 0.9mm 2way 4way 8way 1X2 1X4 1X8 1x16 PLC Splitter Lgx
-
1*2 1*8 1*16 1x32 Single Mode Mini Steel Tube Type Fiber Optical Plc Splitter With Sc/apc Connectors
-
Optical Fiber 1X2 1X4 1X8 1X16 1X32 1X64 PLC Splitter Without Connector
Product Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
