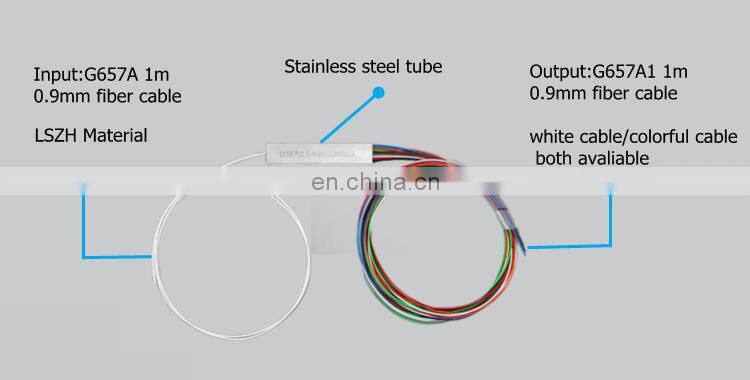

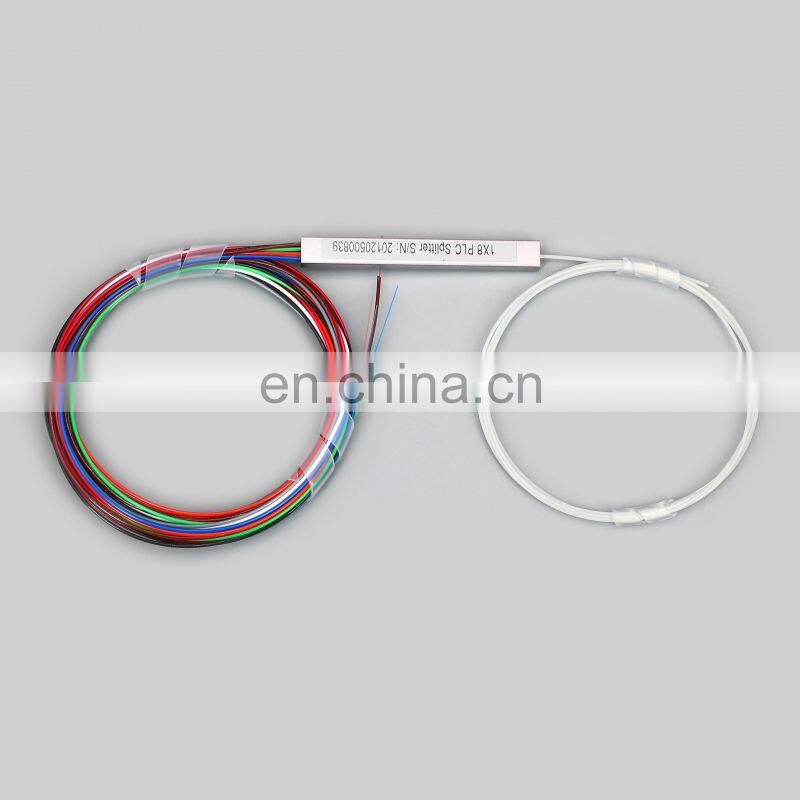

4 Way 8 Way Mini 1X4 Fiber Optic PLC Optical Gpon Splitter Without Connector
- T/T Credit Card
You May Like
-
Xpon Network 1X2 1x4 1xn Steel Tube Pon PLC Splitter With SC/UPC Connector
-
High Quality Singlemode SC/UPC Mini Type FTTH Optical PLC 1x16 Fiber Optic Splitter
-
Fbt Copuler Splitter 0.9mm 2way 4way 8way FTTH Mini Steel Tube Splitter Fiber Optic Micro PLC Splitter
-
Single Mode Fiber Optical Steel Tube Type 1X2 Coupler PLC Splitter
-
SC/UPC Steel Tube Type Mini Type 1*16 Fiber Optic Module Type PLC Splitter
-
Factory Price Optical Fiber 1X4 PLC Splitter Without Connector
Product Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
