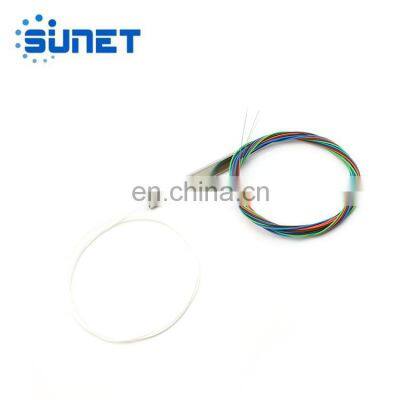

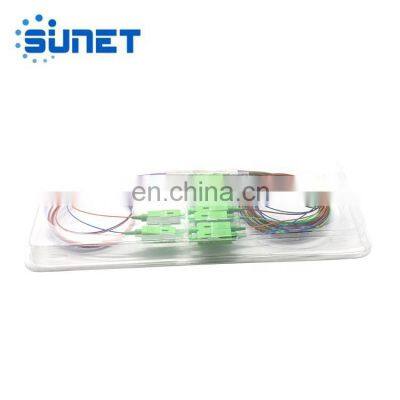

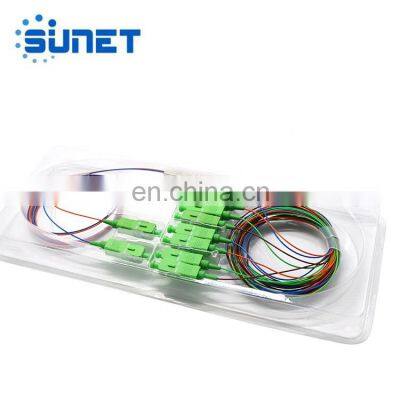

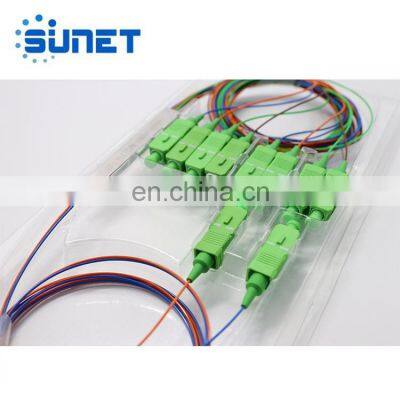

Help CenterFactory Direct Ribbon Fiber Optic Fibra Optica Splitter Plc Splitters With Connectors
Related Products
-
1X4 0.9mm Without Connector Mini Type Optical Fiber PLC SplitterNegotiableMOQ: 1 -
FTTH Optical PLC Splitter 1*8 Fiber Optic Splitter Mini Type Single Mode Steel Tube With APC ConnectorNegotiableMOQ: 1
-
OEM Fiber 2x8 Steel Tube Type Mini Type With Connector Fiber Optic Plc SplitterNegotiableMOQ: 1
-
FTTH 1x4 1x8 1x16 Factory Supply Mini Type Steel Tube Fiber Optic Without Connector PLC SplitterNegotiableMOQ: 1
-
Ftth Fttx Steel Tube Type Fiber Optic 1*2 Plc sc Splitter With sc Upc ConnectorNegotiableMOQ: 1
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
`
