PG-OPM520 olt fiber optic cable testing procedures optical power meter price list
PG-OPM520 optical power meter is a handheld optical power meter, it can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. A 1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, a wide range of power measurement, high accuracy, an user self-calibration function and a reference power level storage.
Product Parameters
Specification:
|
Model |
PG-OPM520A |
PG-OPM520C |
|
Wavelength(nm) |
800~1700nm |
|
|
Detector Type |
InGaAs |
|
|
Detector Size |
Ø 1.0mm |
|
|
Measurement Range (dBm) |
-70~+10 |
-50~+30 |
|
Uncertainty |
±5% |
|
|
Calibrated Wavelength(nm) |
850/1300/1310/1490/1550/1625nm |
|
|
Resolution(dB) |
0.01 |
|
|
Optical |

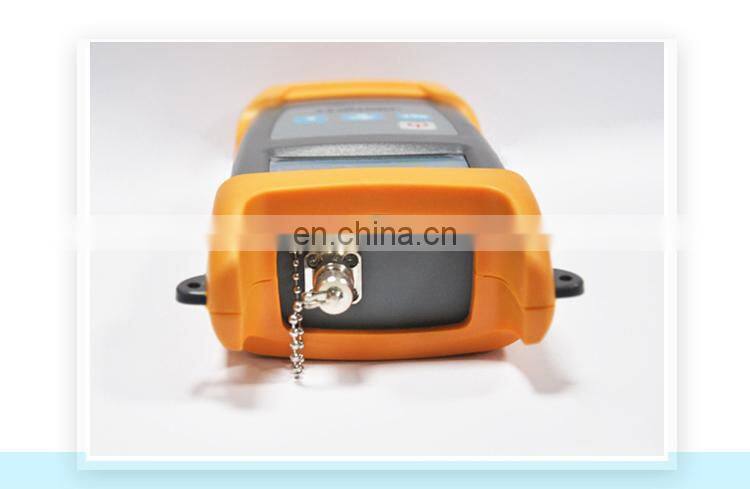

Connector FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V) |
|
|
Battery Operating Time |
140 h with 1.5V Battery(3pcs) |
|
|
Operating Temperature(°C) |
-10 ~ +60 |
|
|
Storage Temperature( °C) |
-25 ~ +70 |
|
|
Relative Humidity |
0 to 95% (non-condensing) |
|
|
Dimension(mm) |
190X100X50 |
|
|
Weight(g) |
370 |
|
Product Selling Points
Features :
* Reference power level storage(Ref Setting)
* User self-calibration function
* Comfortable LCD display and backlight LCD display supports night operation.
* Power measurements in dBm or mw and insertion loss in dB
* Optional 10 minutes Auto-off function
* AA alkaline batteries can last more than 140 hours, AC adaptor also available
* Low battery power indication

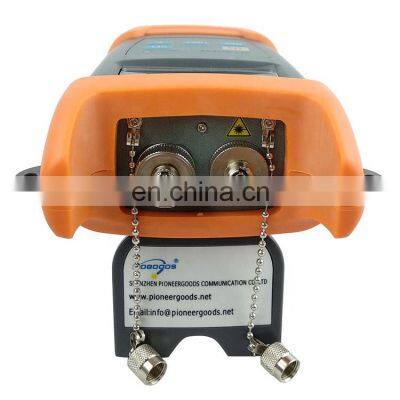

* Built-in VFL
Applications:
* Maintenance in Telecom
* Maintenance CATV
* Test Lab of Optical Fibers
* Other Fiber Optic Measurements
Packing
| Standard Packages | |
| MODEL | INCLUDES |
| All PG-OPM520 Models |

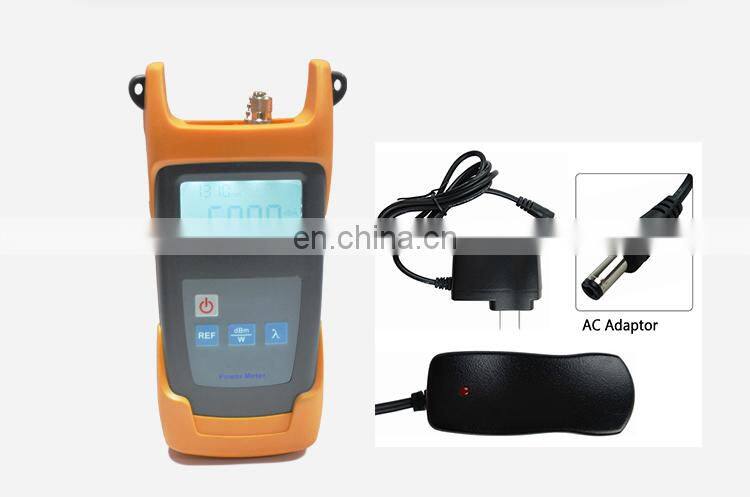

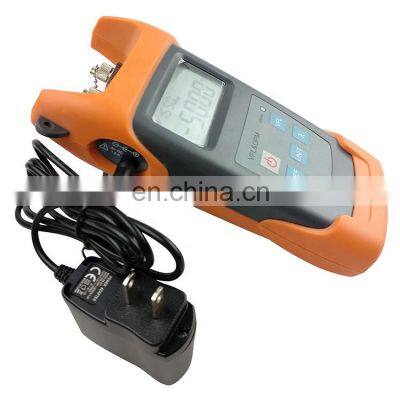

PG-OPM520 Optical Power Meter AC Adaptor User Manual Cotton swabs and Soft carrying case |
