PGOSC1020 192 Cores With Splice Fiber Optic Joint Closure

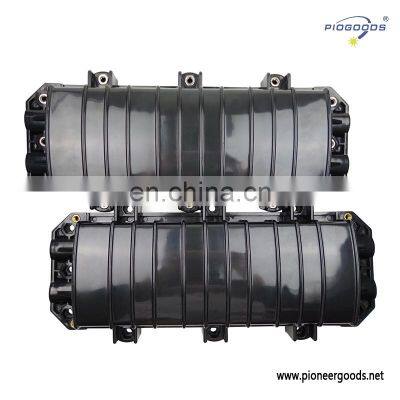

PGFOSC1020 fiber optic closure is vertical with 2 inlet and 2 outlet (4 stand-alone ports).It can have 8 traies (cassttes).
Product Parameters
|
Product Name: 192 Cores With Splice Fiber Optic Joint Closure |
Material: ABS |
|
Cable Diameter: 10mm-22mm |
Single Tray: 12 cores or 24 cores |
|
Cable Ports: 2 outlet and 2 inlet |
Max Capacity: 192 cores |
|
Size(W*H*D ): 435mm*190mm*120mm |
Weight: 2.6kgs |
Product Selling Points
*The scope of application : aerial, direct-buried, wall-mounting, duct-mounting.
*The application of temperature :-40℃~65℃
Features:
1. Aging resistance with good stability of heat, thermal radiation, air, ozone and so on.
2. Corrosion resistance strong resistance against acid, salt, oxidants and so on.
3. Sealing TechnologyThe reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance.
4. Close device no need special tools for easy installation and re open.
5. Grouping function inlet outlet at the two sides can meet most requirements.
6. Splice tray using cascading structure, no need to take other splice tray when do operation.
The outer shell is made of enhanced PC or ABS engineering plastic, it’s strong and light, can efficaciously prevent the lighting strike, erosion, aging and fire resist.
Product Details
The material of the sealing is silica gel, it can repeatable operation.

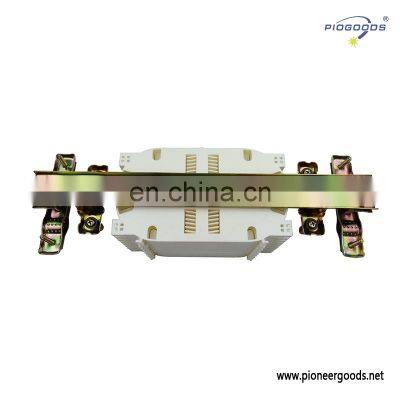

The tray is pulldown, so it’s easy installation, don’t need dismantle other tray.

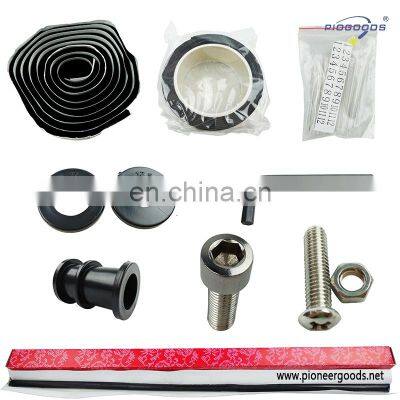

Accessories
The accessories include:
|
8 Pair Of Cable Loops |
2 Gel Sticks |
|
1 Spanner |
8 Fiber Protection Sleeve |
|
2 Blocks |

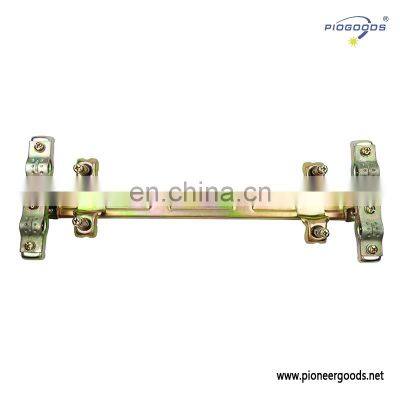

2 Hangers |
|
1 Sealed Strip |
1 Adhesive Tape |
