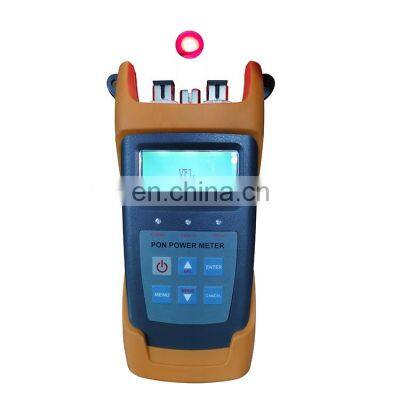

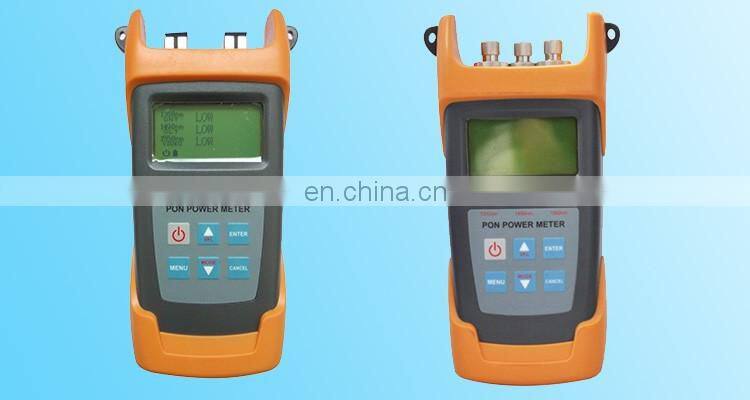

PG-PON82 Optical PON Power Meter
PG-PON82 PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
1) It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
2) Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
3) Used in Burst mode measurement of 1310nm upstream.
4) Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
5) USB communication port enables data transfer to a PC.1000 measurement item can be saved in PG-PON82 PON power meter or computer for data review.
6) With optical power meter modual, With visual fault locator modual
7) Optional Chinese/English display.
8) Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
9) 10 minutes Auto-off function can be activated or deactivated
10) Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
11) Different models corresponding to different function, according to own use to choose .

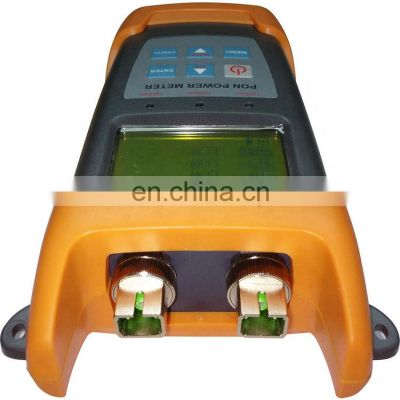

Optical fiber ports
Provide SC,FC,ST optical fiber ports compatiable with different optical fiber connector
Port Function
1) 1310/1490nm test
2) 1550nm test
3) Visual Fault Locator (VFL)(optional function)

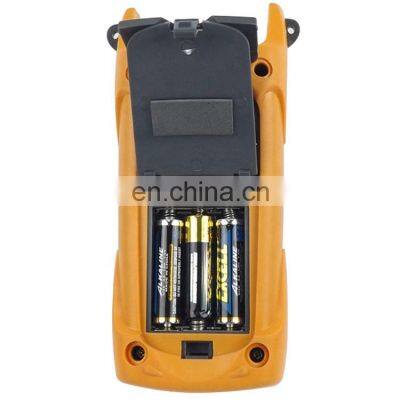

Power supply
3x1.5V battery
Install communication software on your computer
Connect the power meter with computer and computer, can read test result that stored in the power meter
SC/APC optical fiber ports
Without VFL function
FC/PC optic fiber ports
With VFL function
FC/PC optical fiber ports
With out VFL function

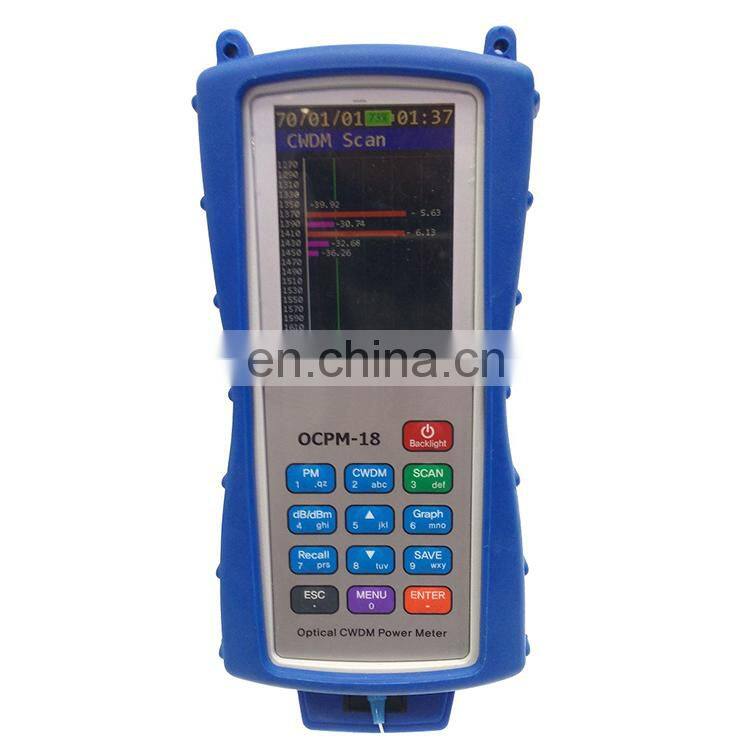

PG-OCPM18channel CWDM power meter

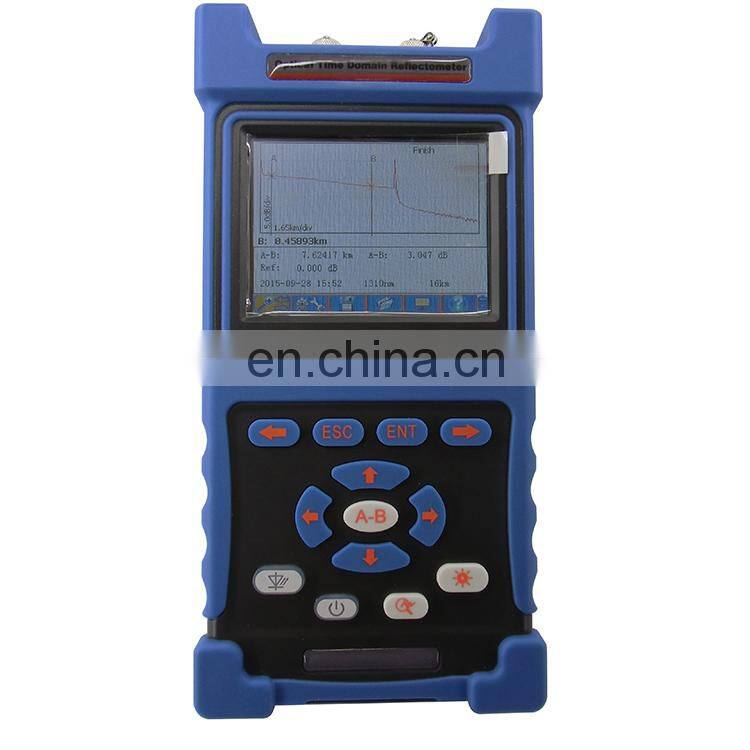

PG-1200B OTDR
PG-OPM520 power meter
