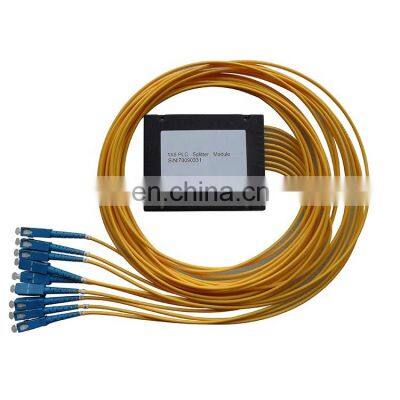

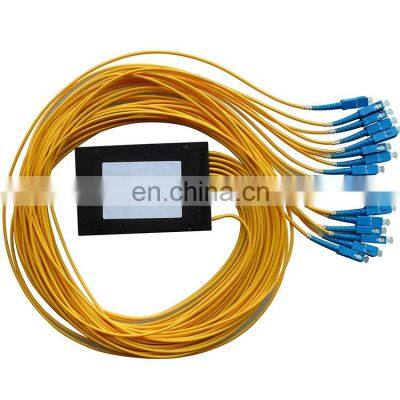

Piogoods high quality low price 1:2 optical fiber PLC Splitter
Product Description:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features:
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength:From 1260nm to 1650nm
6) Wide Operating Temperature: From -40℃ to 85℃
7) High Reliability and Stability
Applications:
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
Compliance：
1) Telcordia GR-1209-CORE-2001
2) Telcordia GR-1221-CORE-1999
3) RoHS
Parameters |
1×2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
||||||
Operating Wavelength(nm) |
1260～1650
|
||||||||||||
Insertion Loss (dB)（P/S rade） |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/ 16.9 |
20.5/ 21.0 |
24.2/ 24.5 |
||||||
Loss Uniformity(dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
2.5 |
||||||
Return Loss (dB)（P/S Grade） |
55/50
|
||||||||||||
Polarization Dependent |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.5 |
||||||
Directivity (dB) |
55 |
||||||||||||
Wavelength Dependent |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
||||||
Temperature Stability(-40～8℃) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
||||||
Operating Temperature(℃) |
-40～85
|
||||||||||||
Storage Temperature(℃) |
-40～85
|
||||||||||||
Module Dimension (mm)(L×W×H) |
100×80×10 |
120×80×18 |
140×115×18 |
||||||||||

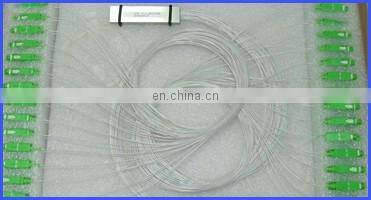

mini package optic fiber PLC splitter
G652D single mode fiber, 0.9mm diameter

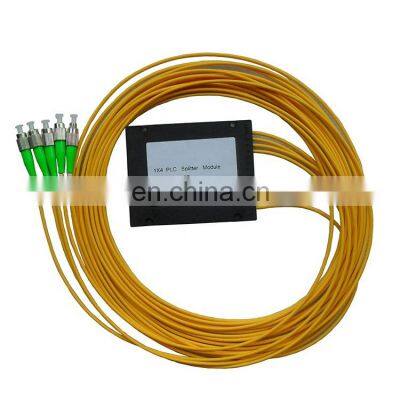

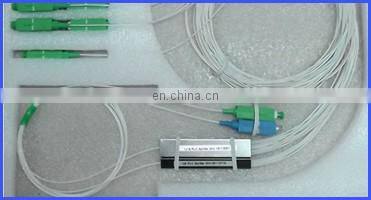

mini package optic fiber PLC splitter
Can provide 1x2,1x4,~1x128 channel mini type PLC spliter

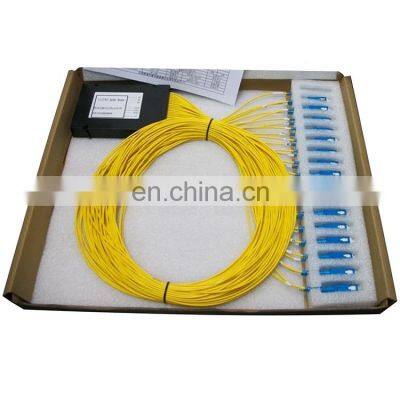

mini package optic fiber PLC splitter
SC/PC,SC/APC,FC,ST,LC connectors can be provided

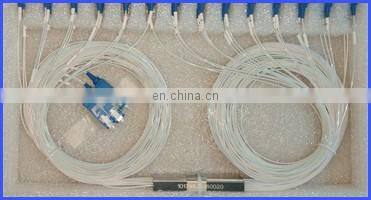

Bear optic fiber PLC splitter
PLC splitter without connectors,splicing with optic fiber cable

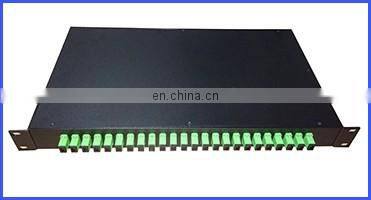

19" Rack type PLC splitter
1U rack can install 1x2~1x32 PLC splitter

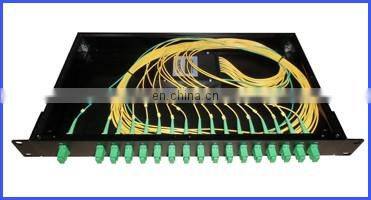

19" Rack type PLC splitter
2U rack can install 1x64 PLC splitter
1x2 FBT optic fiber splitter

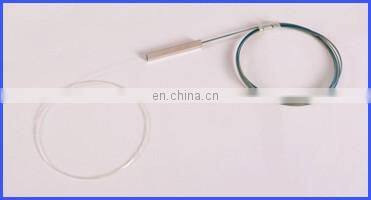

mini FBT optic fiber splitter
Pacakge size: 3*55mm
1x3 FBT optic fiber spliter
1. Factory price
2. OEM
3. Fast delivery
4. Customize service
