PGOFI600 Optical Fiber Identifier Optical
Fiber Cable Tester/fiber optic identifier

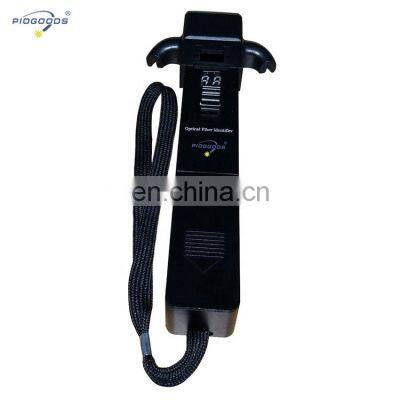

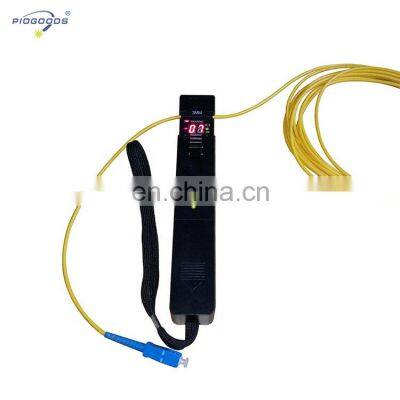

Optical Fiber Identifier OFI600 can quickly identify the direction of transmitted fiber and display the relative core power without interrupting the current service. The fiber identifier recognizes modulation like, 270Hz,1kHz and 2kHz with continuous audible tone.

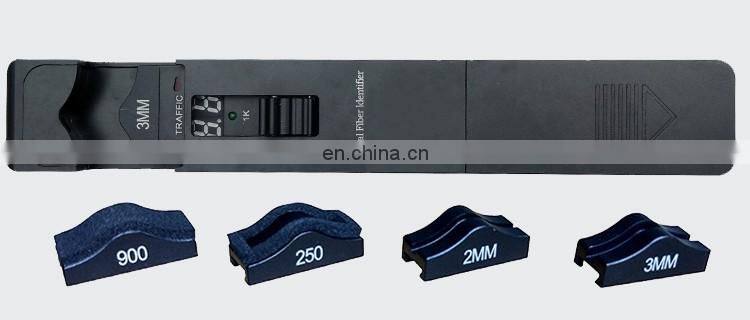

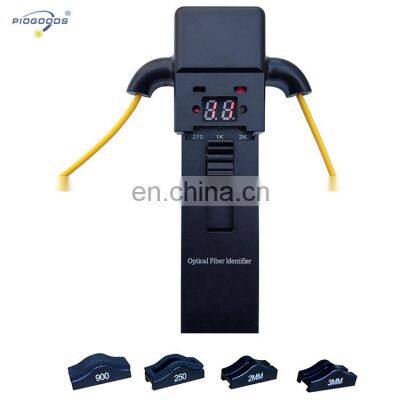

There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The optical fiber identifier is powered by 2 pcs very normal AA A batteries.

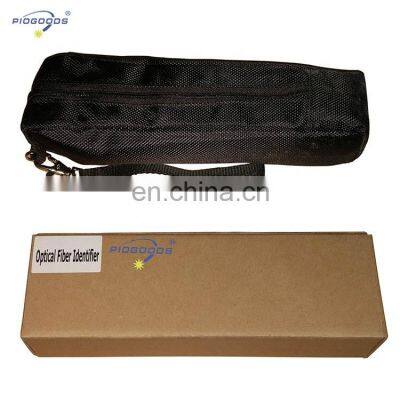

It's easy to carry and loss can be avoided with new adaptors box.
Specifications:
Type | PGOFI600 | |
Identified Wavelength Range | 800-1700 nm | |
Identified Signal Type | CW, 270Hz±5%,1kHz±5%,2kHz±5% | |
Detector Type | Ø1mm InGaAs 2pcs | |
Adapter Type | Ø0.25 (Applicable for Bare Fiber) | |
Ø0.9 (Applicable for Ø0.9 Cable ) | ||
Ø2.0 (Applicable for Ø2.0 Cable ) | ||
Ø3.0 (Applicable for Ø3.0 Cable ) | ||
Signal Direction | Left & Right LED | |
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) | -46~10(1310nm) | |
-50~10(1550nm) | ||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) | -50~+10 | |
Signal Frequency Display (Hz) | 270, 1k, 2k | |
Frequency Test Range (dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
Ø0.25 | -25~0 (1KHz,2KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battry(V) | 2pcs AAA batteries | |
Operating Temperature(℃) | -10-+60 | |
Storage Temperature(℃) | -25-+70 | |
Dimension (mm) | 196X30.5X27 | |
Weight (g) | 195 | |
