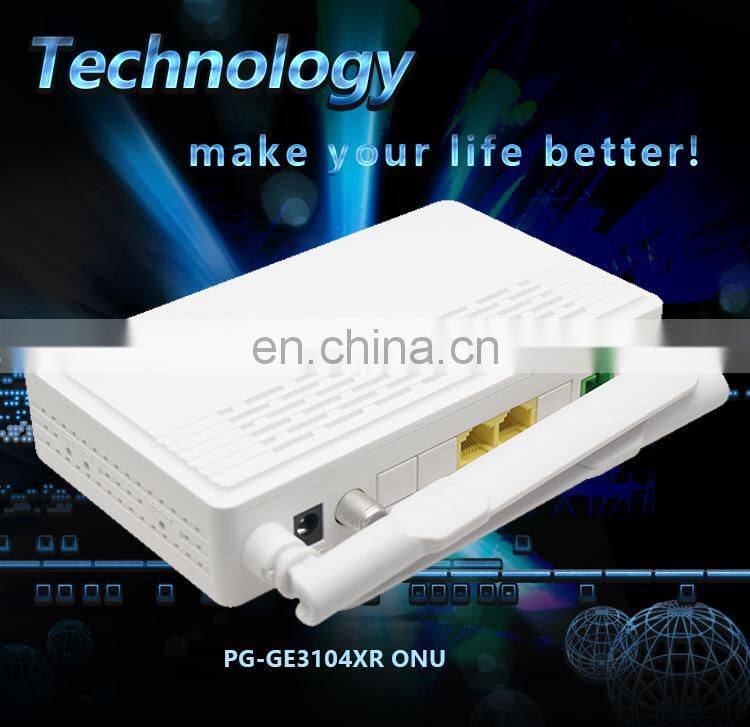

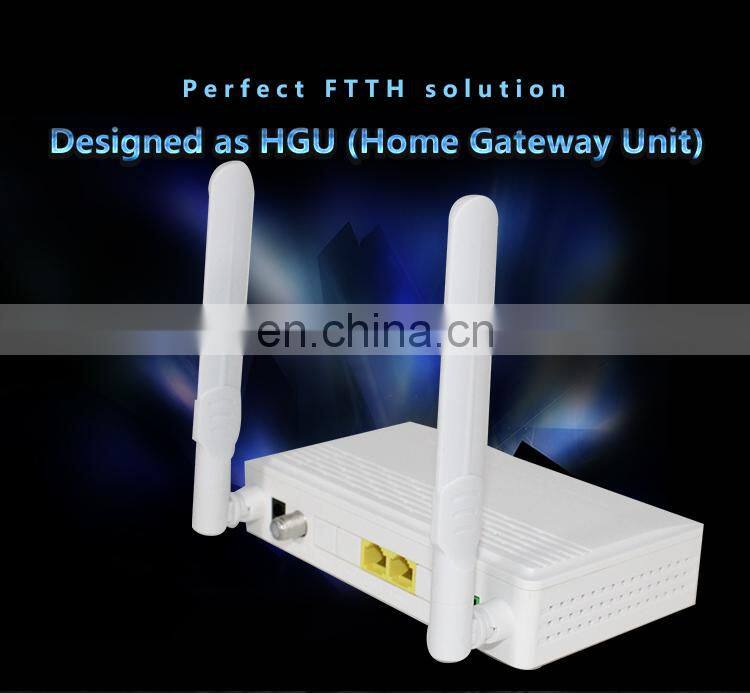

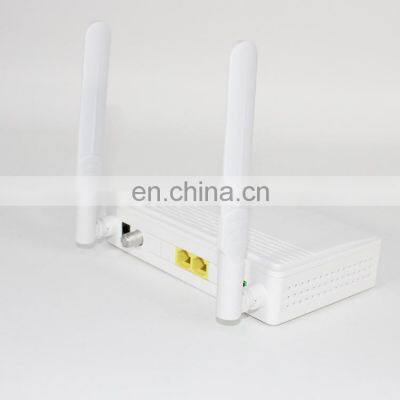

1GE+1FE+CATV New 2.4GHz 5dBi Onu Iptv Wifi Epon Gpon Xpon Onu Ont With Wifi Catv

Technical item

Details

PON Interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

Wavelength

TX: 1310nm, RX: 1490nm

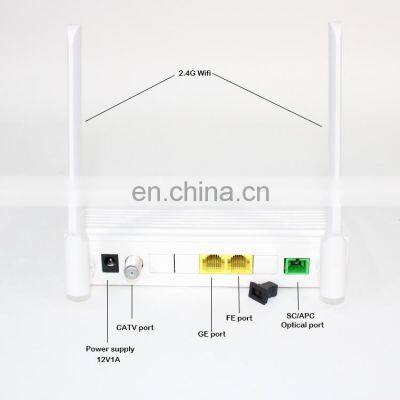

Optical Interface

SC/APC Connector

LAN Interface

1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

CATV Interface

RF, WDM ,optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF output level: 78dBuV

AGC range: 0~-15dBm

MER: ≥32dB@-15dBm

Wireless

Compliant with IEEE802.11b/g/n,

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps,

2T2R,2 external antenna 5dBi,

Support: Multiple SSID

Channel: Auto

Modulation type: DSSS, CCK and OFDM

Encoding scheme: BPSK, QPSK, 16QAM and 64QAM

LED

9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2,Worn, Normal(CATV)

Push-Button

3,For Function of Reset, WLAN, WPS

Operating Condition

Temperature: 0℃~+50℃

Humidity: 10%~90%(non-condensing)

Storing Condition

Temperature: -30℃~+60℃

Humidity: 10%~90%(non-condensing)

Power Supply

DC 12V/1A

Power Consumption

≤6W

Dimension

155mm×92mm×34mm(L×W×H)

Net Weight

0.24Kg

Product Name

Product Model

Descriptions

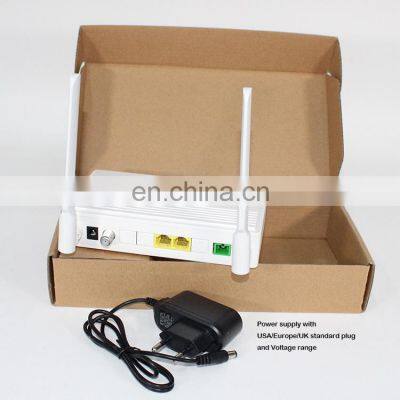

SFF Type XPON ONU

1G1F+WIFI+CATV

1x10/100/1000Mbps Ethernet, 1 x 10/100Mbps Ethernet , 1 SC/APC Connector,  2.4GHz WIFI,1 RF Output Interface ,Plastic Casing, External power supply adapter
