PG-OPM508 optical test equipment unit of optical power fo cable testing

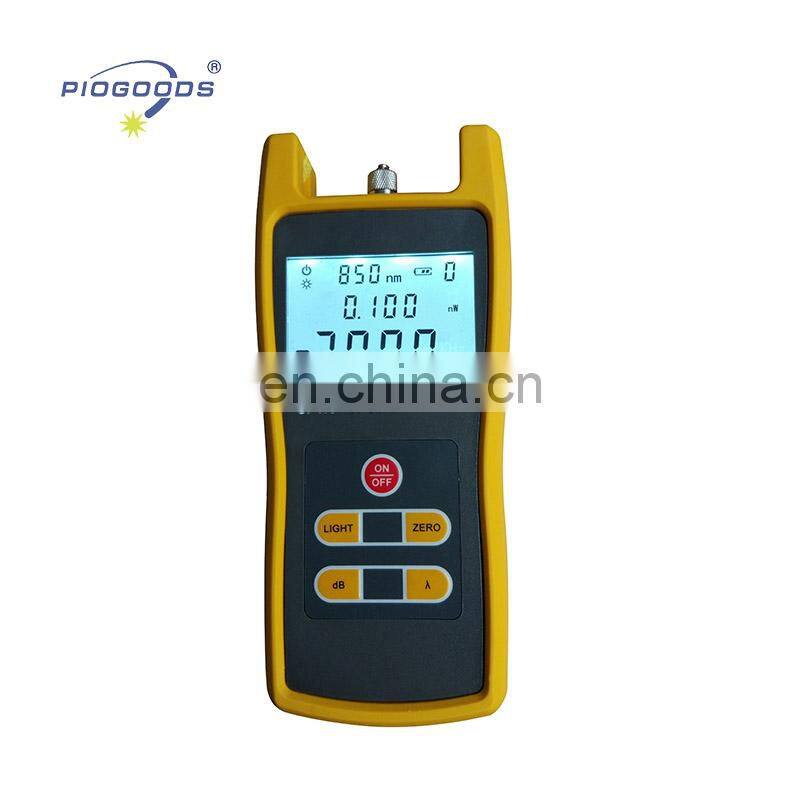

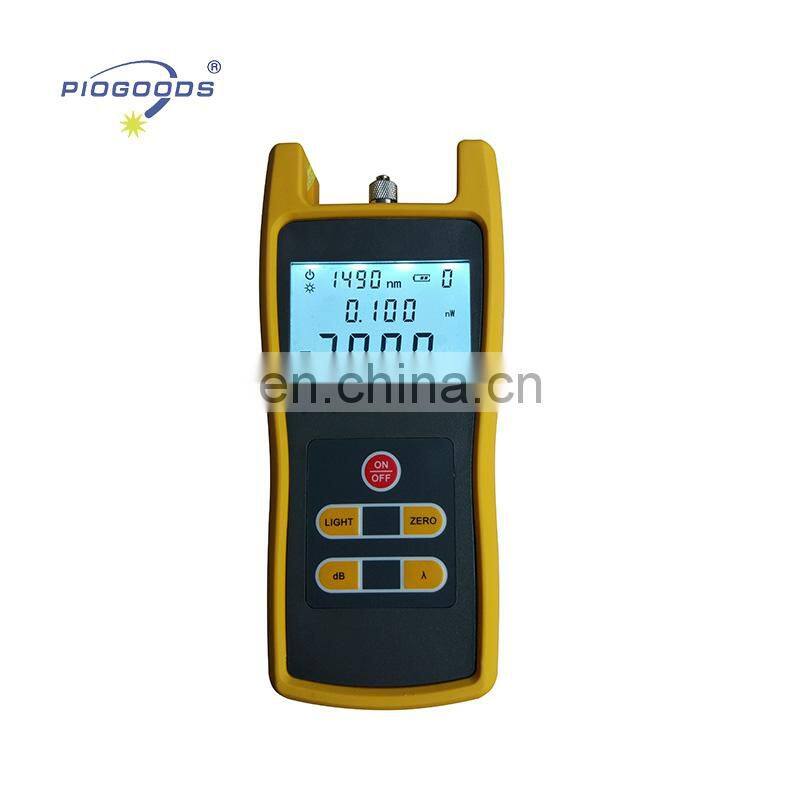

PG-OPM508 Is a handheld optical power meter, can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. A 1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, a wide range of power measurement, high accuracy, an user self-calibration function and a reference power level storage.
Reference power level storage(Ref Setting)
User self-calibration function
Comfortable LCD display and backlight LCD display supports
night operation.
Power measurements in dBm or mw and insertion loss in dB
Optional 10 minutes Auto-off function
AA alkaline batteries can last more than 140 hours, AC adaptor also available
Low battery power indication
Maintenance in Telecom
Maintenance CATV
Test Lab of Optical Fibers
Other Fiber Optic Measurements
|
Model |
PG-OPM520A |
PG-OPM520C |
|
Wavelength(nm) |
800~1700nm |
|
|
Detector Type |
InGaAs |
|
|
Detector Size |
Ø 1.0mm |
|
|
Measurement Range (dBm) |
-50~+30 |
|
|
Uncertainty |
±5% |
|
|
Calibrated Wavelength(nm) |

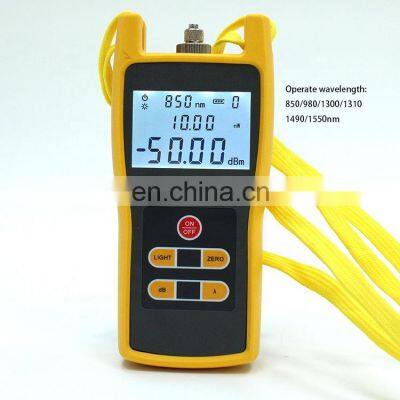

850/1300/1310/1490/1550/1625nm |
|
|
Resolution(dB) |
0.01 |
|
|
Optical |

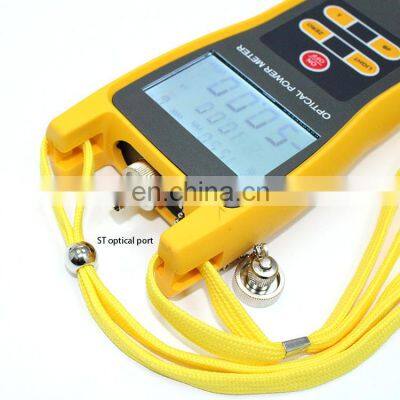

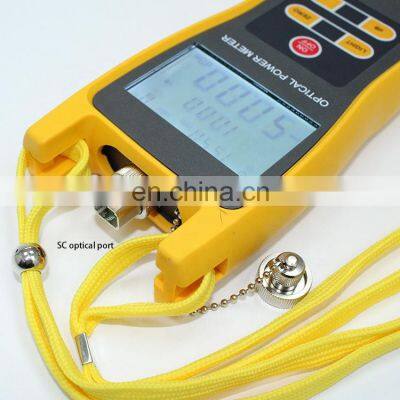

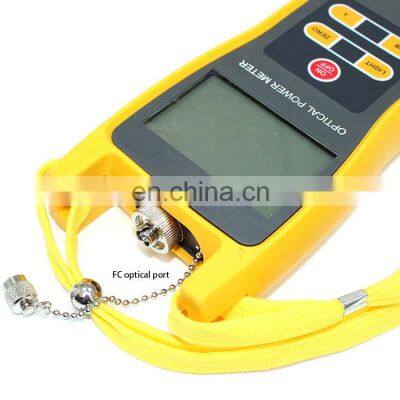

Connector FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V) |
|
|
Battery Operating Time |
140 h with 1.5V Battery(3pcs) |
|
|
Operating Temperature(℃) |
-10 ~ +60 |
|
|
Storage Temperature( ℃) |
-25 ~ +70 |
|
|
Relative Humidity |
0 to 95% (non-condensing) |
|
|
Dimension(mm) |
190X100X50 |
|
|
Weight(g) |
370 |
|
|
Standard Packages |
||
|
MODEL |
INCLUDES |
|
|
All PG-OPM520 Models |
PG-OPM520 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case. |
|
