Product Description

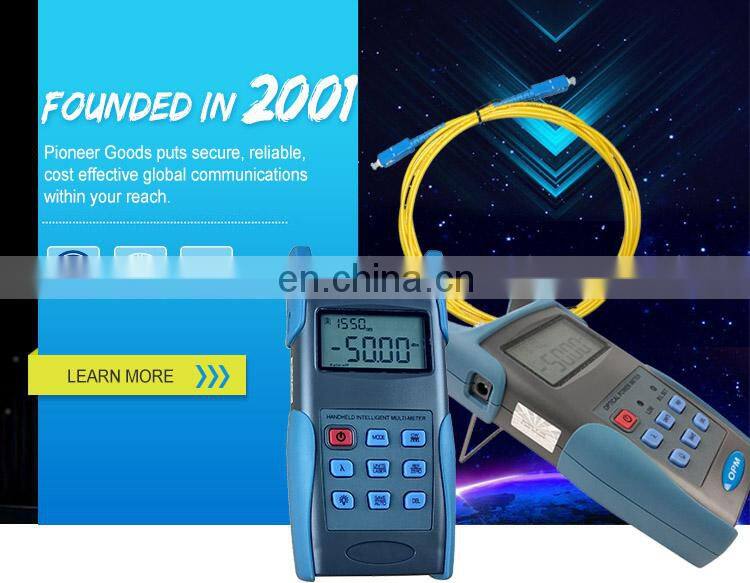

PG-OMM540 optic fiber multi meter power meter with laser source test equipment
Overview:
The meter is the company highly cost-effective optical multimeter. It’s the integration of power meter and light source. The meter has the function of recording, storing and uploading the data tested by the instrument. They are widely used in the fiber-optic line project construction, testing and maintenance, such as digital data network, telecommunication network and cable television.
Features:
· Easy mode switching function
· Stable Output light
· Automatic switching function of the internal source wavelength
· Detection of the frequency light
· USB data communication storage, uploading and for power supply
· Data Storage is up to 1000
· Providing the real-time data reading to be embedded in system
Applications:
· Maintenance of telecommunication project
· CATV project maintenance
· Digital data network project maintenance
· Teaching and research in optical communications
· Other fiber-optic projects
|
Instrument model and parameters |
PG-OMM540A |
PG-OMM540C |
|
Power meter |
||
|
Calibration wavelength(nm) |
850,1300, 1310,1490,1550,1625 |
|
|
Testing range(dBm) |
-70~+6 |
-50~+26 |
|
Display resolution(dB) |
0.01 |
|
|
Uncertainty(dB) |
≤±0.25 |
|
|
linearity(dB) |
≤±0.1 |
|
|
Frequency indentification range |
<10K |
|
|
Source |
||
|
Working wavelenght(nm) |
1310/1550(customizable) |
|
|
Typical Output Power(dBm) |
-5(customizable) |
|
|
Stability(dB,30min,20℃) |
≤0.1dB |
|
|
Modulation frequency (Hz) |
CW,270Hz,1KHz,2KHz |
|
|
Other parts |
||
|
Power supply |
3*AA 1.5Vbattery / Mini USB 5Vadapter |
|
|
Auto-off time (min) |
10 |
|
|
Battery continuous operation time(h) |
Source ON≥50,source off≥200 |
|
|
Communication Interface |
Mini USB |
|
|
Working temperature(℃) |
-10~+60 |
|
|
Storage temperature(℃) |
-25~+70 |
|
|
size(mm) |
175×90×44.5 |
|
|
weight(g,not including battery) |
265 |
|
