4 cores g652d fiber optic cable free samples lszh figure 8 drop fiber optic cable
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- FTTH outdoor fiber optic cable single mode , G657A1 fiber, lszh, black 1 core drop cable
- ftth fiber optic cable gyxtw 7mm diameters 12 cores price
- Figure 8 single mode PE jacket steel wire self-support member 4 core aerial fiber optic cable
- Figure 8 single mode PE jacket steel wire self-support member cable fiber optic cable meter price
- 24 SFP ports 10G SFP+ optic fiber Routing switch L3 management 24 ports ethernet switch
- 2-24cores single mode,G652D Optical Fiber cable 5km/roll ADSS fibre optic cable outdoor
Product Description

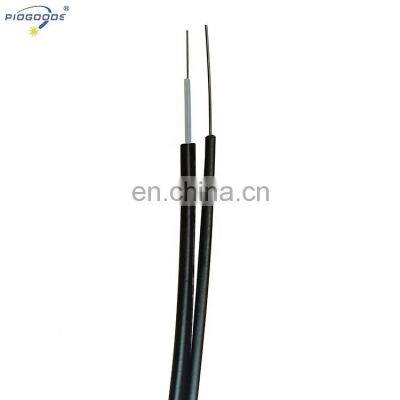

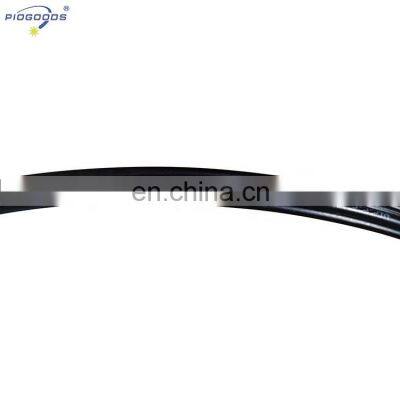

4 cores g652d fiber optic cable free samples lszh
figure 8 drop fiber optic cable
Products Description
Fibers & Loose Tube Colours Display:
Cable Parameters
Items | Specifications | ||
Fiber No. | 4 (max 12) | ||

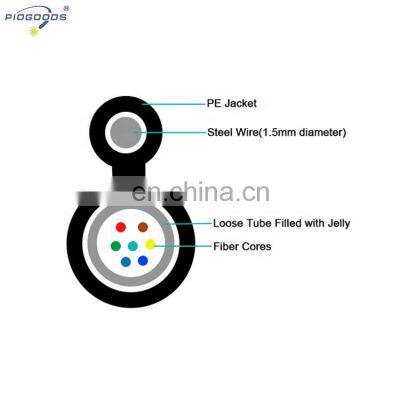

Internal structure of fibers part | Central tube style | ||
Loose Tube | Dimension | 2.2±0.1mm | |
Material | PBT | ||
Tube No. | 1 | ||
Fibers per Tube | 12 | ||
Dropping messenger | Dimension. | 1*1.5mm | |
Material | Steel | ||

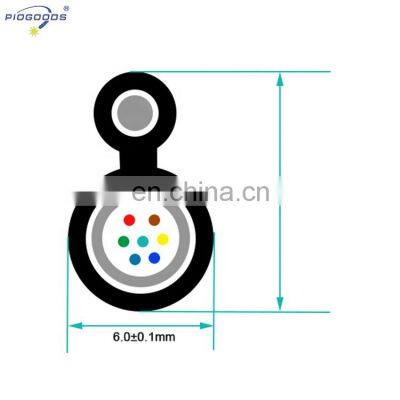

Outer Sheath | OD | 6.5*11 ±0.1mm | |
Material | PE | ||
Color | Black | ||
Weight | 55 ±5kg/km |
Fiber Parameters
No. | Items | Unit | Specification | ||
G.652D | |||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 | |
1550nm | μm | 10.4±0.5 | |||
2 | Cladding Diameter | μm | 124.8±0.7 | ||
3 | Cladding Non-Circularity | % | ≤0.7 | ||
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ||
5 | Coating Diameter | μm | 245±5 | ||
6 | Coating Non-Circularity | % | ≤6.0 | ||
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ||
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | ||
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 | |
1550nm | dB/km | ≤0.22 |
Mechanical and Environmental Characteristics
Items | Unit | Specifications |
Weight | Kg/km | 55 ±5kg/km |
Max. load under installation | KN | ≤ 8.6 |
Max. load under operation | N | ≤ 4.2 |
Max. Tensile (Long Term) | N | 600 |
Max. Tensile (Short Term) | N | 1200 |
Crush(Long Term) | N/10cm | 500 |
Crush(Short Term) | N/10cm | 1000 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |
