Ftth Fiber Optic Cable Gyxtw 7mm Diameters 12 Cores Price

Ftth Fiber Optic Cable Gyxtw 7mm Diameters 12 Cores Price photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1999
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

ftth fiber optic cable gyxtw 7mm diameters  12 cores price

ftth fiber optic cable gyxtw 7mm diameters  12 cores price





Description:

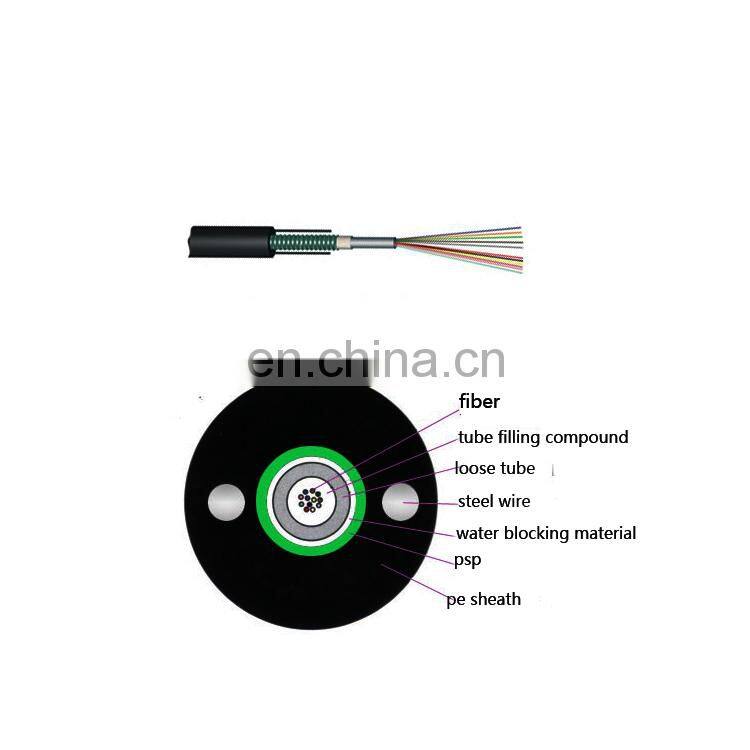

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics:

 1.Good mechanical and temperature performance

 2.High strength loose tube that is hydrolysis resistant

 3.Special tube filling compound ensure a critical protection of fiber

 4.Crush resistance and flexibility

 5.PSP enhancing moisture-proof

 6.Two parallel steel wires ensure tensile strength

 7.Small diameter, light weight and friendly installation



Loose tube filling compound

100% cable core filling

APL moisture barrier

Standards:

GYTA  YD/T 901-2001 /IEC 60794-1

GYTA cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

 Optical Characteristics:



G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km







Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm







 Technical Parameters:

Cable Type

Fiber Count

Cable Diameter

mm

Cable Weight kg/km

Tensile StrengthLong/Short Term N

Crush Resistance Long/Short Term N/100mm

Bending Radius/Static
/Dynamic mm

GYXS/GYXTW-2~12

2~12

10.0

105

600/1500

300/1000

10D/20D

GYXS/GY XTW-2~12

2~12

10.6

124

1000/3000

1000/3000

10D/20D

GYXS/GY XTW-14~24

14~24

12.5

149

1000/3000

1000/3000

10D/20D

GYXS/GY XTW-26~36

26~36

14.0

190

1000/3000

1000/3000

10D/20D

GYXS/GY XTW-38~48

38~48

15.0

216

1000/3000

1000/3000

10D/20D



  Storage/Operating Temperature : -40 to + 70
