Home > Products > Crossed Roller Bearing > XSU080398 Crossed Roller Bearing XSU080398 Turntable Slewing Bearing 360*435*25.4mm

XSU080398 Crossed Roller Bearing XSU080398 Turntable Slewing Bearing 36043525.4mm

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

XSU080398 Crossed Roller Bearing XSU080398 Turntable Slewing bearing 360*435*25.4mm

Model number-XSU080398 crossed roller bearing

Inner ring(mm)-360

Outer ring(mm)-435

Width(mm)-25.4

Weight(Kg)-7.8

Materials-GCR15/GCR15SiMn

Precision grade-P5/P4/P2

Lubrication type-Grease lubricationRotating part-Inner ring/Outer ring

Load direction- Multi-load

Structure-Integrated Inner/Outer Ring,Mounting

XSU series crossed roller bearing (Integrated Outer/Innner Ring,with Mounting Holes)
XSU series crossed roller bearings: Due to the integral structure of the inner and outer rings, the bearing has high rigidity and has mounting holes. It does not require fixing flanges and bearing seats during installation. It greatly simplifies the installation procedure and does not affect the installation accuracy. It has high rotation precision and Larger torque, and also free to choose the inner ring or outer ring rotation according to the accuracy requirements, with a greater degree of freedom of choice.
INA XSU crossed roller bearing application:
It is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. Mainly used in
engineering machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electric power, railways and other
industries.

we have P5 P4 P2 and P6(normal grade) for you.difference price.pls contact with us before place order.

Bearing Model	Crossed Roller Bearing XSU080398
Application	robots arm
Type	Crossed Roller Bearing
Structure	Separable Outer Ring Cross Roller Bearing
(dxDxB)	36043525.4mm
Mass /	7.8 KG
Origin	China
Grade	P2 P4 P5
Lead Time	Within 3 Days
Contact	sara
WhatsApp / Webchat	+86 18710180456
E	sales1at

Detailed Images

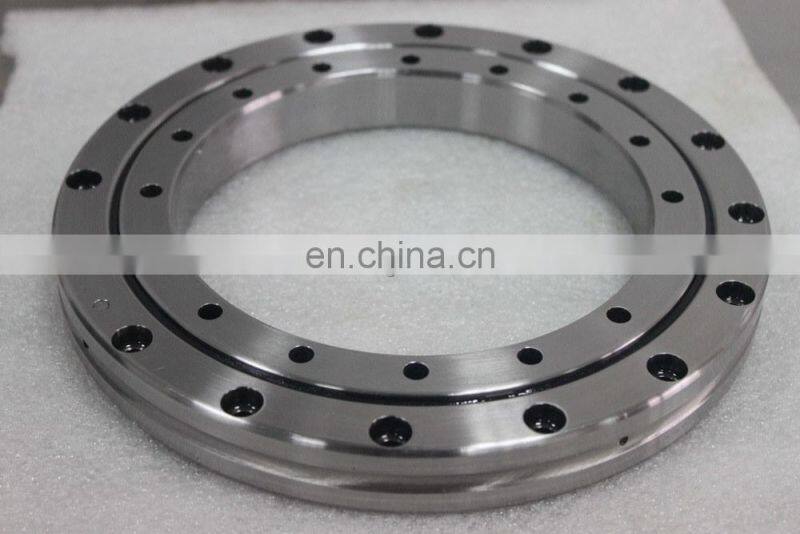

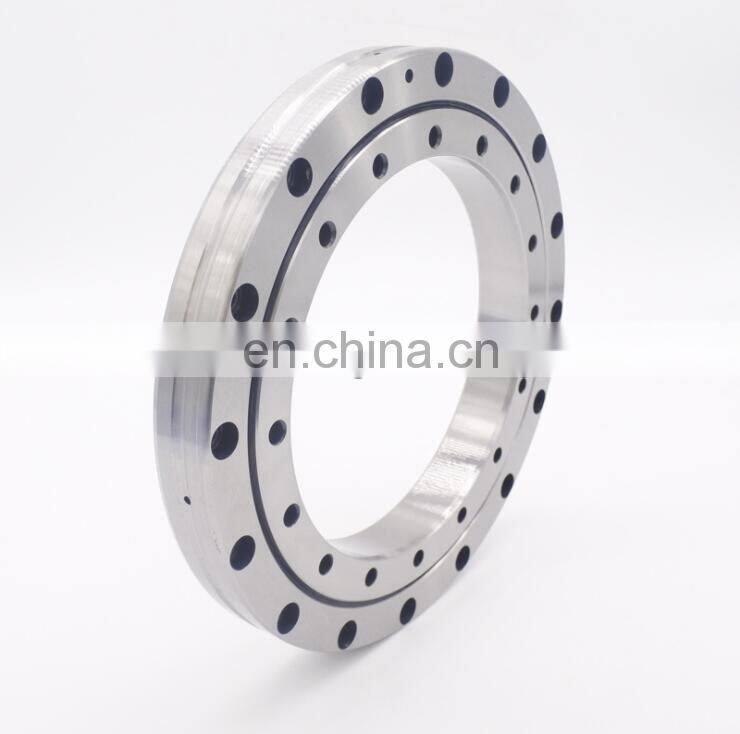

XSU080398 Cross Roller Bearing XSU 080398 360*435*25.4mm

Nongeared 360x435x25.4 mm Turntable Slewing Ring Crossed Roller Bearing XSU080398

XSU080168, XSU080188, XSU080218, XSU080258, XSU080318, XSU080398
XSU140414, XSU140544, XSU140644, XSU140744, XSU140844, XSU140944

Bearing type	Main dimensions							Basic load rating (radial）		Limiting speed	weight
		inner ring	outer ring	width	mounting hole	Cr	Cor
		d	D	B	na	kN	kN	r/min	Kg
XSU080168	130	205	25.4	12	42	96	227	3.3
XSU080188	150	225	25.4	16	46	110	203	3.7
XSU080218	180	225	25.4	20	49	127	175	4.3
XSU080258	220	295	25.4	24	54	151	148	5.1
XSU080318	280	355	25.4	28	59	185	120	6.3
XSU080398	360	435	25.4	36	68	236
XSU140414	344	484	56	24	520	146	250	28
XSU140544	474	614	56	32	680	170	330	38
XSU140644	574	714	56	36	800	185	395	44
XSU140744	674	814	56	40	930	200	455	52
XSU140844	744	914	56	40	1050	215	510	60
XSU140944	874	1014	56	44	1170	227	580	67

	Main dimensions									shoulder		weight
	Main dimensions										height	weight
number	inner	outer	Roller pitch	width	Greasing	Chamfer	de	Di	Kg
	ring	ring	circle diameter	B B1	hole	r
	d	D	dp	(mm)	φ	(min)
	(mm)	(mm)	(mm)
SX011814	70	90	80	10	1.2	0.6	79.5	80.5	0.3
SX011818	90	115	102	13	1.2	1	101.5	102.5	0.4
SX011820	100	125	112	13	1.2	1	111.5	112.5	0.5
SX011824	120	150	135	16	1.5	1	134.4	135.6	0.8
SX011828	140	175	157	18	1.5	1.1	156.3	157.7	1.1
SX011832	160	200	180	20	1.5	1.1	179.2	180.8	1.7
SX011836	180	225	202	22	2	1.1	201.2	202.8	2.3
SX011840	200	250	225	24	2	1.5	224.2	225.8	3.1
SX011848	240	300	270	28	2	2	269.2	270.8	5.3
SX011860	300	380	340	38	2.5	2.1	339.2	340.8	12
SX011868	340	420	380	38	2.5	2.1	379.2	380.8	13.5
SX011880	400	500	450	46	2.5	2.5	449	451	24
SX0118/500	500	620	560	56	2.5	3	558.8	561.2	44
XRU21040	RU297	210	380	40	156	281	21.3
XRU21040G	RU297G	210	380	40	156	281	21.3
XRU21040X	RU297X	210	380	40	156	281	21.3
XRU35045	RU445	350	540	45	222	473	35.4
XRU35045G	RU445G	350	540	45	222	473	35.4
XRU35045X	RU445X	350	540	45	222	473	35.4

Application

Main Products

Certifications

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
