THK Crossed Roller Bearing RA15008UUCC0 RA 15008
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Precision Crossed Cylindrical Roller Bearing RA14008 RA14008UUCC0
-
RB Series Thk Crossed Roller Bearing RB 20025 RB20025UUCC0P5 RB20025UUCC0P4
-
Chinese Cross Roller Bearing XRA20013 XRA 20013 19013 Size 200x226x13 mm
-
Thk RB Crossed Roller Bearing RB20025 RB20025UU Robot Bearing RB 20025 XRB20025 Size 200x260x25 mm
-
RB 13025 Thk Iko Cross Roller Bearing RB13025UUCC0P4 RB13025
-
IKO THK LSBC Crossed Roller Slewing Bearing RB5013UUCCOP5 P4 RB5013
Product Description
Product Description
The Structure and Character of Cross Roller Bearing
we can offer the type of RA, RB, RE, RU, CRBH, SX，XSU, XV, SHF, CSF for industrial robots.
Crossed roller bearing is a special type bearing with split inner ring and outer ring rotation. The divided inner ring or outer ring is fixed with the cross roller collar after the roller and the spacer are installed to prevent separation, so the operation is simple when installing the cross roller collar.
because the inner or outer ring of the cross roller bearing has a two-part structure, the bearing gap can be adjusted, and even if a preload is applied, a high-precision rotary motion can be obtained. Moreover, due to its special structure, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.
Bearing Model | RA15008 |
Application | robots arm |
Type | Crossed Roller Bearing |
Structure | Separable Outer Ring Cross Roller Bearing |
(dxDxB) | 150x166x8mm |
Mass / | 0.2 KG |
Origin | JAPAN |
Grade | P2 P4 P5 |
Lead Time | Within 3 Days |
Contact | jessi (Ms) |
WhatsApp / Webchat | +86 18753110215 |
E | lbc001at |
Detailed Images

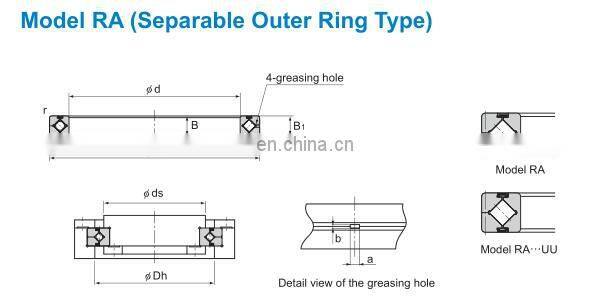

Model RA (Separable Outer Ring Type for Inner Ring Rotation) Based on model RB, this model is a light and compact type with the thinnest possible inner and outer rings. It is optimal for locations where weight reduction and downsizing are required, such as the hand swiveling unit of robots and manipulators.
Bearing NO. | Dimension(mm) | Weight (Kg) | ||||||
THK | IKO | d | D | B | ||||
RA5008 | CRBS508 | 50 | 66 | 8 | 0.08 | |||
RA6008 | CRBS608 | 60 | 76 | 8 | 0.09 | |||
RA7008 | CRBS708 | 70 | 86 | 8 | 0.1 | |||
RA8008 | CRBS808 | 80 | 96 | 8 | 0.11 | |||
RA9008 | CRBS908 | 90 | 106 | 8 | 0.12 | |||
RA10008 | CRBS1008 | 100 | 116 | 8 | 0.15 | |||
RA11008 | CRBS1108 | 110 | 126 | 8 | 0.16 | |||
RA12008 | CRBS1208 | 120 | 136 | 8 | 0.17 | |||
RA13008 | CRBS1308 | 130 | 146 | 8 | 0.18 | |||
RA14008 | CRBS1408 | 140 | 156 | 8 | 0.19 | |||
RA15008 | CRBS1508 | 150 | 166 | 8 | 0.2 | |||
RA16013 | CRBS16013 | 160 | 186 | 13 | 0.59 | |||
RA17013 | CRBS17013 | 170 | 196 | 13 | 0.64 | |||
RA18013 | CRBS18013 | 180 | 206 | 13 | 0.68 | |||
Application
Main Products
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
