Thk RB Crossed Roller Bearing RB20025 RB20025UU Robot Bearing RB 20025 XRB20025 Size 200x260x25 mm

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Original THK Crossed Roller Bearing RB20025UUCC0P5 RB20025UUC0 P5 Robot bearing RB 20025

The Structure and Character of Cross Roller Bearing RB 10020 Crossed roller bearing is a special type bearing with split inner ring and outer ring rotation. The divided inner ring or outer ring is fixed with the cross roller collar after the roller and the spacer are installed to prevent separation, so the operation is simple when installing the cross roller collar. because the inner or outer ring of the cross roller bearing has a two-part structure, the bearing gap can be adjusted, and even if a preload is applied, a high-precision rotary motion can be obtained. Moreover, due to its special structure, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.

Bearing Model	RB20025UUCC0 P5
Application	robots
Type	Crossed Roller Bearing
Structure	Separable Outer Ring Cross Roller Bearing
(dxDxB)	200x260x25mm
Mass /	4 KG
Origin	JAPAN
Lead Time	Within 3 Days
Contact	jessi (Ms)
SKYPE	tradingbearing
WhatsApp / Webchat	+86 18753110215
Email	lbc001@landlionbearing.com

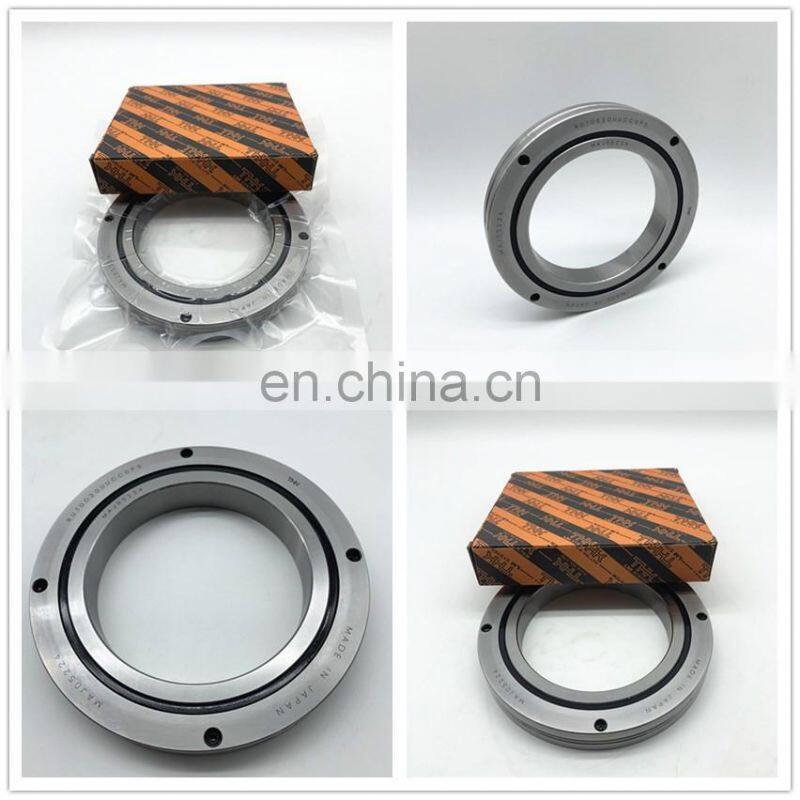

Crossed roller bearing RB20025 picture show

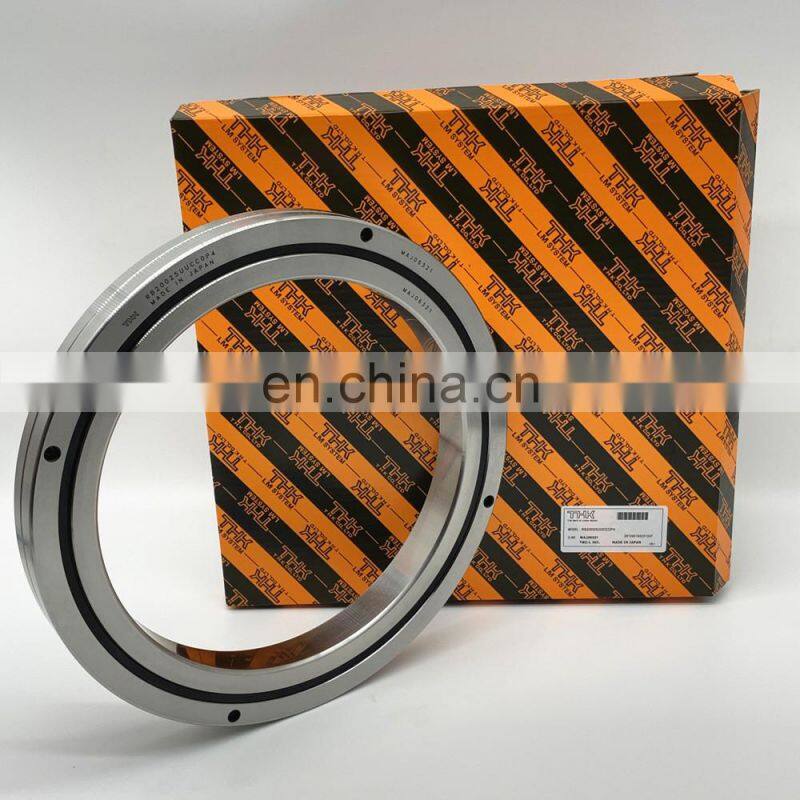

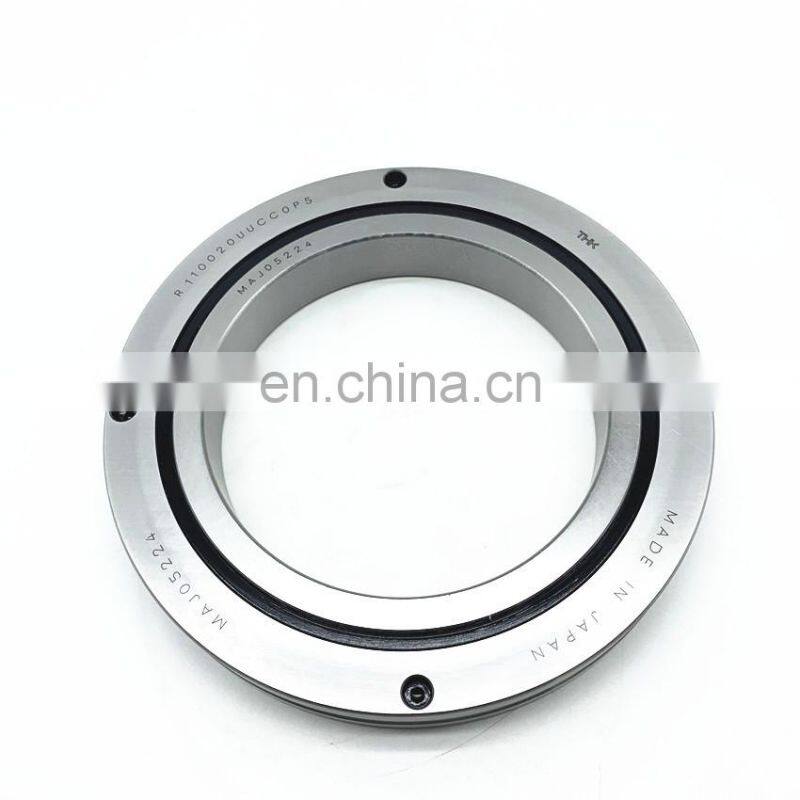

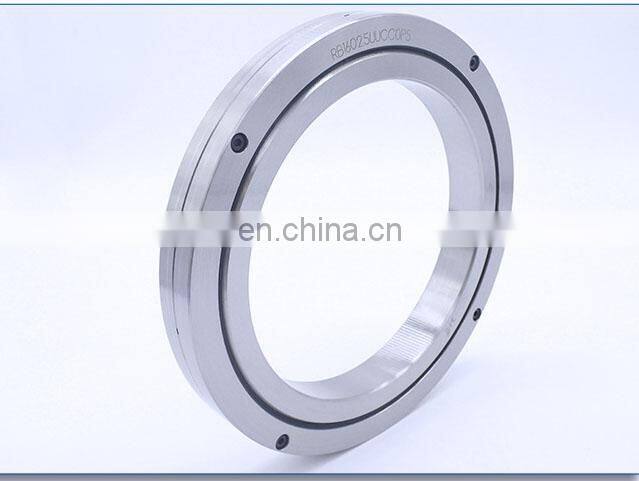

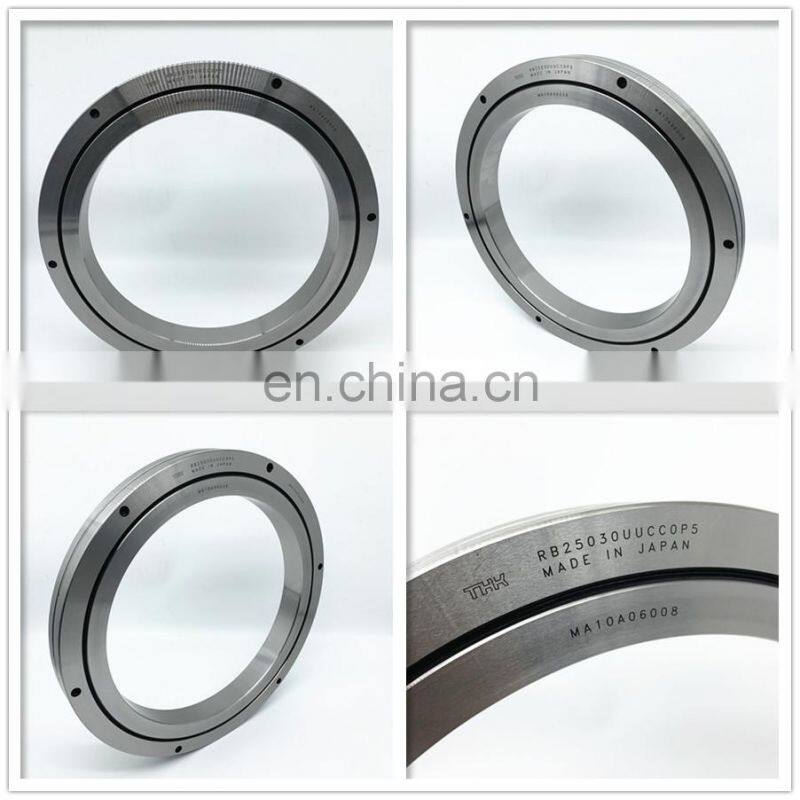

Detailed Images

thk japan crossed roller bearing RB20025UUCC0P5

THK RB series standard cross roller bearings can replace CRB series and NRXT series ,RB series (inner ring whole, outer ring split) the size of the inner and outer ring is miniaturized to a small extent, the outer ring It is a two-part structure, which is connected by bolts to form a body. The inner ring is an integral structure, which is suitable for places where high precision of rotation of the inner ring is required.

RB 25025 crossed roller bearing models

Model No.	Inner diameter	Outer diameter	Width	Weight
	d	D	B B1	kg
RB 2008	20	36	8	0.04
RB 2508	25	41	8	0.05
RB 3010	30	55	10	0.12
RB 3510	35	60	10	0.13
RB 4010	40	65	10	0.16
RB 4510	45	70	10	0.17
RB 5013	50	80	13	0.27
RB 6013	60	90	13	0.3
RB 7013	70	100	13	0.35
RB 8016	80	120	16	0.7
RB 9016	90	130	16	0.75
RB 10016	100	140	16	0.83
RB 10020	100		150	20	1.45
RB 11012		135	12	0.4
RB 11015	110	145	15	0.75
RB 11020		160	20	1.56
RB 12016	120	150	16	0.72
RB 12025	120		180	25	2.62
RB 13015	130	160	15	0.72
RB 13025	130		190	25	2.82
RB 14016	140	175	16	1
RB 14025	140		200	25	2.96
RB 15013		180	13	0.68
RB 15025	150	210	25	3.16
RB 15030		230	30	5.3
RB 16025	160	220	25	3.14
RB 17020	170	220	20	2.21
RB 18025	180	240	25	3.44
RB 19025	190	240	25	2.99
RB 20025		260	25	4
RB 20030	200	280	30	6.7
RB 20035		295	35	9.6
RB 22025	220	280	25	4.1
RB 24025	240	300	25	4.5
RB 25025		310	25	5
RB 25030	250	330	30	8.1
RB 25040		355	40	14.8
RB 30025		360	25	5.9
RB 30035	300	395	35	13.4
RB 30040		405	40	17.2
RB 35020	350	400	20	3.9
