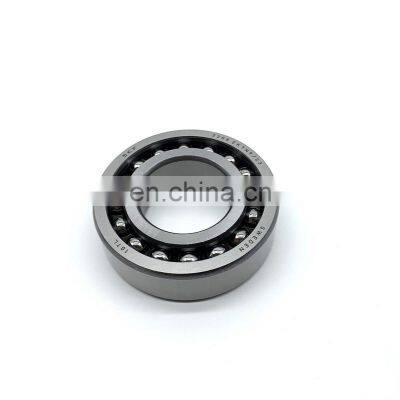

2206ETN9 2206 EKTN9 C3 Self-aligning Ball Bearings 2206K 2206 photo-3
2206ETN9 2206 EKTN9 C3 Self-aligning Ball Bearings 2206K 2206 photo-4

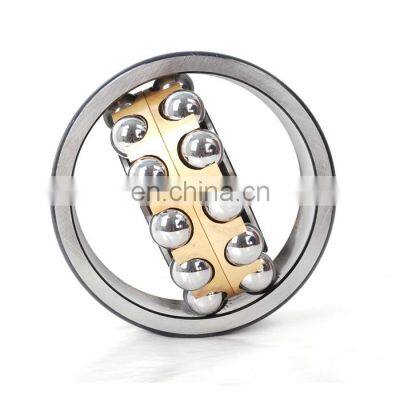

2206ETN9 2206 EKTN9 C3 Self-aligning Ball Bearings 2206K 2206 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2003
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Jinan Landlion Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing , which can be caused, for example, by shaft deflection.

Bearing features Accommodate static and dynamic misalignment The bearings are self-aligning like spherical roller bearings or CARB bearings. Excellent high-speed performance Self-aligning ball bearings generate less friction than any other type of rolling bearing, which enables them to run cooler even at high speeds. Minimum maintenance Because of low heat generation, the bearing temperature is lower, leading to extended bearing life and maintenance intervals. Low friction Very loose conformity between balls and outer ring keeps friction and frictional heat at low levels. Excellent light load performance Self-aligning ball bearings have low minimum load requirements. Low noise Self-aligning ball bearings can reduce noise and vibration levels, for example, in fans.
Bearings
2206ETN9 2206E-2RS1TN9
type
double row ball bearing
d
30 mm
D
62 mm
B
20 mm
weight
0. 256KG
Package
BOX,CARTON,WOODEN,PALLETS
Payment
TT,WESTER UNION,PAYPAL
Time
3-5DAYS
Application
Automatic controlling machine
Semi-conductor industry
General industry machinery
Medical equipment
Metallurgy
Detailed Images
Recommend Products
Bearings Size
Bearing No.
Boundary Dimensions
Mass
mm
kg
d
D
B
≈
2200
10
30
14
0.047
2201
12
32
14
0.051
2202
15
35
14
0.06
2203
17
40
16
0.088
2204
20
47
18
0.14
2204K
20
47
18
0.137
2205
25
52
18
0.157
2205K
25
52
18
0.153
2206
30
62
20
0.256
2206K
30
62
20
0.25
2207
35
72
23
0.392
2207K
35
72
23
0.382
2208
40
80
23
0.493
2208K
40
80
23
0.482
2209
45
85
23
0.54
2209K
45
85
23
0.528
2210
50
90
23
0.583
2210K
50
90
23
0.569
2211
55
100
25
0.787
2211K
55
100
25
0.769
2212
60
110
28
1.08
2212K
60
110
28
1.06
2213
65
120
31
1.44
2213K
65
120
31
1.41
2214
70
125
31
1.52
2215
75
130
31
1.58
2215K
75
130
31
1.54
2216
80
140
33
1.99
2216K
80
140
33
1.95
2217
85
150
36
2.54
2217K
85
150
36
2.49
2218
90
160
40
3.19
2218K
90
160
40
3.12
2219
95
170
43
3.89
2219K
95
170
43
3.8
2220
100
180
46
4.65
2220K
100
180
46
4.54
2221
105
190
50
6.07
2222
110
200
53
7.1
2222K
110
200
53
6.94

We also supply & produce
Ball Bearing
Deep Groove Ball Bearing
60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **,
160 **(70001 )
Thrust Ball Bearing
511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 **
(91681), 5692 ** (91682) series
Angular Contact Ball bearing
SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series
Roller Bearing
Spherical Roller bearing
239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638
(3738), 2644 (3844) and so on
Taper Roller Bearing
329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979),
3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779),
3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings such as
938/932 single and double row i.e M255410CD etc.
Thrust Roller Bearing
292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series.
Cylindrical Roller Bearing
NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split
Bearings 412740, 422740 used in cement industry.And FC, FCD series used in steel Industry.
