Original NSK 706 Angular Contact Ball Bearing 706CTYNP5 706CTYNDBLP5 P4
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Auto Bearing F-239495.04 Angular Contact Ball Bearing F-239495.03.SKL F-239495.04.SKL-H79
-
CF5002-ASSY Cam Follower Bearings CF5002 Agricultural Machinery Bearing CF5002-ASSY
-
BECBM Angular Contact Ball Bearing 7315 Rotary Drilling Rig Bearing 7315
-
CF5002-ASSY Pick up Cam Follower CF 5002-ASSY Agricultural Machinery Bearing
-
YS12902S02 SNR Double Row Angular Contact Ball Bearing GB12902S02 Bearing Size 108*168*51
-
7008CHQ1P4 Hybrid Ceramic Angular Contact Bearing 7008 P4 Spindle Bearings 7008 H7008C P4 2RZ
Product Description
Product Description

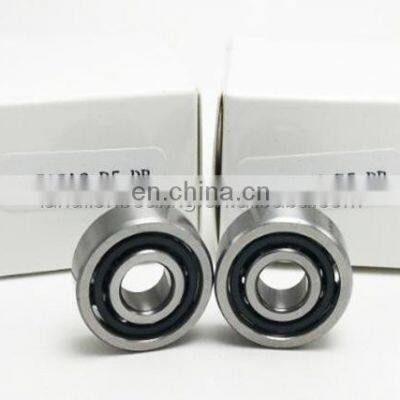

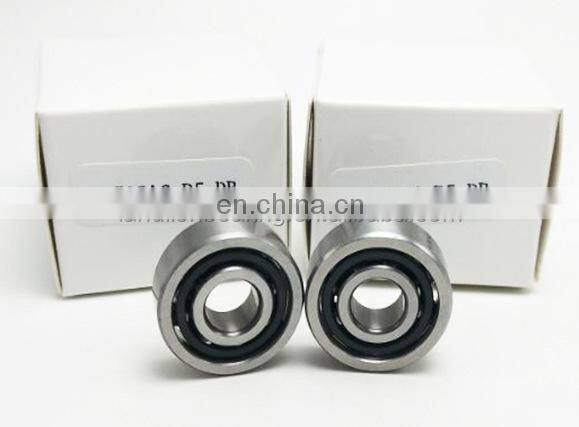

original NSK 706 Angular contact ball bearing 706CTYNP5 706CTYNDBLP5
Structure-Angular Contact ball
Model number-706CTYNP5
Size :Inner ring(mm)-6 Outer ring(mm)-17Width(mm)-6 Weight(Kg)-0.025
Materials-Chrome steel/GCR15
cermica balls /chrome steel
Precision grade-P4/P2/P5
Lubrication type-Grease lubrication
Contact Angle-C=15°;AC=25°
Material(Ball)-SN24:Ceramic ball(Si3N4)
Number of Row-Single rows
Material(Cage)-TN /PN
Combination-
SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows
Categories:Angular Contact Ball Bearings Ceramic Ball Bearings
Related Search:706AC / CHQ1P4,706C Ceramic Ball Bearings,706C Spindle bearing,706C High Speed Bearing
Product Features

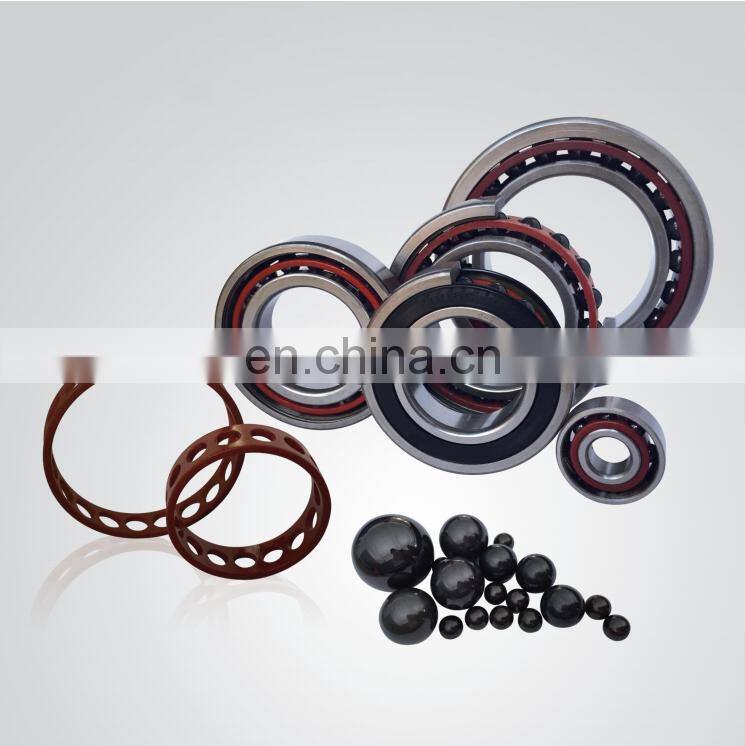

Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors
Series Introduction
High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed
bearings-70 Series Angular Contact Bearings Series
Model No.
7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,
7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1
Applications High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrialequipment
Product Features
Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors
Series Introduction
High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed
bearings-70 Series Angular Contact Bearings Series
Model No.
7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,
7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1
Applications High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrialequipment

name | Angular contact ball bearing 706CTYNP5 |
ball material | chrome steel |
ID | 6 mm |
OD | 17 mm |
B | 6 mm |
Product weight | 0.011kg |
Cage Material: | TN |
material | chrome steel |
Tel | +86-18710180456 |
original NSK 706 Angular contact ball bearing 706CTYNP5 706CTYNDBLP5



Related Products

bearing | d | D | B | c | Da | da | contact angle | weight KG |
B7000-C-2RSD-T-P4S-UL | 10 | 26 | 8 | 6.4 | 22 | 14 | 15° | 0.02 |
B7001-C-2RSD-T-P4S-UL | 12 | 28 | 8 | 6.7 | 24.5 | 16.5 | 15° | 0.02 |
B7002-C-2RSD-T-P4S-UL | 15 | 32 | 9 | 7.6 | 28 | 19 | 15° | 0.03 |
B7003-C-2RSD-T-P4S-UL | 17 | 35 | 10 | 8.5 | 32 | 21 | 15° | 0.04 |
B7004-C-2RSD-T-P4S-UL | 20 | 42 | 12 | 10.2 | 37 | 25 | 15° | 0.07 |
B7005-C-2RSD-T-P4S-UL | 25 | 47 | 12 | 10.8 | 42 | 30 | 15° | 0.08 |
B7006-C-2RSD-T-P4S-UL | 30 | 55 | 13 | 12.3 | 49 | 36 | 15° | 0.11 |
B7007-C-2RSD-T-P4S-UL | 35 | 62 | 14 | 13.5 | 56 | 41 | 15° | 0.15 |
B7008-C-2RSD-T-P4S-UL | 40 | 68 | 15 | 14.7 | 62 | 46 | 15° | 0.19 |
B7009-C-2RSD-T-P4S-UL | 45 | 75 | 16 | 16 | 69 | 51 | 15° | 0.24 |
B7010-C-2RSD-T-P4S-UL | 50 | 80 | 16 | 16.7 | 74 | 56 | 15° | 0.25 |
B7011-C-2RSD-T-P4S-UL | 55 | 90 | 18 | 18.7 | 83 | 62 | 15° | 0.38 |
B7012-C-2RSD-T-P4S-UL | 60 | 95 | 18 | 19.4 | 88 | 67 | 15° | 0.4 |

Product packaging
Packing :
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
