Germany brand HCS7007C-T-P4S-DU L sealed hybrid ceramic bearing 7007 2rz spindle bearing 7007

Name: Germany brand HCS7007C-T-P4S-DU L sealed hybrid ceramic bearing 7007 2rz spindle bearing 7007
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Germany brand HCS7007C-T-P4S-DUL sealed hybrid ceramic bearing 7007 2rz spindle bearing 7007

Structure-Ceramic Ball/Angular Contact ball

Model number-

HCS7007C.T.P4S.UL

seal: sealed

Size :Inner ring(mm)-35 Outer ring(mm)-62 Width(mm)-14 Weight(Kg)-0.17kg

Materials-Chrome steel/GCR15

Precision grade-P4/P2/P5

Lubrication type-Grease lubrication

Contact Angle-C=15°;AC=25°

Material(Ball)-SN24:Ceramic ball(Si3N4)

Number of Row-Single rows

Material(Cage)-TN /PN

Combination-

SU:Universal combination (single row)

DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows

Categories:Angular Contact Ball Bearings Ceramic Ball Bearings

Related Search:7007AC / CHQ1P4,7007C Ceramic Ball Bearings,7007C Spindle bearing,7007C High Speed Bearing
Product Features
Angular Contact Ball bearing with Ceramic balls (Si3N4), used in high precision Spindle and Motors
Series Introduction
High Speed Ceramic Ball Type:ISO 10 Series - highest load, second lowest speed
bearings-70 Series Angular Contact Bearings Series
Model No.
7000HQ1,7001HQ1,7002HQ1,7003HQ1,7004HQ1,7005HQ1,7006HQ1,7007HQ1,7008HQ1,7009HQ1,
7010HQ1,7011HQ1,7012HQ1,7013HQ1,7014HQ1,7015HQ1,7016HQ1,7017HQ1,7018HQ1
Applications High Speed Ceramic Ball Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrialequipment

• metal cutting and woodworking machinery spindles
• other machine spindles (e.g. balancing machines)
• high speed rolling mills
• printing machinery
• precision ball screws
• live centres
• high speed turbochargers
• vacuum pumps
• racing cars
• boat gyrostabilizers
• machine components for the semiconductor industry

name	High Speed Spindle Bearing P4 Angular Contact Ball Bearing Steel Ball Bearing HCS7007C.T.P4S.UL
ball material	Si3N4
ID	35mm
OD	62mm
B	14mm
Product weight	0.17kg
Cage Material:	TN
material	chrome steel
seal	sealed or Open
Tel	+86-18753110215 lbc001 at

NSK MACHINE TOOL SPINDLE BEARING 7006 7007 7008 7009 HCS7007C.T.P4S.UL
H7007C 2RZ HQ1 P4 sealed hybrid ceramic bearing 7007 hq1 7007 2rz spindle bearing 7007 hq1

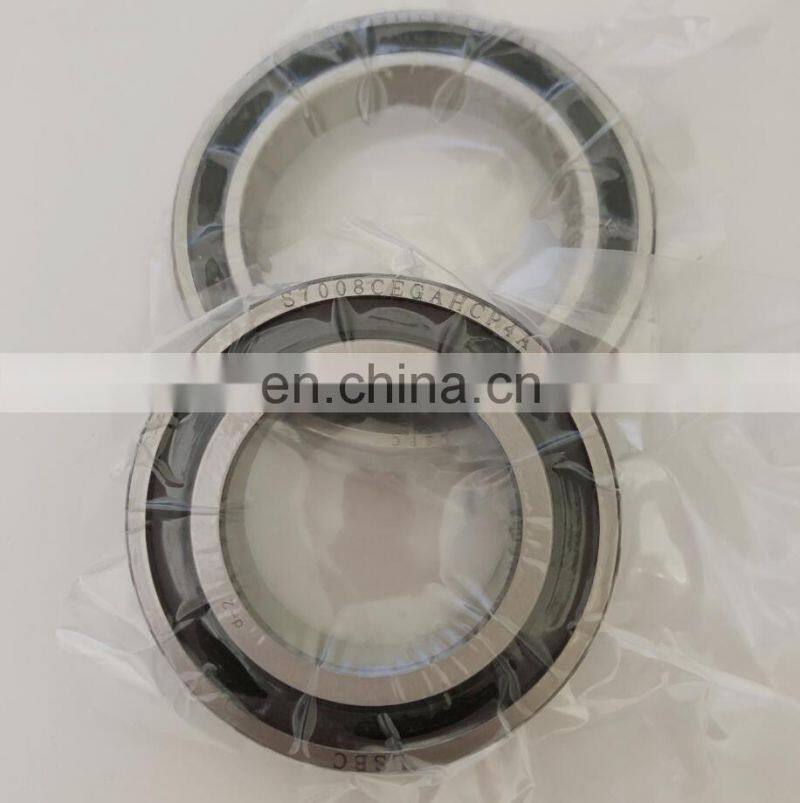

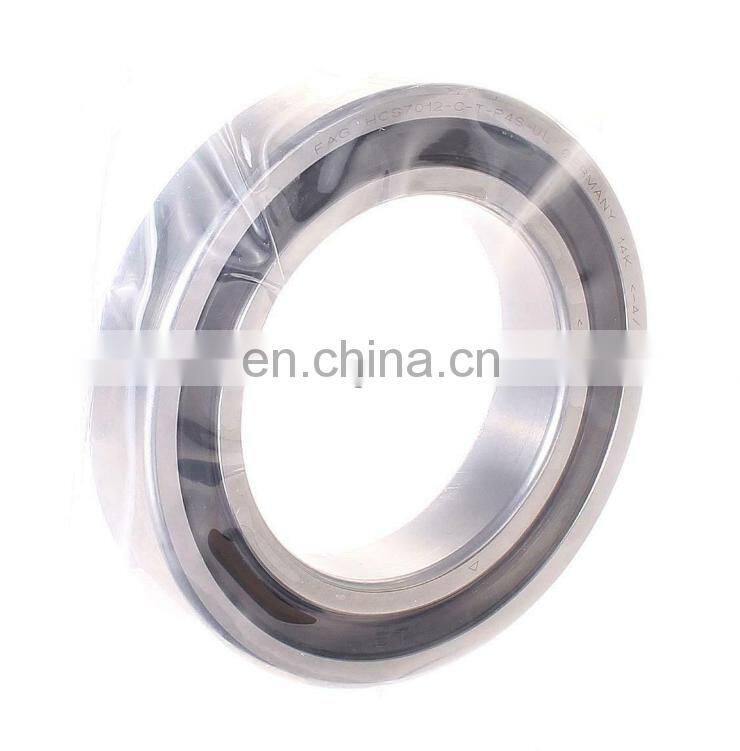

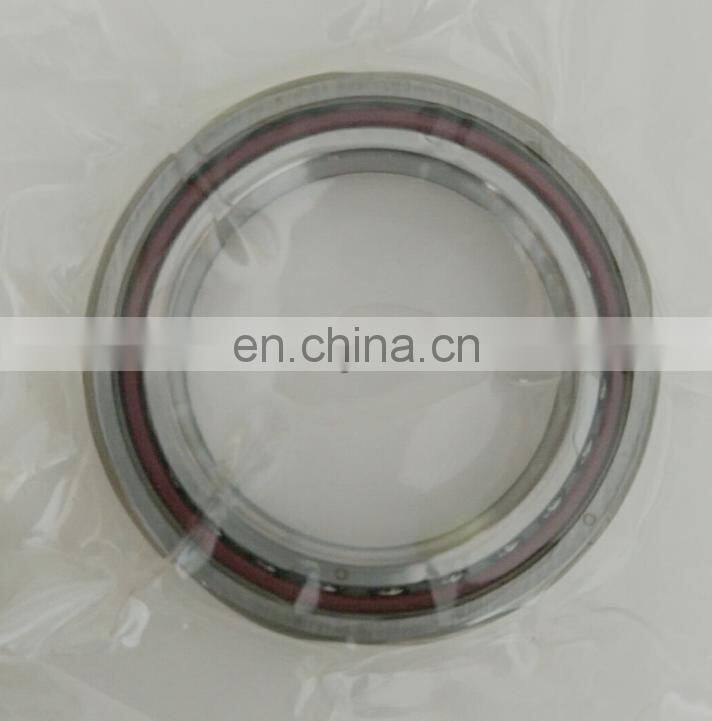

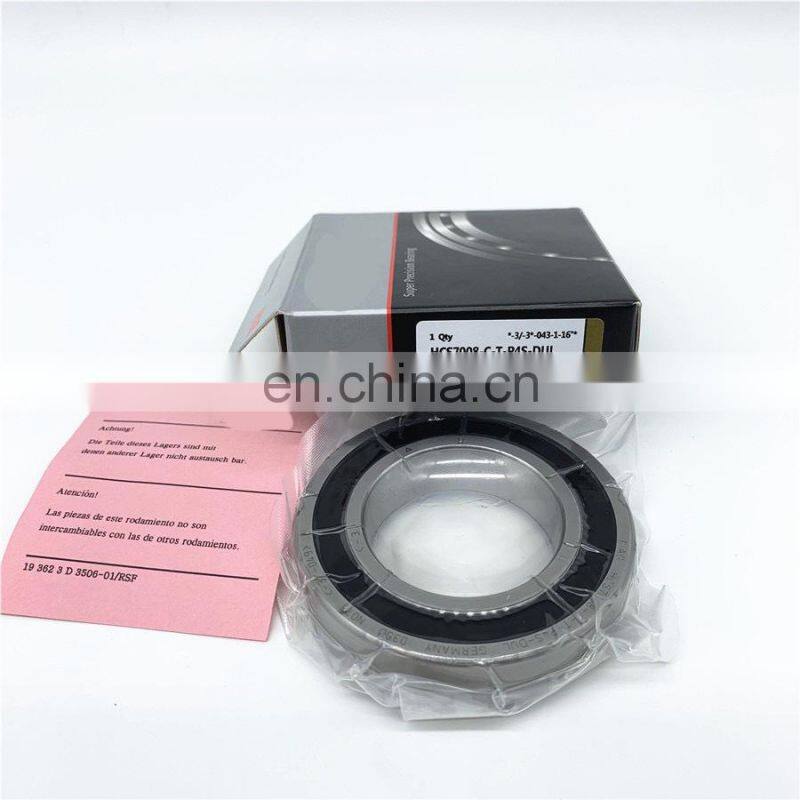

the bearing picture :

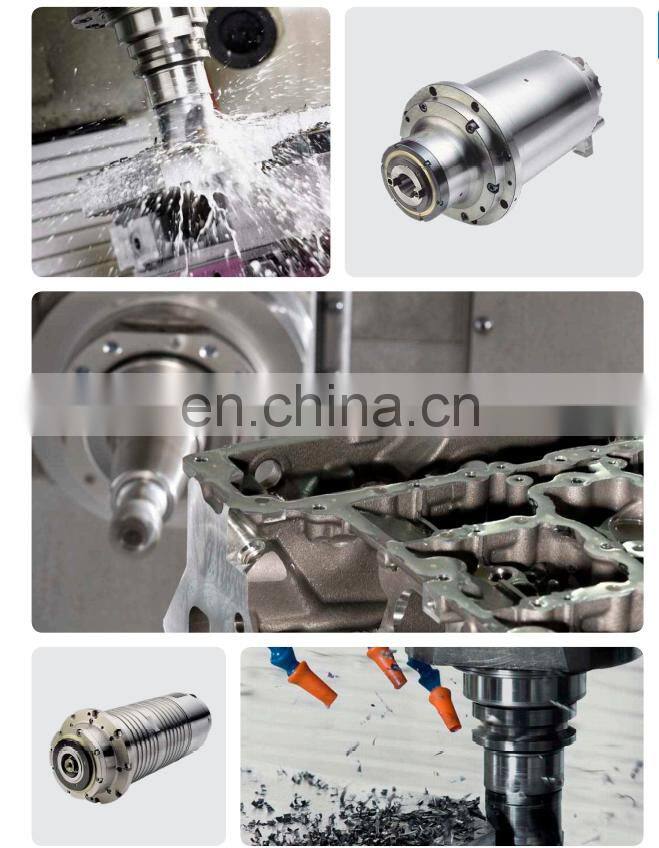

High Speed Ceramic Ball Angular contact bearing applications

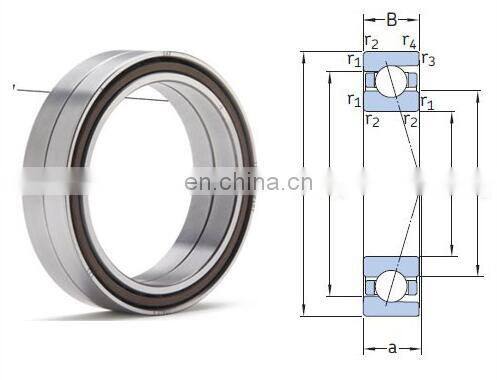

bearing	d	D	B	c	Da	da	contact angle	weight KG
B7000-C-2RSD-T-P4S-UL	10	26	8	6.4	22	14	15°	0.02
B7001-C-2RSD-T-P4S-UL	12	28	8	6.7	24.5	16.5	15°	0.02
B7002-C-2RSD-T-P4S-UL	15	32	9	7.6	28	19	15°	0.03
B7003-C-2RSD-T-P4S-UL	17	35	10	8.5	32	21	15°	0.04
B7004-C-2RSD-T-P4S-UL	20	42	12	10.2	37	25	15°	0.07
B7005-C-2RSD-T-P4S-UL	25	47	12	10.8	42	30	15°	0.08
B7006-C-2RSD-T-P4S-UL	30	55	13	12.3	49	36	15°	0.11
B7007-C-2RSD-T-P4S-UL	35	62	14	13.5	56	41	15°	0.15
B7008-C-2RSD-T-P4S-UL	40	68	15	14.7	62	46	15°	0.19
B7009-C-2RSD-T-P4S-UL	45	75	16	16	69	51	15°	0.24
B7010-C-2RSD-T-P4S-UL	50	80	16	16.7	74	56	15°	0.25
B7011-C-2RSD-T-P4S-UL	55	90	18	18.7	83	62	15°	0.38
B7012-C-2RSD-T-P4S-UL	60	95	18	19.4	88	67	15°	0.4

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
