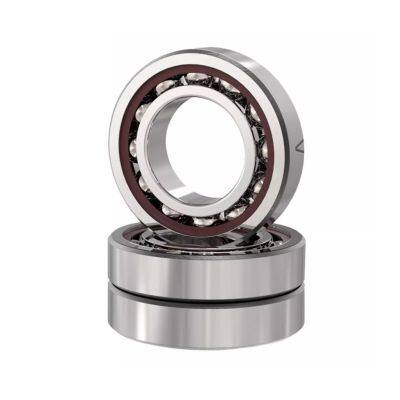

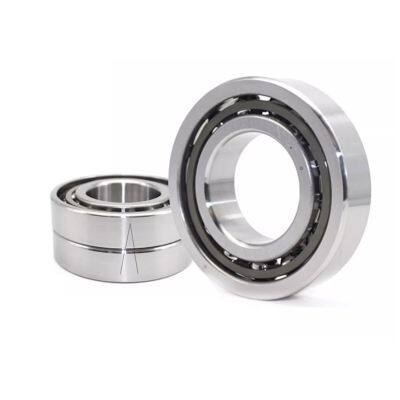

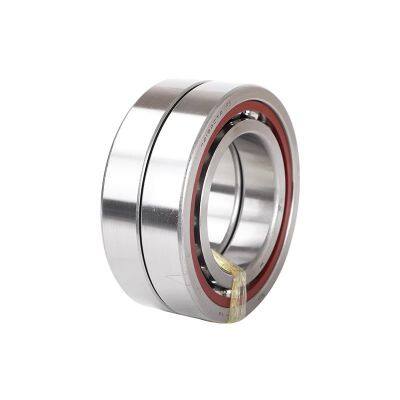

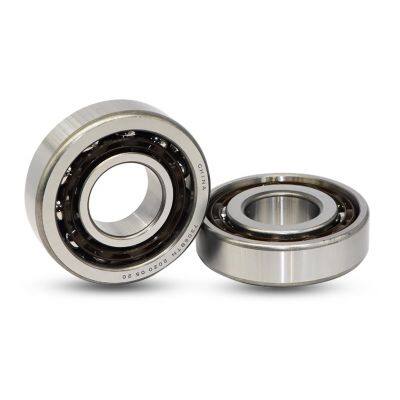

Home > Industrial Equipment & Components > Bearing > Angular Contact Ball Bearing > 7307A5hu9 Low Temperature Submersible Pump Cryogenic Bearing
US$ 25
≥100 Pieces
Key Specifications
Get Latest Price
Material:
PTEF
Rows Number:
Single
Aligning:
Non-Aligning Bearing
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
30 days
Related Products
-
B7006-C-T-P4s Ultra High Speed Spuer Precision Ball Bearing for Spindle Machine ToolUS$ 30MOQ: 10 Pieces -
7307A5hu9 Cryogenic High-Speed Low Temperature Bearing Used for Turbo Expanders and Rocket TurbopumpsUS$ 30MOQ: 10 Pieces
-
HR33012P6 Super Precision Tapered Roller Bearings High Precision High Speed High RigidityUS$ 55MOQ: 100 Pieces
-
CRBT505A Crossed Roller Bearing Servo Harmonic Drive Reduction Gearbox Reducer Cross Roller Bearing ActuatorUS$ 55MOQ: 100 Pieces
-
Zklf3080-2RS-PE Superior Quality Machined Brass Cage Single Row Angular Contact Ball BearingUS$ 8MOQ: 10 Pieces
Material
PTEF
Rows Number
Single
Aligning
Non-Aligning Bearing
Separated
Unseparated
Contact Angle
25°
Load Direction
Radial Bearing
Transport Package
Single Box
Specification
35*80*21mm
Trademark
MONTON
Origin
Luoyang
Basic Info.
Model NO.
7307A5hU9
Separated
Unseparated
Rows Number
Single
Load Direction
Radial Bearing
Material
PTEF
Od
35mm
ID
80mm
B
21mm
Mass
0.45kg
Transport Package
Single Box
Specification
35*80*21mm
Trademark
MONTON
Origin
Luoyang
HS Code
84821020
Production Capacity
1000PCS/Week
Product Description
| Name | angular contact ball bearing |
| Seires | 73 series |
| Brand | MONTON |
| Model | 7307A5hU9 |
| d | 35 |
| D | 80 |
| B | 21 |
| Ring Material | 440C Stainless Steel/ Cronidur30/G95Cr18/CrMoVN16 |
| Cage Material | Special cage material |
| r | 1.5 |
| Load rating Cdyn | 30.6kN |
| Load rating Costat | 19.6kN |
| Attainable speed /Grease | contact technical |
| Attainable speed /Oil | contact technical |
| Sealed | as customer requested |
| Weight | 0.45KG |
| Bearing Arrangement | N/A |
| Design Structure | Deep groove |
| Precision | P4,P5 or as customer requested |
| Vibration | ZV1, ZV2, ZV3, or as customer requested |
| Clearance | C0, C2, C3, or as customer requested |
| Quality standard | ISO9001: 2000/SGS |
| Package | single box |
| Original | Luoyang |
| Service | OEM |
| Delivery date | Accordingly |
| Application | LNG,CNG,LPG,LN2,LO2,LH2,LAr Liquified Gas Pump |
Low temperature bearing
LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.
Now we have the below codes under production and have stock:
MTS6205PTSN
MTS6206PTSN
MTS6207PTSN
MTS6208PTSN
MTS6209PTSN
MTS6210PTSN
MTS6211PTSN
MTS6212PTSN
MTS6213PTSN
MTS6214PTSN
MTS6215PTSN
MTS6216PTSN
MTS6217PTSN
MTS6311PTSN
MTS6312PTSN
MTS6313PTSN
MTS6314PTSN
MTS6315PTSN
MTS6316PTSN
MTS6317PTSN
MTS6318PTSN
MTS6319PTSN
MTS6320PTSN
MTS6321PTSN
MTS6322PTSN
