Product Description

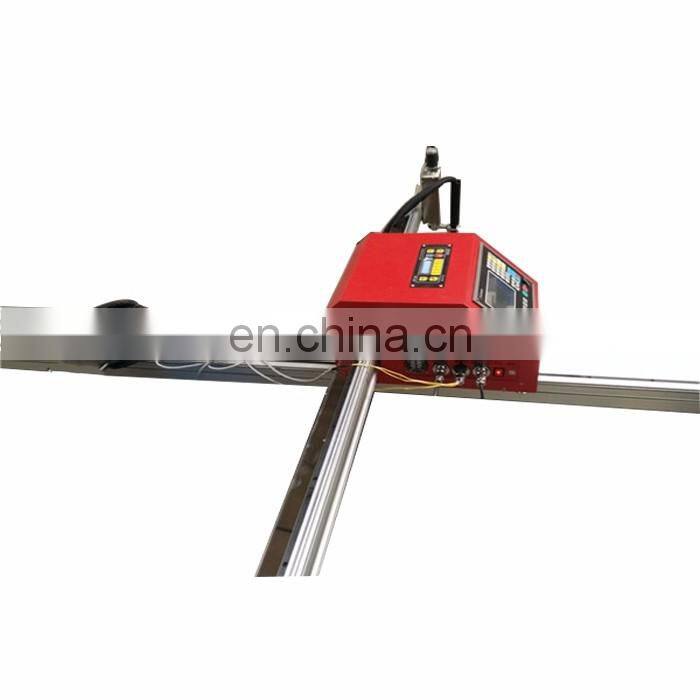

1500*3000mm portable cnc plasma cutting machine for 10mm

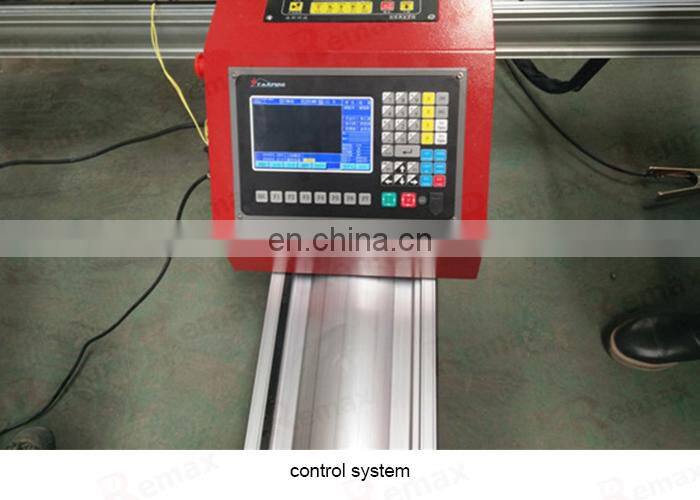

2. The CNC controller box is new design, this system is more stable when the machine working.
3. Transfer and storage of files is Convenient and flexible: support USB interface. The user could output the required cutting file to the U disk, and then plug the U disk into the USB interface of cutting machine, so file transfer can be realized.
Description | Parameter | ||||||
Product name | 1500*3000mm portable cnc plasma cutting machine for 10mm | ||||||
model | R-1525(Portable) | ||||||
Cutting range | 1500*2500(mm) | ||||||
Traveling speed | 7m /min | ||||||
cutting speed | 2-6m/min | ||||||
cutting thickness | 1-30mm (plasma)(Note:Depending on the size of the selected cutting power supply) 5 - ≥100mm (flame) | ||||||
precision of drawing line | 0.2mm | ||||||
working voltage | AC220/380V10% 50Hz | ||||||
power rating | 300W (not include plasma power , air compressor ) | ||||||
Current adjustment mode | Stepless continuous adjustable | ||||||
Air compressor specification | Recommended air consumption ≥180L/min,6kg/cm2 | ||||||

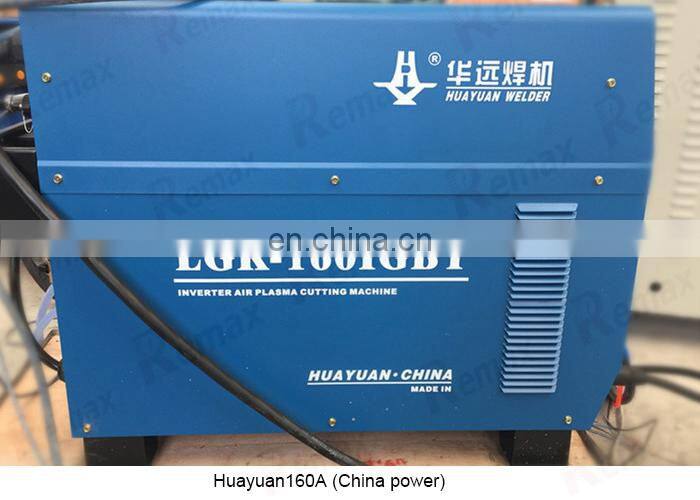

Plasma Power | According to the product requirement, the customer can choose the plasma power supply, or own purchase power supply take 160A as an example, need AC380 VX 10% 50Hz 20KVA, load rate 60% | ||||||
Detailed Images

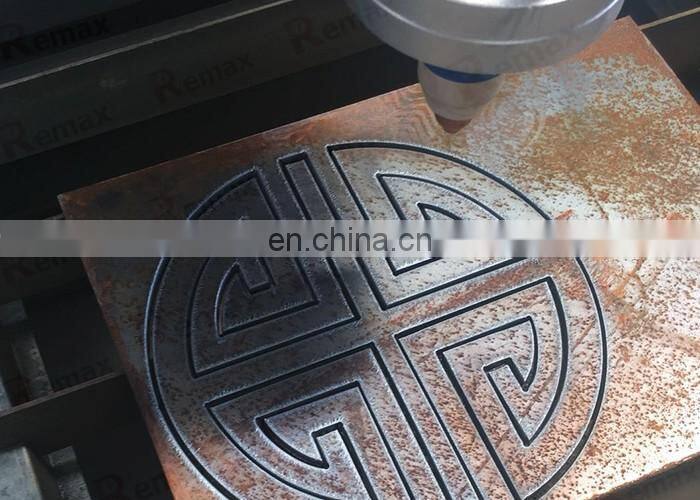

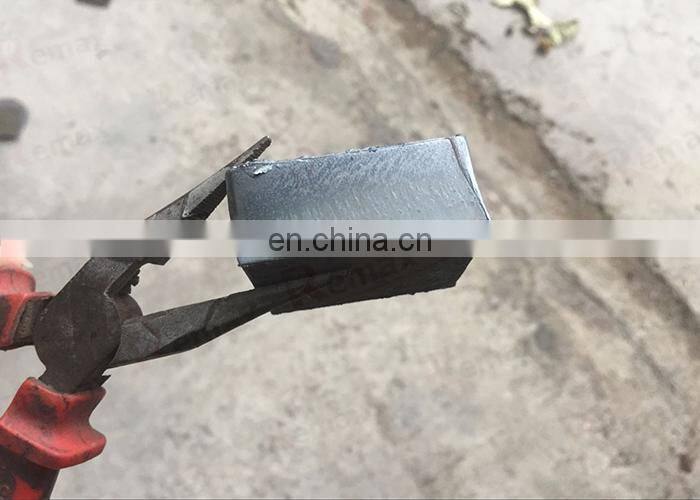

Sample
Packing&Shipping
We use 3 layers package
2 The middle ,the machine is covered by foam ,to protect the machine for shaking and hitting.
3 The outside we use the International standard plywood box for exportation.
After Sales Service
Certifications
Company Introduction
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine.
Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers.
We not only produce machines, we provide the best solution for you.
Remax looking forward to being your partner.
