cheap price cnc gantry cnc plasma cutting machine 30140 cnc gantry plasma cutting machine
Application:
Plate plasma cutting machine Remax-30140 it can process steel, copper, aluminum, stainless steel and other metal materials. Suitable for iron plate, aluminum plate, galvanized plate, white steel plate, titanium plate and other similar metal plates etc.
Features:
1.All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric
automatic lifting,to assure cutting speed and quality.
2.Dual drive , stable performance .
3.The set-up is very simple, all kinds of CAD graphics can be read directly by our
system trough U-disk.
The software can be edict graphics automatically.
4.Plate plasma cutting machine Collocated U-disk interface and cutting code auto converting
software for CAD drawing, CAD drawing can be input directly into the cutter through U-disk.
Machine parameter:
|
Model |
Remax-30140 gantry plasma cutting machine |
|
Plasma power |
HYPERTHERM 125A |
|
Drive Mode |
Bilateral-side |
|
CNC system |
Beijing START CNC |
|
Plasma cutting speed |
50-6500 mm/min |
|
Cutting torch lifting distance |
150mm |
|
Speed setting error |
≤±5% |
|
Max Idle running speed |
12000mm/min |
|
Torch height controller accuracy |
≤±1.0mm |
|
Longitudinal line accuracy |
±0.2mm/10m |
|
Motor and driver |
panasonic servo motor and driver |
|
Drive Method |
Rack and square rails for X Y Z axis |
|
Power Source |
380V 50/60Hz |
|
Height controller(plasma) |
HYDTHC |
|
Plasma cutting thickness |
1-32mm |
|
length of a side |
±0.5mm |
|
Diagonal error |AD-BC| |
±0.5mm |
|
Base point return error |
±0.2mm |
|
Intersection point error |
±0.5mm |
|
Lineation forward- reverse error |
±0.2mm |
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
Youwill also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
Certifications

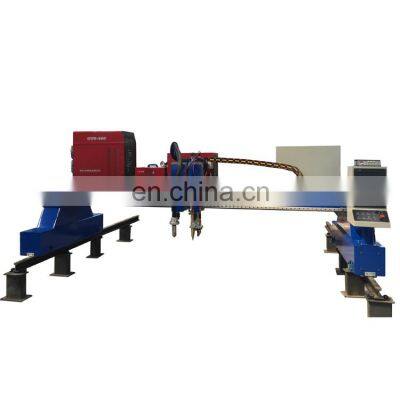

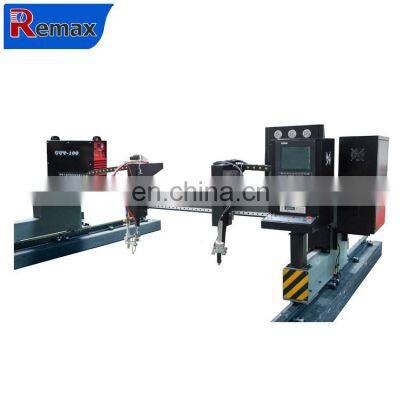

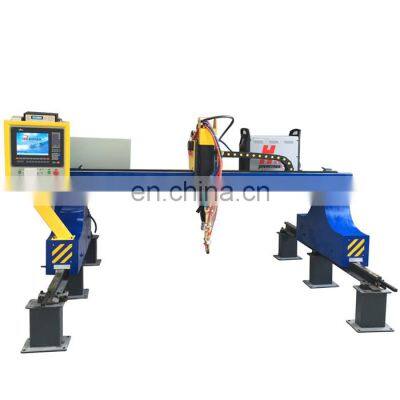

Machine pictures:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
