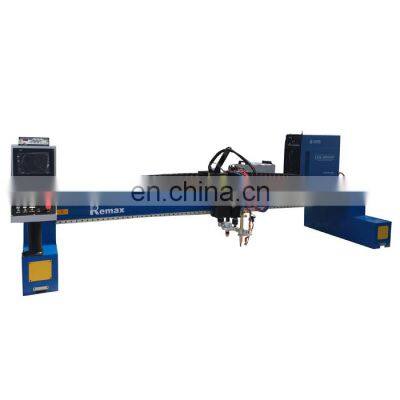

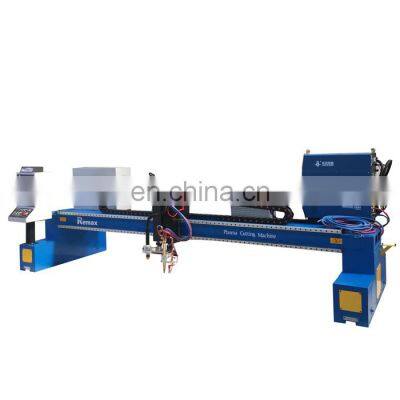

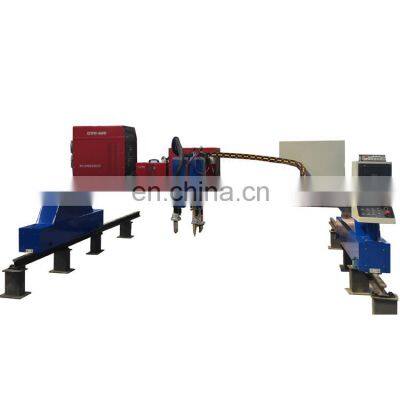

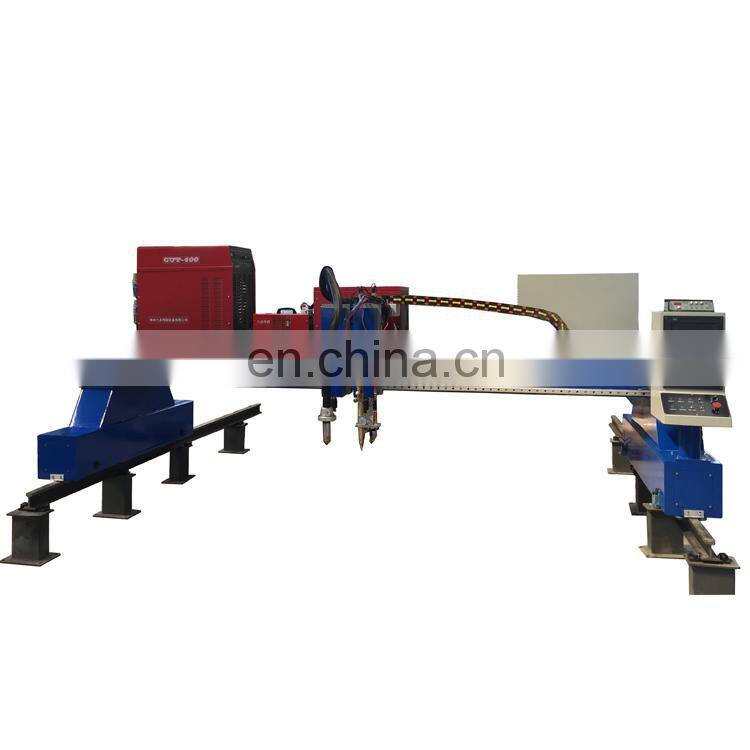

3018 Gantry CNC Plasma Cutting Machine Cutting Metal Big Working Size:
Product Description
Features:
1.All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.2.Dual drive , stable performance .
3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk. The software can be edict graphics auautomatically.
4.Collocated U-disk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.
5.Tips for each operation is displayed at the screen at any moment ,so operators can use our system without being trained or reading the instructions.
6.Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.
7.There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.
8.With break point or interruption of power ,memory function.
Product parameter:
Model | 3018 CNC gantry plasma cutting machine |
Effective Cutting Width (X axis) | 3000mm |
Effective Cutting Length (Y axis) | 18000mm |
Plasma power | Hypertherm/Huayuan/Jiusheng |
Drive Mode | Bilateral-side |
CNC system | Beijing START CNC |
Plasma cutting speed | 50-6500 mm/min |
Cutting torch lifting distance | 150mm |
Speed setting error | ≤±5% |
Max Idle running speed | 12000mm/min |
Torch height controller accuracy | ≤±1.0mm |
Longitudinal line accuracy | ±0.2mm/10m |
Motor and driver | stepper motor and leadshine driver |
Gearbox | Hubei planet |
Drive Method | Rack and square rails for X Y Z axis |
Moving Precision | 0.01mm per step |
Power Source | 380V 50/60Hz |
Plasma cutting thickness | 1-32mm |
length of a side | ±0.5mm |
Diagonal error |AD-BC| | ±0.5mm |
Base point return error | ±0.2mm |
Intersection point error | ±0.5mm |
Lineation forward- reverse error | ±0.2mm |

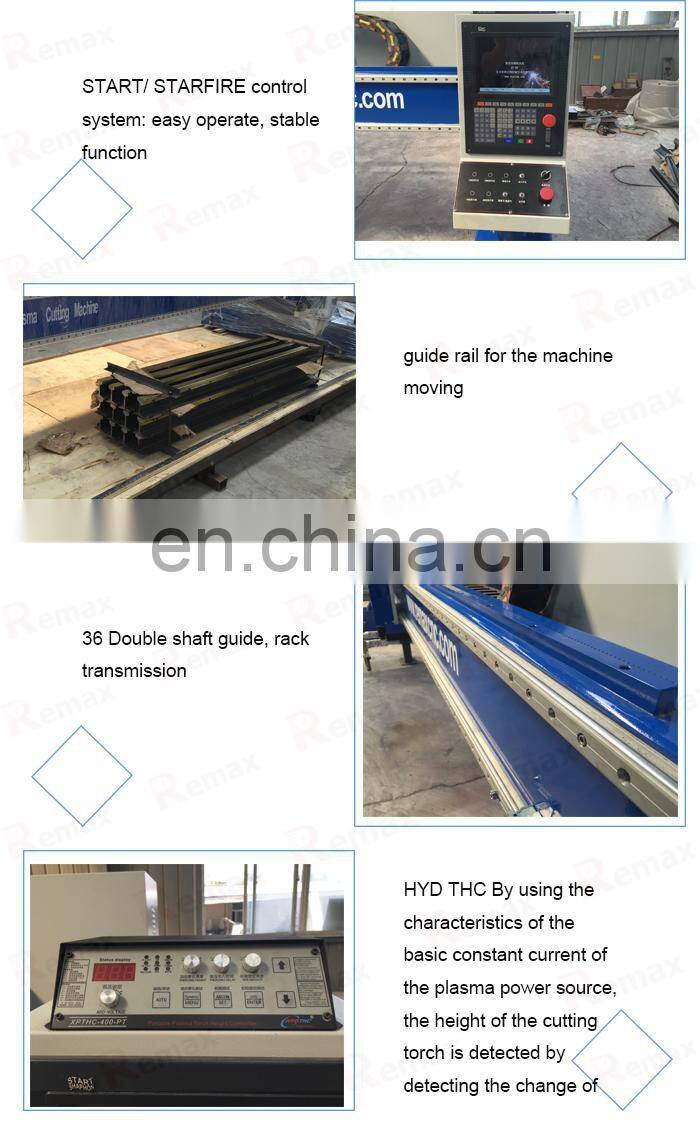

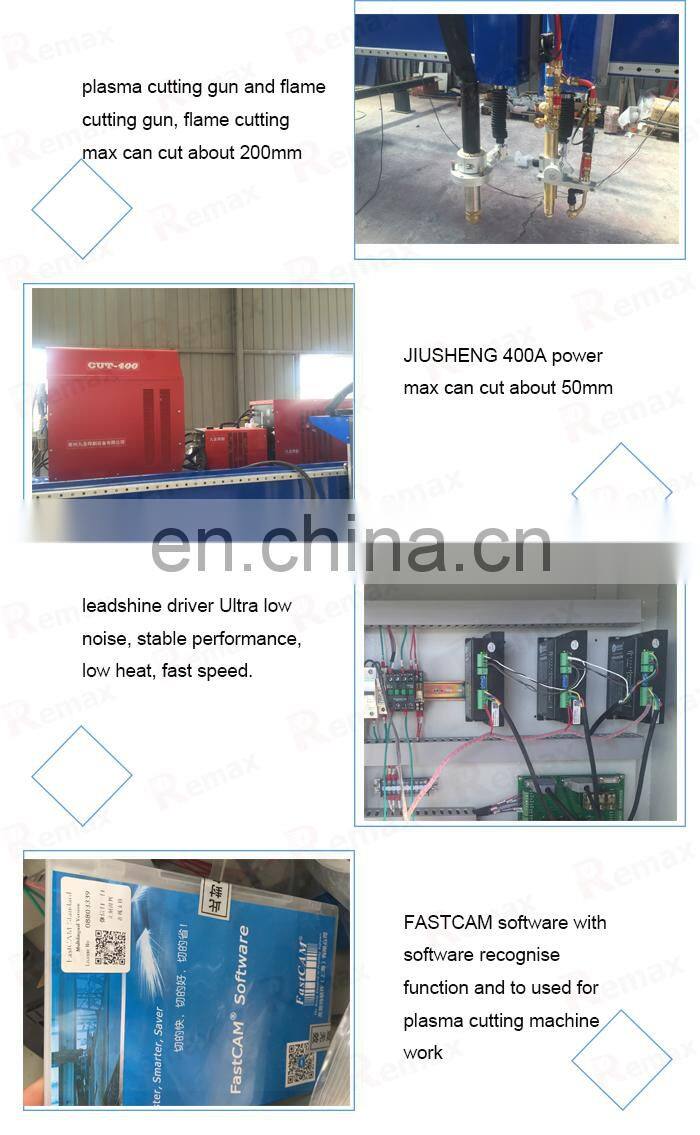

Detailed Photos
Samples
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNC router machines, CNC laser machine, CNC plasma cutting machine. Our company sets research and development, production, sales, maintenance services as a whole,Our products have covered advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD /CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields have been completely replacing imported similar products. The company will continue to adopt international advanced production technology and production processes, development and production of high quality, the high price ratio of numerical control equipment, continuing to create maximum value for customers.
Company Information
Packing & Delivery
Customer feedback
Our Service
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
