RYW Series Roll-type Paper Embossing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
KINGSUN
Place of Origin:
China
Model Number:
RYW
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo, China
Delivery Detail:
40 days
Related Products
-
YW-E Series Automatic Paper Embossing MachineNegotiableMOQ: 1 Set -
LPM Series Label Punching MachineNegotiableMOQ: 1 Set
-
KZX-320 Intermittent Offset Label Printing Machine (PS Plate)NegotiableMOQ: 1 Set
-
WQ-320 Model Lable Screen Printing MachineNegotiableMOQ: 1 Set
-
EM-320 Model Label InspectorNegotiableMOQ: 1 Set
Brand Name
KINGSUN
Place of Origin
China
Model Number
RYW
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

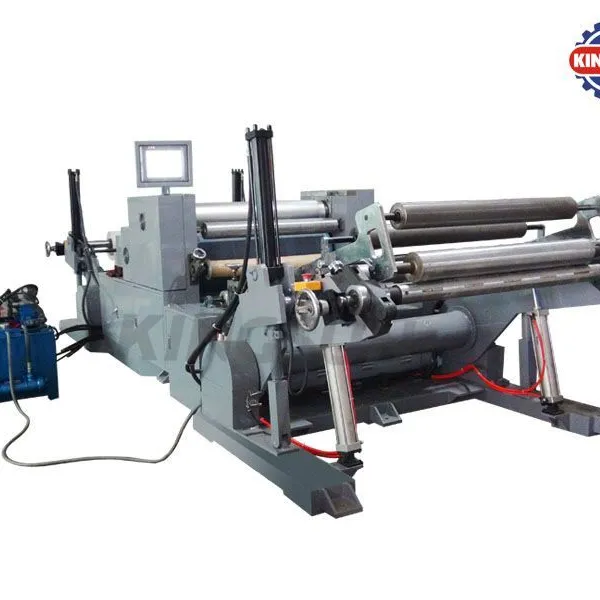

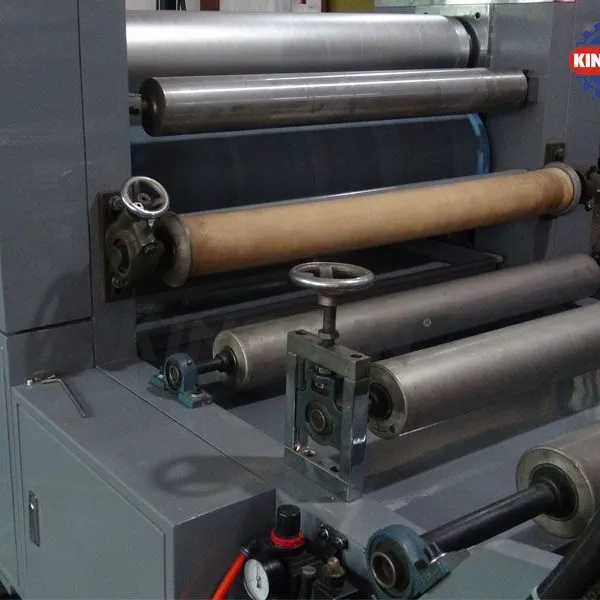

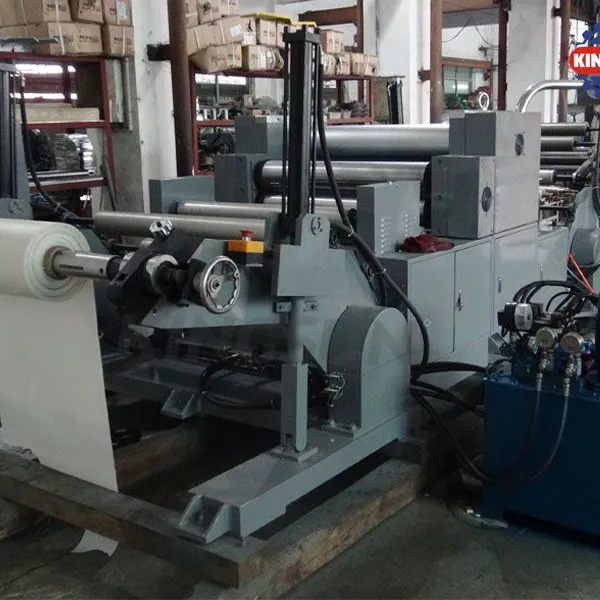

RYW Series Roll-type Paper Embossing Machine
Introduction:
This paper embossing machine is suitable for embossing all kinds of paper,special paper,aluminum foil etc.The weight of material is 30-400g.
Features:
1.automatic hydualic lift device to make the operation easier
2.automatic tension control for unwinding and rewinding
3.Man-machine interface
Technical Specification:
Model |
RYW-920A |
RYW-1150A |
RYW-1300A |
Max embossing speed |
60m/min |
60m/min |
60m/min |
Max embossing width |
920 |
1150 |
1300 |
Paper weight |
30-400gsm |
30-400gsm |
30-400gsm |
Operation pressure |
2-10Mpa |
2-10Mpa |
2-10Mpa |
Main power |
4.0kw |
4.0kw |
4.0kw |
Total power |
20kw |
22kw |
24kw |
Air sourve pressire |
0.8Mpa |
0.8Mpa |
0.8Mpa |
Dimension |
4800x2100x1450mm |
4800x2230x1450mm |
4800x2520x1450mm |
Weight |
4500kg |
5500kg |
6500kg |
