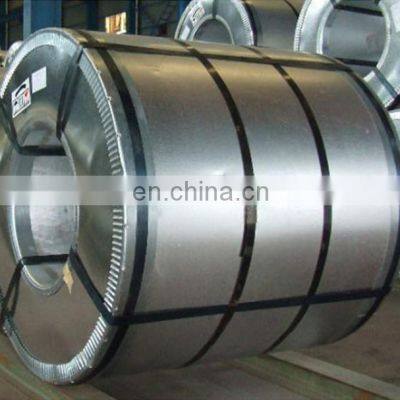

Oriented Electrical Steel Coils 30Q120 Silicon Steel Plate Coil Processing Slitting and Distribution Silicon Steel Coil
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2007
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Goss Texture, I.e. a Preferred Crystal Orientation Grain-oriented Silicon Steel for Core Material in Electrical TransformersNegotiableMOQ: 1 -
Shandong Ganquan 65mn Steel Strip Cheap Factory Price Metal Iron Cold Rolled Coil Steel StripNegotiableMOQ: 1
-
Shandong Ganquan 65Mn 60Si2A High Carbon Cold Rolled Polished Spring Coil Steel StripNegotiableMOQ: 1
-
Shandong Ganquan Cold Rolled Low Carbon Annealed Black Steel Strip, C35 C50 Spring Steel StripNegotiableMOQ: 1
-
High Quality 0.3mm Tempered Spring Steel 65MN CK45 CK 52 Steel Belt Ex-factory PriceNegotiableMOQ: 1
Silicon Steel Coil
Specification
Product Name |
Cold Rolled Grain Oriented Silicon Steel |
||||||
Standard |
B23G110, B27G120, B35G155, B23R080-B27R095 |
||||||
Thickness |
0.23mm-0.35mm |
||||||
Width |
20mm-1250mm |
||||||
Length |
Coil Or As Required |
||||||
Technique |
Cold Rolled |
||||||
Surface Treatment |
Coated |
||||||
Application |
Widely used in transformers, generators, various household motors and micro-motors, etc. |
||||||
Special Use |
Silicon Steel |
||||||
Sample |
For Free （Within 10 KG） |
||||||
The direction of easy magnetization grains of oriented electrical steel is distributed along the rolling direction. The rolling direction has excellent characteristics such as high magnetic induction, low iron loss and low magnetostriction. At the same time,it can also be processed by magnetic domain refinement technology to obtain lower iron Loss of performance, widely used in the field of transformer industry. The grain direction of non-oriented electrical steel is randomly distributed, and the electromagnetic properties are uniform in all directions. It is widely used in the motor industry.
The difference between oriented silicon steel and non-oriented silicon steel
Non-oriented silicon steel: ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips, which are mainly used to manufacture motors and generators.
Oriented silicon steel: It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N).
Non-oriented silicon steel: ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips, which are mainly used to manufacture motors and generators.
Oriented silicon steel: It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N).
Product Advantages
1.Stable performance
2.Excellent processing performance: High precision dimension and excellent mechanical properties make it easy to be sheared,punched and stacked by high speed punch machine. It also have good welding performance.
3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and
excellent processing performance
1.Stable performance
2.Excellent processing performance: High precision dimension and excellent mechanical properties make it easy to be sheared,punched and stacked by high speed punch machine. It also have good welding performance.
3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and
excellent processing performance
