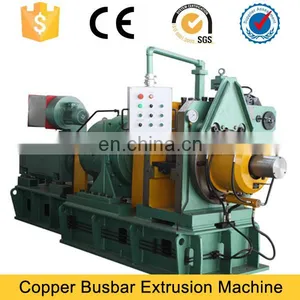

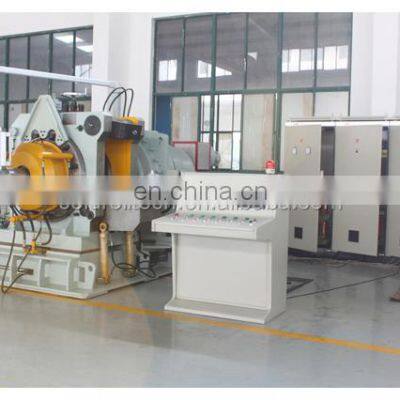

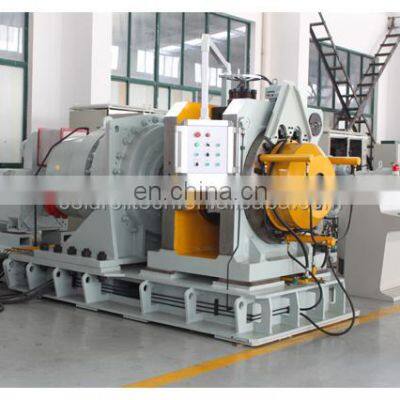

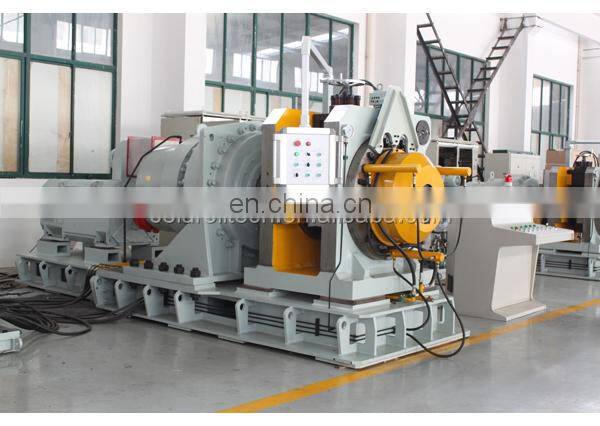

CEM350 Copper Busbar Extrusion Machine
Features
1. Due to continuous extrusion technique, the copper busbar continuous rotary extrusion line can complete make copper busbar extrusion at one time, without the need for edge trimming, acid pickling, etc.
2. The continuous extrusion equipment won't cause production wastes such as the scrap edge of copper busbar, or the residuals in the extrusion barrel. This ensures high raw material utilization rate, and our first pass yield exceeds 95%.
3. Adopting friction force for feedstock heating, our machine eliminates heating and annealing steps. This makes sure the production process is simplified and environmental friendly as well due to lower energy consumption and lower carbon emission.
4. Continuous rotary extrusion machines support producing products with unlimited length. Coupled with the automatic take-up unit, makes our machine highly efficient.
Applications

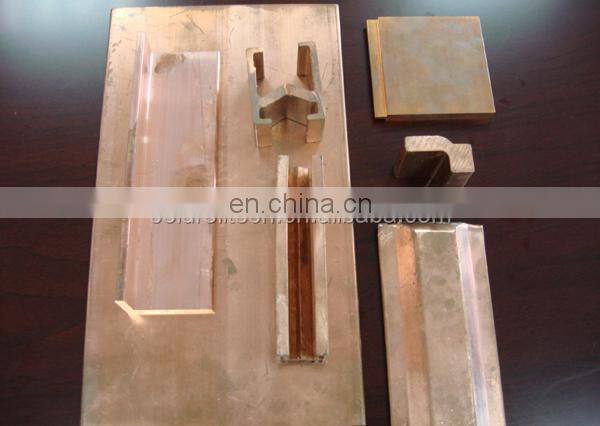

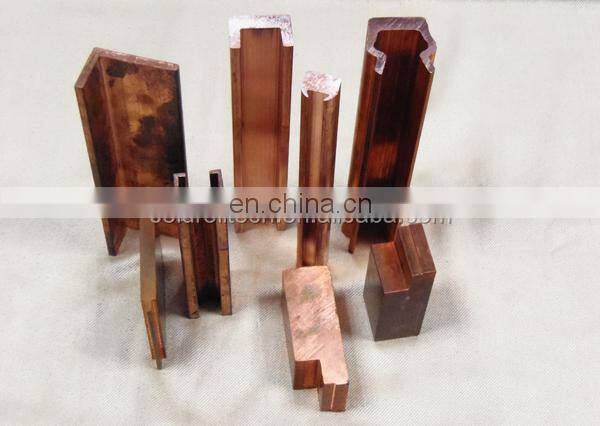

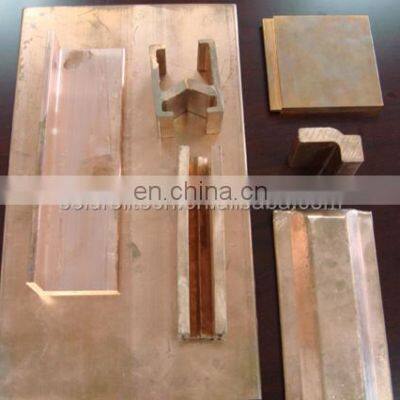

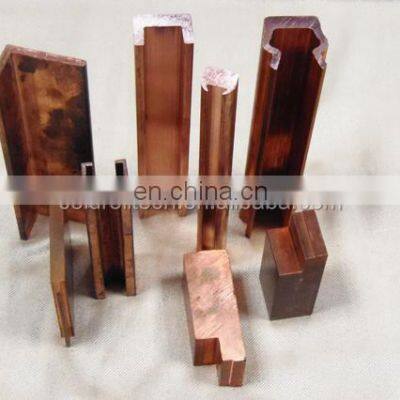

CEM350 range of continuous rotary extrusion equipment offers an ideal solution to make copper busbars, and other types of copper products by changing the extrusion die. The extruded copper products are widely used in electric motors, power distribution cabinets, transformers, etc.
|

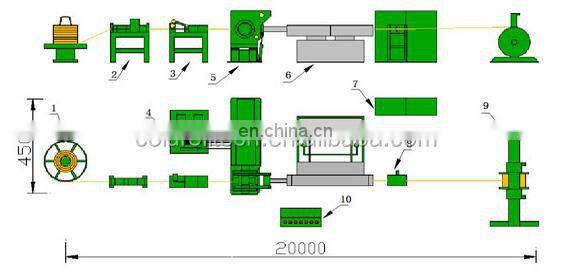

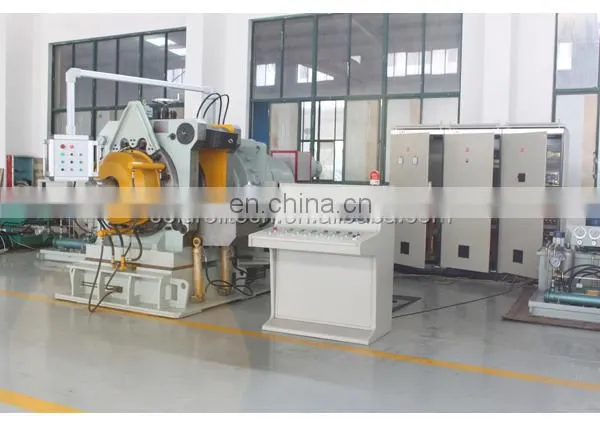

Copper Busbar Production Line Layout
| |
|
1. Payoff Machine 2. Straightening Unit 3. Cutting Machine 4. Continuous Extrusion Machine 5. Cooling and Drying System |
6. Meter Counter 7. Take-up machine 8. Hydraulic and Lubrication System 9. Electric Control Cabinet 10. Operation Console |
Technical Specifications
| Main Functional Unit: Continuous Extrusion Machine | |
| Model | TJ350 |
| Nominal Diameter of Extrusion Wheel | 350 mm |
| Rated Rotation Speed | 12 RPM |
| Power of Main Motor | 200kW |
| Feed Stock (Copper Rod) | |
| Diameter | 16 mm |
| Diameter Tolerance | ±0.2mm |
| Yield Strength | 160MPa (Oxygen-free Copper Rod Produced by Upward Casting Process) |
| End Product : Copper Busbar | |
| Sectional Area Range | 100-600mm² |
| Max. Width | 100mm |
| Standard | Conforms to GB5585.1-85 standard |
| Entire Production Line | |
| Average Output | 400-800kg/h |
| Installed Capacity | 380V, 3 phase, 235KVA |
| Flash Amount | 3-5% |
| Workshop | |
| Minimum Dimension | Length: 30m, Width: 9m, Height: 8 m |
| Cooling Water | 80 m³/h (Cooling Tower) |
| Compressed Air | 0.7 MPa, 1 m³/min |
| Operator | 2 |
Main Components of the Production Line
| Copper Rod Payoff Machine | 1 set |
| Copper Rod Straightening Machine | 1 set |
| Copper Rod Cutting Machine | 1 set |
| Copper Continuous Extrusion Equipment | 1 set |
| Cooling and Oxidation Prevention System | 1 set |
| Meter Counter | 1 set |
| TU16 Gantry Type Take-up Machine | 1 set |
| Electrical Control System (with Touch Screen) | 1 set |
| Hydraulic and Lubricating System | 1 set |
