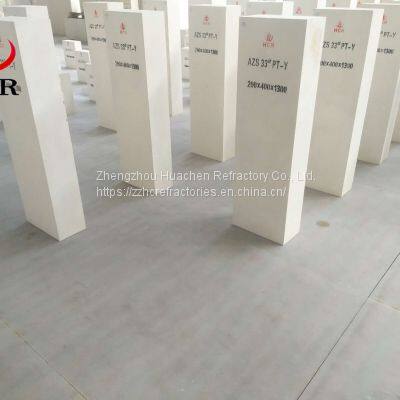

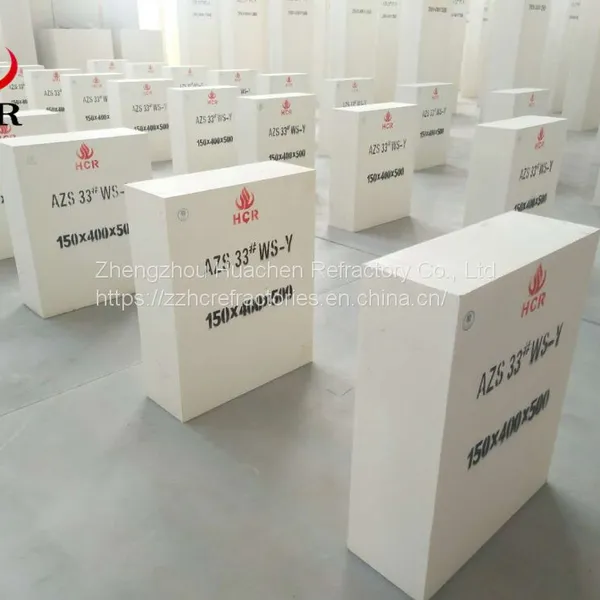

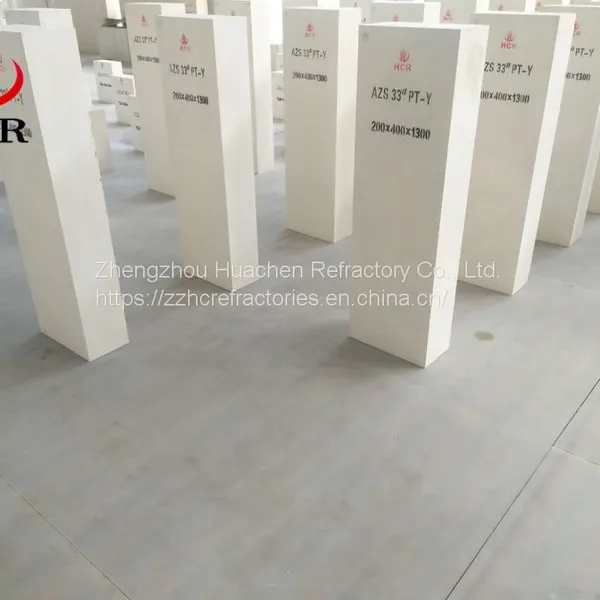

Details of refractory fused AZS block
Fused Cast Bricks are mostly used for glass industry.Typical applications are superstructures, skew blocks, wall bricks and upper-checker in regenerators, paving, sub-paving and forehearth blocks in float glass furnaces.
AZS fused cast block is also called fused cast block which is abbreviated as AZS because it contains Al2O3-ZrO2-SiO2. Fused cast AZS block is made from pure alumina powder and Zircon sand (composed of 65% zirconia and 34% SiO2). After Alumina powder and zircon sand melting in electric furnace, they are casted into various molds and cool themselves down to become white solid. Because of the different content of Zirconia from 33%-41%, our fused cast AZS blocks can be divided into three types AZS—33#,AZS—36# and AZS—41#.
The term Fused Cast refers to a manufacturing process in which the ceramic bonding is obtained by the solidification of a mixture which has been melted in an electric furnace and cast in liquid state into molds.
Refractory fused AZS block characters
1.Best erosion resistance
2. not easy to generate smal bubble
3. good thermal shock resistance
4. stable performance for furnace
5. suitable for structure
6. long service time
Technical data of refractory AZS block
Specification of AZS block |
AZS 33 # |
AZS 36 # |
AZS 41# |
||
Chemical |
Al2O3 |
Remain |
Remain |
Remain |
|
ZrO2 |
32-34% |
35-37% |
40-42% |
||
SiO2 |
Less than 16.0% |
Less than 14.0% |
Less than 13.0% |
||
Na2O |
Less than 1.5% |
Less than 1.6% |
Less than 1.3% |
||
Fe2O3+TiO2+CaO+MgO+Na2O+K2O+B2O3 |
Less than 2.5% |
Less than 2.5% |
Less than 2.5% |
||
Bulk density (dense part) |
3.85g/cm 3 |
3.95g/cm 3 |
4.0g/cm 3 |
||
Apparent porosity (dense part) |
Less than 2.0.% |
Less than 1.5.% |
Less than 1.3.% |
||
Anti-corrosion rate of glass liquid (soda-lime glass, 1500 Celsius 36h) |
Less than 1.6mm/24h |
Less than 1.5mm/24h |
Less than 1.3mm/24h |
||
Bubbling tendency (soda-lime glass, 1300 Celsius 10h) |
Less than 2.0% |
Less than 1.5% |
Less than 1.0% |
||
Exudation temperature of glass phase |
More than 1400 Celsius |
More than 1400 Celsius |
More than 1400 Celsius |
||
Volume |
Normal casting and tilting casting (RC or TC) |
3.45g/cm 3 |
3.5g/cm 3 |
3.55g/cm 3 |
|
End casting (EC |
3.65g/cm 3 |
3.7g/cm 3 |
3.8g/cm 3 |
||
Void free casting (VF) |
3.75g/cm 3 |
3.9g/cm 3 |
3.95g/cm 3 |
||

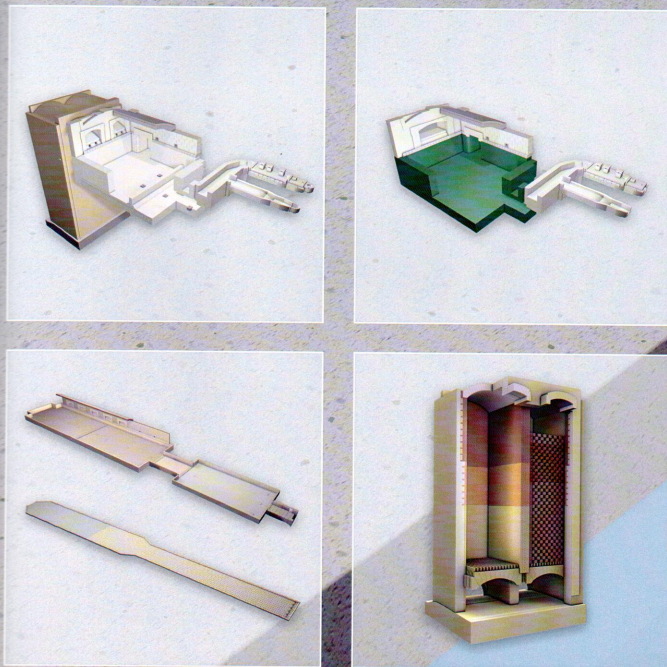

Application of certificate of refractory fused AZS block

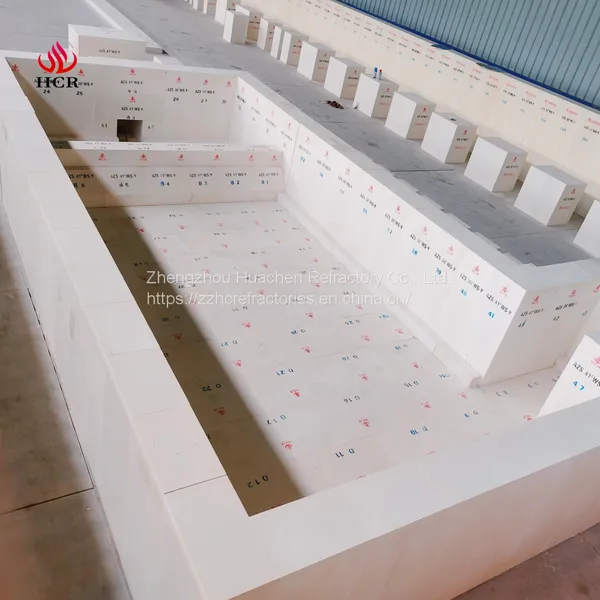

fused Cast AZS block widely used for glass furnace, also can be used for steel kiln ...

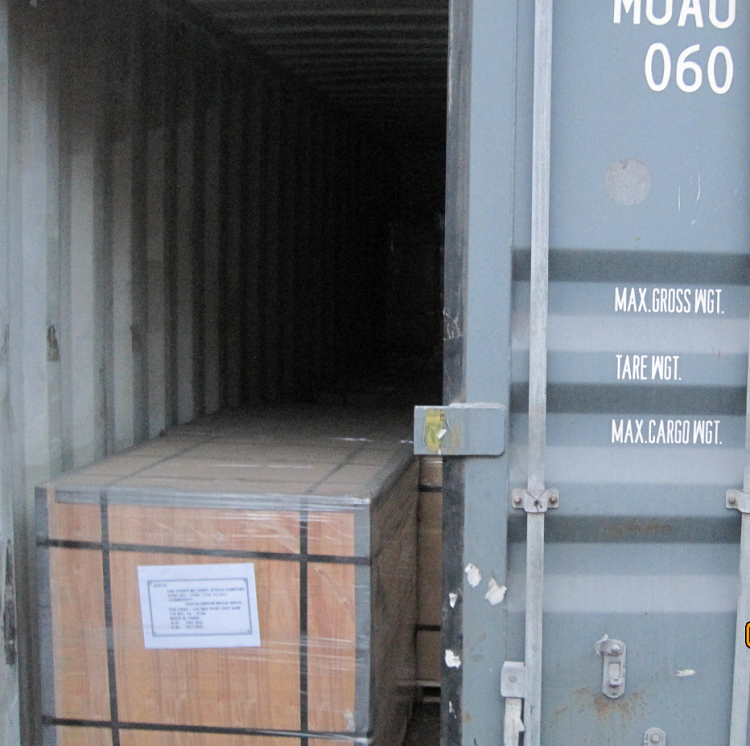

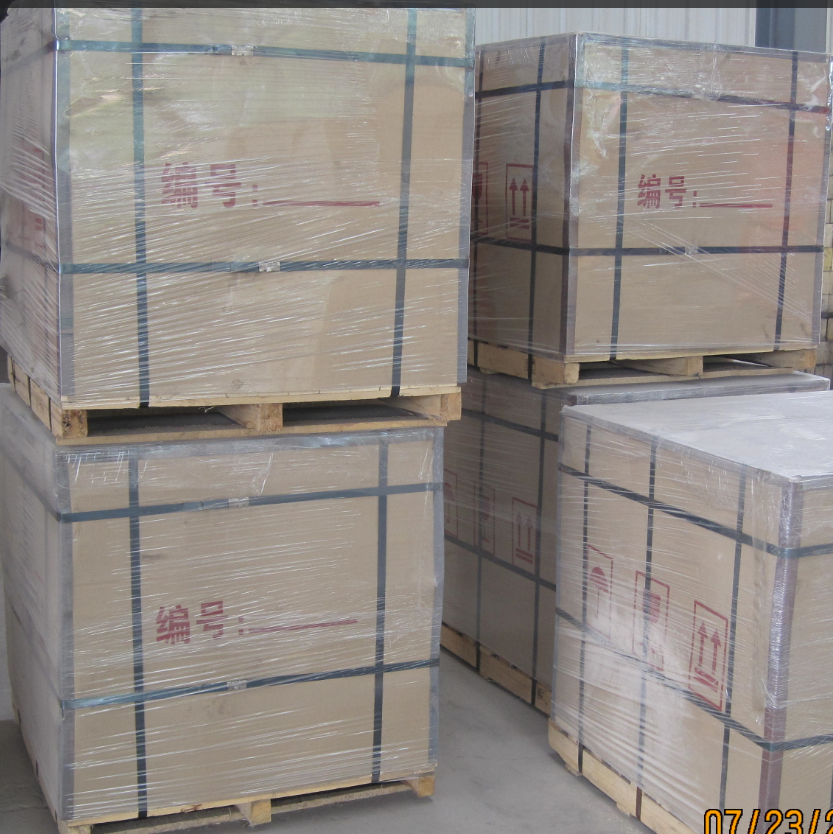

Packaging of refractory fused AZS block
Shipment Details for certificate of fused AZS block

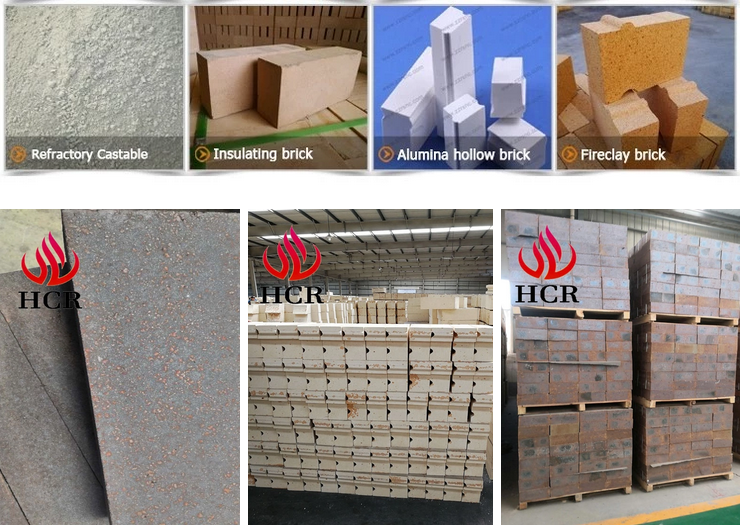

About us
Zhengzhou Huachen Refractory Co.,ltd established in 2003, headquarter is located in Zhengzhou city, which is the capital of Henan Province.
Since the establishment of the company, we have been focusing on research and development of refractory bricks and raw materials, especially fused cast block and the magnesite series bricks and other related materials.
Zhengzhou Huachen Refractory Co.,Ltd expands his sales markets during these years with our hard working, now we have exported our products to America, Australia, Vietnam, Russia, Kazakhstan,Turkey etc, increased with our sale amount, our services have been improving greatly day by day, we believe that our high qualified products and excellent services will meet our clients' needs.
FAQ OF Zhengzhou Huachen Refracory Co.,Ltd
1.How about your payment term ?
• we can accept payment by L/C at sight, T/T with deposit.
2.Do we supply samples?
• Yes,we are pleased to provide free sample you required.
3.What is MOQ?
• No requirement, usually need 5mt, except samples
4.Can the clients visit your factory?
• Of course,we are pleased for this .
5.what is the delivery date usually?
• 20~40days.but usually according to your order quantity.
6.How to ensure the quality of shipping products?
• We have strictly QC required from the raw materials into our factory to the final products leave our warehouse.
• We are pleased if you can arrange inspection before shipment, also we accept the third part inspection.
7.Which certifications do your company have ?
• ISO9001 and Test Report,we can provide other necessary certifications if you need
