High Quality Fused Cast 1681 AZS Glass Melting Furnace

High Quality Fused Cast 1681 AZS Glass Melting Furnace thumbnail-1
High Quality Fused Cast 1681 AZS Glass Melting Furnace thumbnail-2
High Quality Fused Cast 1681 AZS Glass Melting Furnace thumbnail-3
High Quality Fused Cast 1681 AZS Glass Melting Furnace thumbnail-4
High Quality Fused Cast 1681 AZS Glass Melting Furnace thumbnail-5
High Quality Fused Cast 1681 AZS Glass Melting Furnace photo-1
High Quality Fused Cast 1681 AZS Glass Melting Furnace photo-2
High Quality Fused Cast 1681 AZS Glass Melting Furnace photo-3
High Quality Fused Cast 1681 AZS Glass Melting Furnace photo-4
High Quality Fused Cast 1681 AZS Glass Melting Furnace photo-5
US$ 3500 - 4000 MOQ: 3 Tons
Key Specifications
Get Latest Price
Brand Name:
HCR
Place of Origin:
China
Model Number:
AZS
Contact Supplier Request Quote Chat Now
Zhengzhou Huachen Refractory Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HCR
Place of Origin China
Model Number AZS
Shape Brick
Material Other, AL2O3,ZrO2,SiO2
SiO2 Content (%) ≤15.5
Al2O3 Content (%) ≥50.00
SiC Content (%) 0.01%
Refractoriness (Degree) 1770°< Refractoriness< 2000°
Overview
Quick Details

  • Place of Origin:

  •                Henan, China

Shape:                                   Block

  • Material:



  •                          alumina zircon silica

SiO2 Content (%):                 ≤15.5

  • Al2O3 Content (%):

  •         remains

MgO Content (%):                  ≤0.1%

  • CaO Content (%):

  •           ≤0.1%

Refractoriness (Degree):       1770°

  • CrO Content (%):            0

  • SiC Content (%):

  •              0

Model Number:                      HCR AZS

Brand Name:                          HUACHEN

  • ZrO2:                             ≥32.5%

  • Bulk density:

  •                   ≥3.75 g/cm3

Apparent porosity:                   ≤2%

  • CCS:≥300 Mpa


  • Refractory Under Load:

  •       ≥1700°

Na2O:                                     ≤1.4%

Fe2O3+TiO2:                          ≤0.25%



  • Supply Ability

  •              200 Ton/Tons per Month

Packaging & Delivery

  • Packaging Details

    •          woodencase

  • Port

    •                               Tianjin(xingang)

  • Picture Example:


  • package-img
Video Description
00:2700:27
Detailed Description

High quality fused cast 1681 AZS glass melting furnace

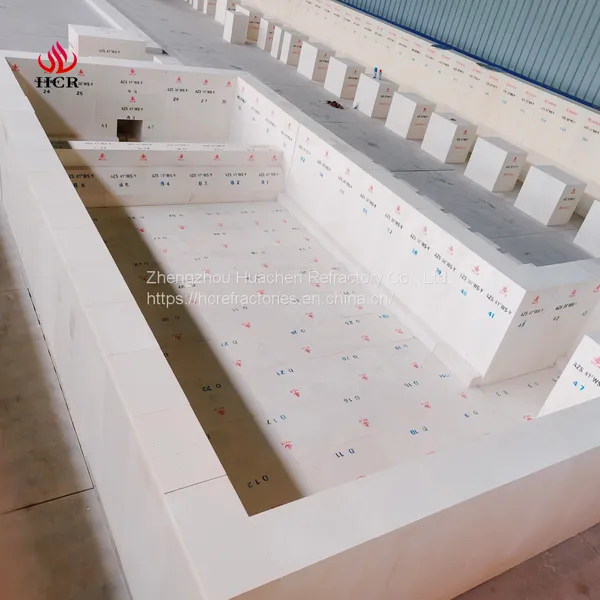

Preassembly of Glass Melting Tank

The glass melting tank is the main component of the glass melting furnace, where the raw materials such as silica sand and soda ash are melted at a high temperature. The sidewall of the tank are usually higher than one meter. There is a weir near the throat dividing the tank into two areas. The bottom of the tank will be covered with paving bricks, usually more than 70mm thick. There will also be small pieces of bricks to cover the gap between the paving brick and the sidewall. Glass melting furnaces are thermal equipment for melting glass and are usually constructed by refractory materials. Fused cast AZS block is the most important materials to ensure the normal operation of the glass melting furnace. The application of fused cast AZS block makes the glass melting furnace with higher melting rate, longer service life time and lower fuel consumption.

High quality fused cast 1681 AZS glass melting furnace

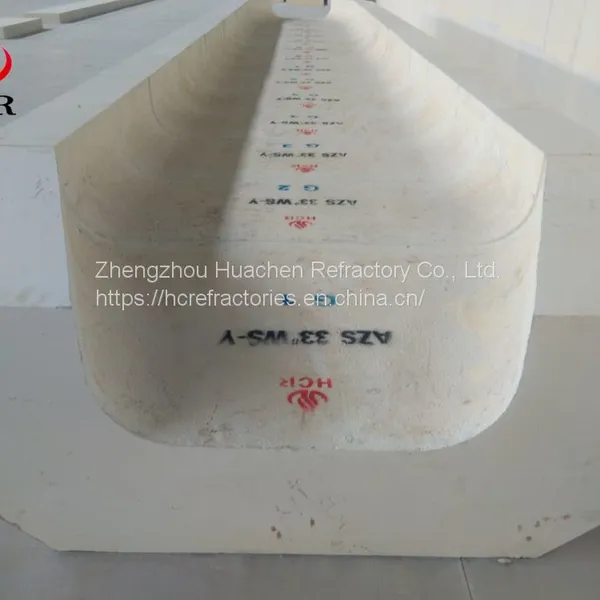

 Above are top crown, paving brick, throat and feeder channel of glass melting furnace.

Fused cast AZS block usually comes in three grades 33#,36#,41#, depending on the content of ZrO2. It has four casting methods: PT,QX,ZWS,WS. Usually the 41#ws block is used in the most difficult working conditions. According to the type of glass liquid and furnace catacity in different area of the furnace to choose different grades AZS blocks, can get as high as possible cost performance. AZS blocks will not contaminate the liquid glass.The following diagram shows the chemical composition of AZS 33# block.



High quality fused cast 1681 AZS glass melting furnace



Technological proces

High quality fused cast 1681 AZS glass melting furnace

Fused cast blocks usually named zircon corundum brick also name AZS bricks( alumina zircon silica ),according to the ZrO2 content difference ,can be named AZS 5.5 ,AZS 12 .AZS 33, AZS 36, AZS 41 and so on. Beside because this type bricks are produced by special electric furnace by model, we also called this products Fused cast AZS bricks. Also according to the brick if have shrinkage cavities, we call them PT, QX, ZWS, WS.

These bricks are widely used for iron & steel furnace and glass furnace, also chemical industrial furnace, especial in the glass furnace, you will find it usually.

High quality fused cast 1681 AZS glass melting furnace



Lab Test

 High quality fused cast 1681 AZS glass melting furnace

Packaging & Shipping

High quality fused cast 1681 AZS glass melting furnace



Company Information

Zhengzhou Huachen Refractory Co.,ltd was founded in 2003, Headquarter is located in Zhengzhou city, which is the capital of Henan Province. Henan province is located in the center of China. Zhengzhou is the center of politics and economy and  traffic center in middle of China. Zhengzhou as the staring port of One Belt and One Road,plays an increasingly important role in the international trade.

   Since established of the company, we are focusing on producing research and development of  refractory bricks and raw materials, especial the fused cast block and the Magnesite series bricks and materials. Now we have two plant, one produce the fused cast blocks, like AZS 33#.36#,41#. the other plant produce the MgO2 series bricks and Al2O3 series bricks, like Magnesite brick, Magnesite-chrome brick, Mg-Al spinel brick, high alumina brick and fire clay bricks ...

    HCR expands his sale market during these years with our hard working, Now we have export out products to America, Australian, Vietnam, Russia, Kazakhstan,Turkey etc, increased with our sale amount, our service is improving greatly day by day, we believe that our high quality products and excellent service will fulfill any requirements from you.

  HCR governed by its commitment to protecting the environment, creating genuine customer value, promoting life-long learning, and assuring a reasonable profit. HCR is dedicated to helping its customers succeed in the competitive marketing and rapidly changing global market by offering uniquely differentiated products.



High quality fused cast 1681 AZS glass melting furnace

 Above are our office building, casting process, insulation can and cutting grinding.

Why Choose US?

China manufacturer produce High quality fused cast AZS block used for glsssware furnace

Competitiveness

1.ISO certificate enterprise.
2.Strictly QC requirement.
3.Advanced technology.
4.Located in raw materials area,supplying us premium quality raw material with competitive price.
5.Convenient transportation, provide quick lead time, reduce the shipment cost.

6.Provide the products solution.
7.Provide the furnace solutions.



FAQ



1.How about your payment term ?

    •   we can accept payment by L/C at sight, T/T with deposit.

2.Do we supply samples?

    •   Yes,we are pleased to provide free sample you required.

3.What is MOQ?

    •   No requirement, usually need 5mt, except samples

4.Can the clients visit your factory?

    •    Of course,we are pleased for this .

5.what is the delivery date usually?

    •    20~40days.but usually according to your order quantity.

6.How to ensure the quality of shipping products?

    •   We have strictly QC required from the raw materials into our factory to the final products  leave our warehouse.

    •   We are pleased if you can arrange inspection before shipment, also we accept the third part inspection.

7.Which certifications do your company have ?

    •   ISO9001 and Test Report,we can provide other necessary certifications if you need .


Product Tags: 1681 AZS bricks , fused cast bricks , refractory bricks used in glass furnace , AZS refractory material , glass industry
