EATON Piloted Check Valve 401AA00001A 4CK301S 401AA00002A 4CK301S3 401AA00065A 4CK301SV 401AA00066A 4CK301SV3
Negotiable
MOQ: 11 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
401AA00001A 4CK301S 401AA00002A 4CK301S3 401AA00065A 4CK301SV 401AA00066A 4CK301SV3
Place of Origin:
Afghanistan
Model Number:
401AA00001A 4CK301S 401AA00002A 4CK301S3 401AA00065A 4CK301SV 401AA00066A 4CK301SV3
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EATON Overcenter Valve 406AA00005A 1CE30F35S5 1CE30F35S10 1CE30F35S2 1CE30F35S5 1CE30F35SV10 1CE30F35SV2 1CE30F35SV5 1CE30-F-7S-10NegotiableMOQ: 11 Pieces -
EATON 1AR60P20S 1AR60P35S 1AR100P20S 1CE120F35S3 1CEBD120F35S3 1CE140F20S4 1CE140F30S4 1CE300F35S3 1CE300F35S8 1CEB300F35S3 1CE30F35S5 1CE30F35S5-210bar 1CE90F20S4 1CE90F35S4 1CE90F35S8 1CEB90-F-35S4NegotiableMOQ: 11 Pieces
-
EATON 11SE30F35S5 (SUN T11A) 1DR2P20S 1DR2P40S 1DR30P20S 1DR30P40S 1UL60-P-20S 1LR100F35S 1LR300F20S 1LR300F35S 1PA100P35S 1PD20P6S 1PD50P12S 1PUL200P35S 1SH10 1SH20S 4CK301S 4CK301S3 4CK901S 4CK901S3 FR5-8-F-0-0.16NegotiableMOQ: 11 Pieces
-
EATON FT247/2-18 FPR1/4-0.5BAR FPR3/8-0.5BAR FPR3/8-2.5BAR FPR1/2-0.5BAR FPR1/2-1BAR FPR3/4-0.5BAR FPR3/4-2.5BAR FPR1-1BAR FPR1-0.5BAR FPR11/4-0.5BAR FPR11/4-4BAR CBV1-10-S-0-A-30/ CBV1-10-S-0-A-50/ CBV1-10-S-0-B-30/ CV1-10-P-0-15 CV1-10-P-0-30 CV1-10-P-0NegotiableMOQ: 11 Pieces
-
EATON CV1-10-P-0-5 CV3-10-P-0-180 CV3-10-P-0-20 CV3-10-P-0-10 CV3-10-P-0-3 CV3-8-P-0-10 CV3-8-P-0-30 CV11-12-P-0-5 CV1-16-P-0-5 CV2-20-P-0-5 CV2-20-P-0-15 CV2-20-P-0-30 CV2-20-P-0-60 DPS2-10-T-F-0-160 FAR1-10-S-0 FAR1-10-S-0-10NegotiableMOQ: 11 Pieces
Brand Name
401AA00001A 4CK301S 401AA00002A 4CK301S3 401AA00065A 4CK301SV 401AA00066A 4CK301SV3
Place of Origin
Afghanistan
Model Number
401AA00001A 4CK301S 401AA00002A 4CK301S3 401AA00065A 4CK301SV 401AA00066A 4CK301SV3
Material
Alloy
Application
Commercial Kitchen
Structure
Angle
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Hydraulic
Port Size
401AA00001A 4CK301S 401AA00002A 4CK301S3 401AA00065A 4CK301SV 401AA00066A 4CK301SV3
Media
Acid
Temperature of Media
High Temperature

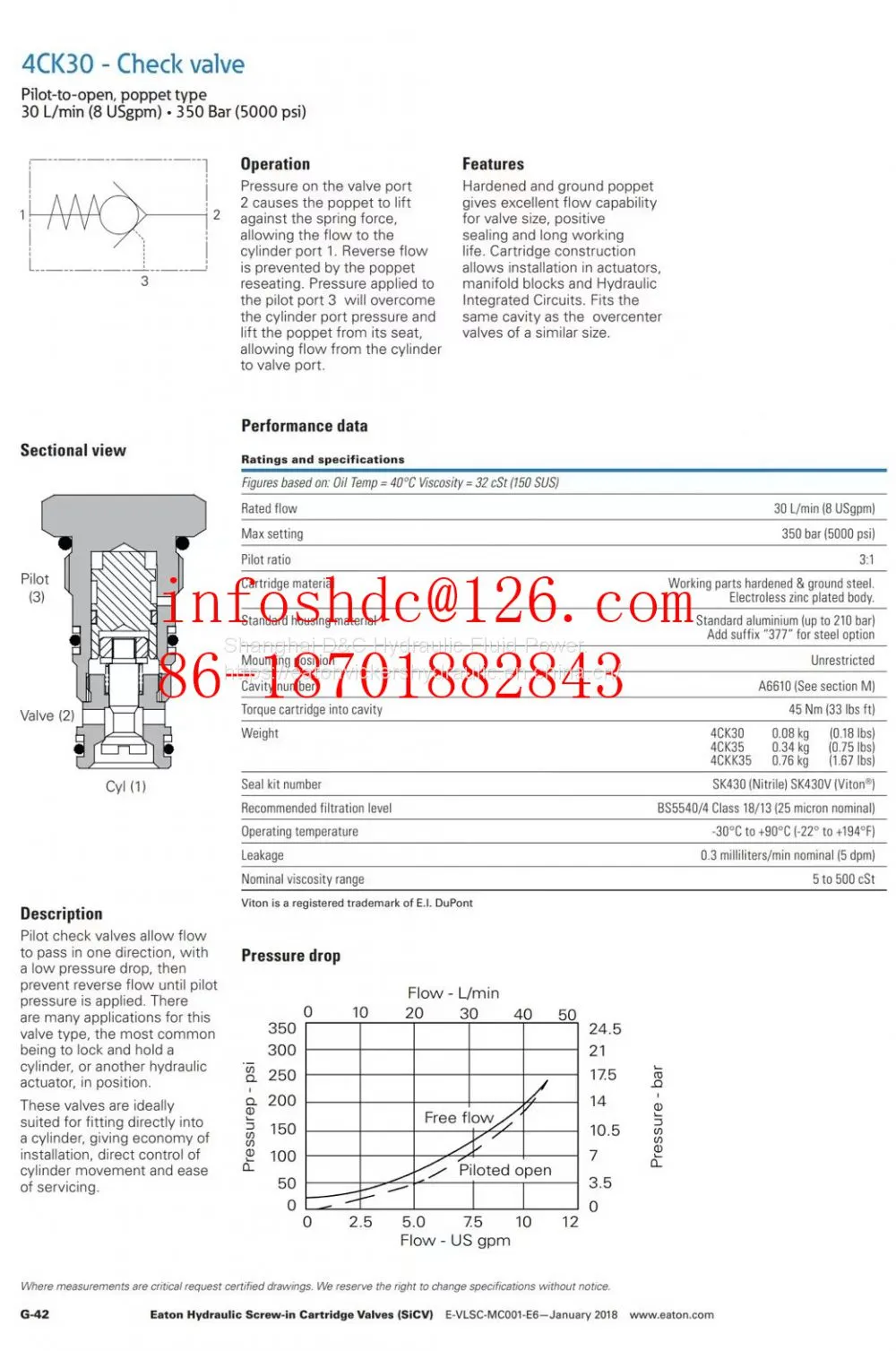

EATON Piloted check valve 4CK301S/A6610

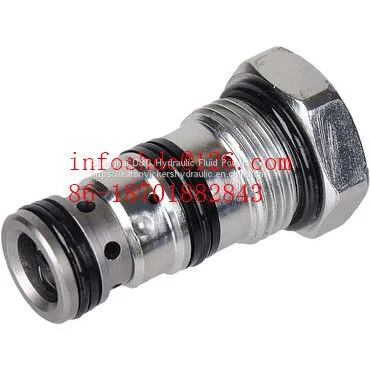

401AA00001A Screw-in Cartridge Valves - 4CK301S PILOT CHECK 30 LPM, 3:1
Rated Flow 30 litres/min (8 US GPM)
Max Pressure 350 bar (5000 psi)
Pilot Ratio 3:1
Cartridge Material Working parts hardened and ground steel. Electroless zinc plated body
Body Material Standard aluminium (up to 210 bar*) Add suffix ‘377’ for steel option.
Mounting Position Unrestricted
Cavity Number A6610 (See Section 17)
Torque Cavity into Cartridge
45 Nm (33 lbs ft)
Weight 4CK30 0.08 kg (0.18 lbs)
4CK35 0.34 kg (0.75 lbs)
4CKK35 0.76 kg (1.67 lbs)
Seal Kit Number SK430 (Nitrile) SK430V (Viton)
Recommended Filtration Level BS5540/4 Class 18/13 (25 micron nominal)
Operating Temp -20°C to +90°C
Leakage 0.3 millilitres/min nominal
Nominal Viscosity Range
5 to 500 cSt

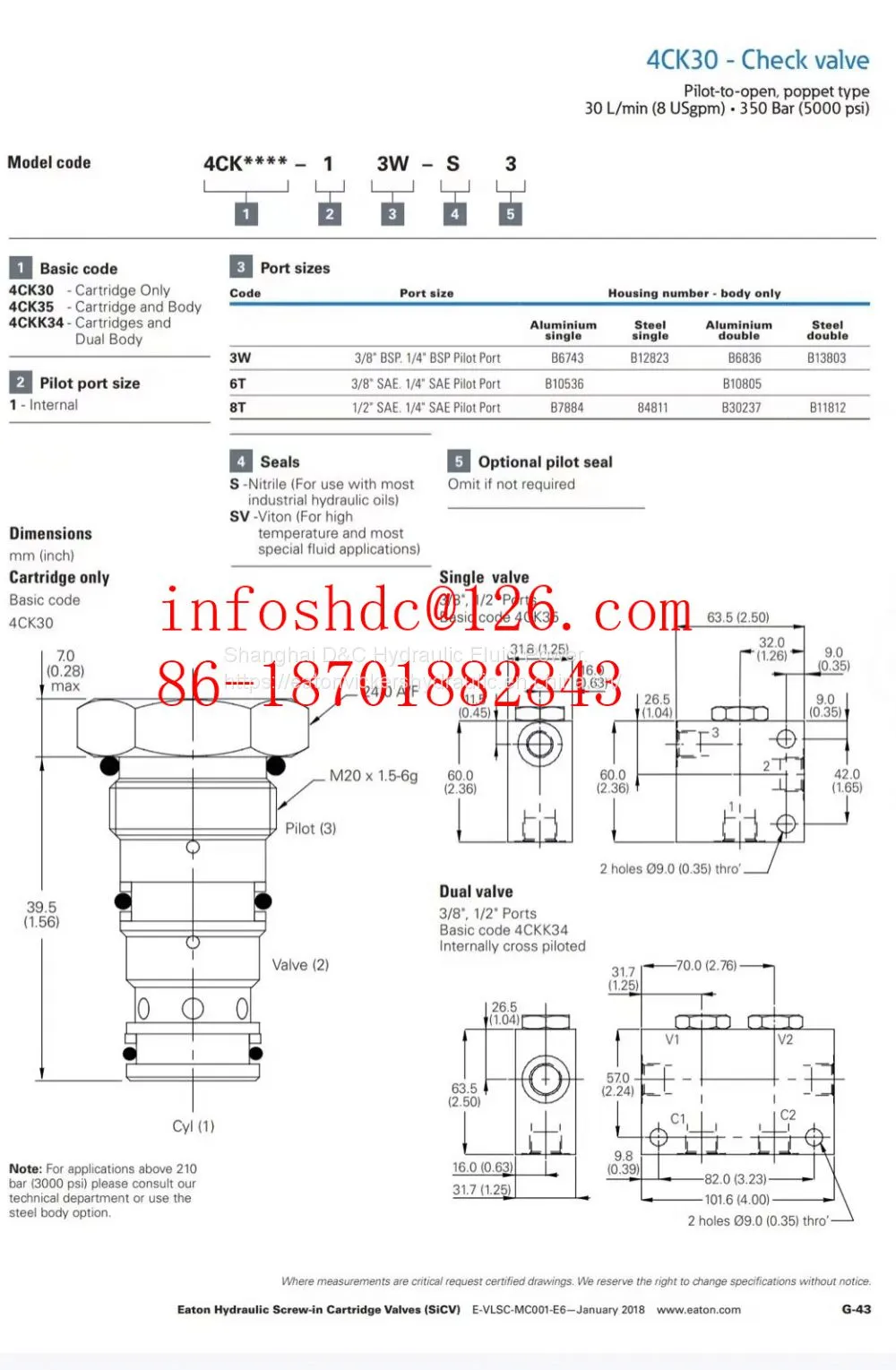

Feature Code Description
SERIES 4CK30 30 L/MIN [8 USGPM];350 BAR [5000 PSI] PILOT TO OPEN CHECK VALVE - CARTRIDGE ONLY
PILOT PORT SIZE -1 INTERNAL
PORT SIZE _ NONE
SEAL -S NITRILE (FOR USE WITH MOST INDUSTRIAL HYDRAULIC OILS)
PILOT PISTON SEAL _ (_) NO PILOT SEAL
BODY MATERIAL _ ALUMINUM
SPECIAL FEATURES _ NONE
