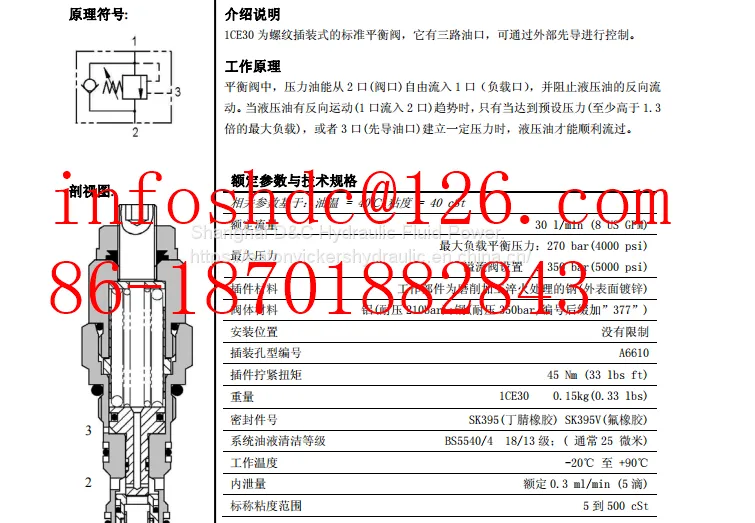

1CE30 - Overcenter valve

Pilot assisted relief with check

30L/min (8 USgpm) • 270 bar (4000 psi)

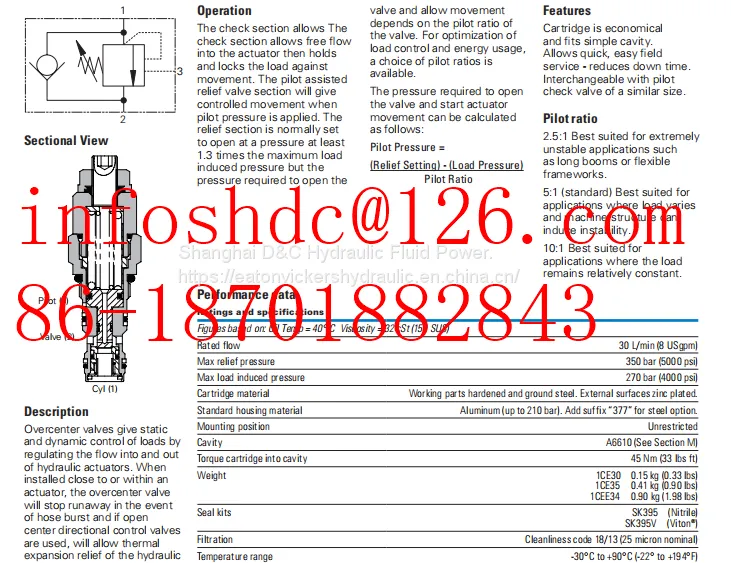

Operation：

The check section allows The check section allows free flow into the actuator then holds and locks the load against movement. The pilot assisted relief valve section will give controlled movement when pilot pressure is applied. The relief section is normally set to open at a pressure at least 1.3 times the maximum load induced pressure but the pressure required to open the valve and allow movement depends on the pilot ratio of the valve. For optimization of load control and energy usage, a choice of pilot ratios is available.The pressure required to open the valve and start actuator movement can be calculated as follows:Pilot Pressure = (Relief Setting) - (Load Pressure)

Features：

Cartridge is economical and fits simple cavity. Allows quick, easy field service - reduces down time. Interchangeable with pilot check valve of a similar size

Pilot ratio：

2.5:1 Best suited for extremely unstable applications such as long booms or flexible frameworks.

5:1 (standard) Best suited for applications where load varies and machine structure can induce instability.

10:1 Best suited for applications where the load remains relatively constant.

Performance data:

Figures based on: Oil Temp = 40° C Viscosity = 32 cSt (150 SUS)

Rated flow 30 L/min (8 USgpm)

Max relief pressure 350 bar (5000 psi)

Max load induced pressure 270 bar (4000 psi)

Cartridge material Working parts hardened and ground steel. External surfaces zinc plated.

Standard housing material Aluminum (up to 210 bar). Add suffix “377” for steel option.

Mounting position Unrestricted

Cavity A6610 (See Section M)

Torque cartridge into cavity 45 Nm (33 lbs ft)

Weight 1CE30 0.15 kg (0.33 lbs)

1CE35 0.41 kg (0.90 lbs)

1CEE34 0.90 kg (1.98 lbs)

Seal kits SK395 (Nitrile)

SK395V (Viton®)

Filtration Cleanliness code 18/13 (25 micron nominal)

Temperature range -30°C to +90°C (-22° to +194°F)

Internal leakage 0.3 milliliters/min nominal (5 dpm)

Nominal viscosity range 5 to 500 cSt

1CE30 - Cartridge Only

1CE35 - Cartridge in body

1CEE34 -  Cartridges in dual body

Adjustment

F - Screw adjustment

N - Fixed

Pressure range

20 - (2.5:1 and 5:1): 70-210 bar.Std setting 100 bar

(10:1): 100-210 bar.Std setting 100 bar

35 - (2.5:1 and 5:1): 100-350

bar.Std setting 210 bar

(10:1): 120-350 bar.Std setting 210 bar

Seal material

S - Buna-N

SV - Viton

Pilot ratio

2 - 2:1

5 - 5:1

10 - 10:1

Figures based on: Oil Temp = 40° C Viscosity = 32 cSt (150 SUS)

Rated flow 30 L/min (8 USgpm)

Max relief pressure 350 bar (5000 psi)

Max load induced pressure 270 bar (4000 psi)

Cartridge material Working parts hardened and ground steel. External surfaces zinc plated.

Standard housing material Aluminum (up to 210 bar). Add suffix “377” for steel option.

Mounting position Unrestricted

Cavity A6610 (See Section M)

Torque cartridge into cavity 45 Nm (33 lbs ft)

Weight 1CE30 0.15 kg (0.33 lbs)

1CE35  0.41 kg (0.90 lbs)

1CEE34 0.90 kg (1.98 lbs)

Seal kits SK395  (Nitrile)SK395V    (Viton®)

Filtration Cleanliness code 18/13 (25 micron nominal)

Temperature range -30°C to +90°C (-22° to +194°F)

Internal leakage 0.3 milliliters/min nominal (5 dpm)

Nominal viscosity range 5 to 500 cSt

406AA00584A 1CE30F10SV2

406AA00353A 1CE30F20S10

406AA00588A 1CE30F20S2

406AA00089A 1CE30F20S5

406AA00590A 1CE30F20SV10

406AA00352A 1CE30F20SV5

406AA00006A 1CE30F35S10

406AA00004A 1CE30F35S2

406AA00005A 1CE30F35S5

406AA00640A 1CE30F35SV10

406AA00642A 1CE30F35SV2

406AA00134A 1CE30F35SV5

406AA00648A 1CE30-F-7S-10

406AA00657A 1CE30G35S5

406AA03172A 1CE30G35SV5

406AA00672A 1CE30N13S2

406AA02741A 1CE30N16S25

406AA00673A 1CE30N16S5

406AA00674A 1CE30N18S5

406AA00095A 1CE30N20S5

406AA00137A 1CE30N21S2

406AA00138A 1CE30N21S5

406AA00139A 1CE30N23S10

406AA00096A 1CE30N23S5

406AA00140A 1CE30-N-24.2S-5

406AA00685A 1CE30-N-24.5S-2

406AA02742A 1CE30N24S10

406AA00142A 1CE30N25S2

406AA00097A 1CE30N25S5

406AA00688A 1CE30N25SV2

406AA00379A 1CE30N27S2

406AA00144A 1CE30N27S5

406AA00145A 1CE30N28S10

406AA03031A 1CE30N30S2

406AA00147A 1CE30N30S5

406AA00690A 1CE30N32S10

406AA00691A 1CE30N35S10

406AA00363A 1CE30N35S5

406AA00695A 1CE30N35SV10

406AA03042A 1CE30N38S10

406AA00699A 1CE30N5S2

406AA00148A 1CE30-N-7.5S-5

406AA00149A 1CE30N8S5
