Product model:

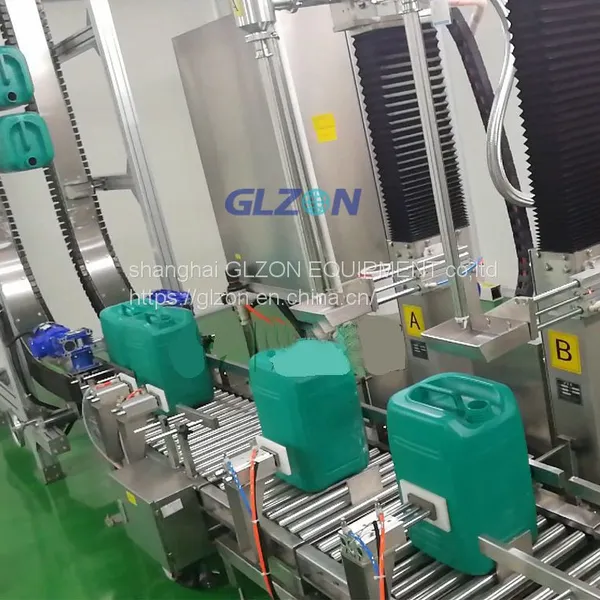

■ 25kg automatic filling production line GAF-30L2-AS
■ Application scope: It is suitable for filling chemical, food, medicine and other raw materials accurately and quantitatively.
Basic parameters:
■ Power supply: AC220V 50/60HZ 0.2KW air supply: 0.5~0.7 Mpa
■ Filling capacity: 10~30kg; grading value: 10g
■ Filling capacity: 120~240 barrels/hr.
■ Filling accuracy: ≤ 0.1% F.S 。
■ Gun filling material: SUS304/SUS316/PTFE (optional)
■ Explosion-proof grade: Exd11BT4
Main features:
■ The system is controlled by programmable PLC, guided in Chinese, and reliable in performance;
■ Automatic conveying, automatic positioning, automatic filling, automatic capping and screwing;
■ The whole process of gun filling is made to prevent dripping and splashing; Quick joint disassembly, convenient disassembly and washing;
■ The target value of the system can be set freely, and the height of filling gun can be adjusted, which is suitable for rapid filling of packaging barrels of various specifications;
■ Equipped with large and small ball valve groups and two-stage filling gun, big, medium, small and micro four-stage filling design, stable and fast filling;
■ It is forbidden to fill the weighing platform without barrels, and differential pressure type zero time difference barrel collision protection; Net weight/gross weight (automatic peeling per barrel) can be automatically selected by two filling methods;
■ One-button operation, easy to use; Multi-window displays information such as filling quantity, barrel number, cumulative quantity, etc.
■ There is a signal indicator to display immediately, and an out-of-tolerance automatic alarm will be given;
■ Good stability, reduced loss, cost saving, improved working efficiency and reduced manual operation pressure.
Optional features:
■ Feeding pump, filter, gas collecting hood, labeling machine, stacker, nitrogen charging device, other customization.
■ Optional models: industrial grade, food grade and pharmaceutical grade.
