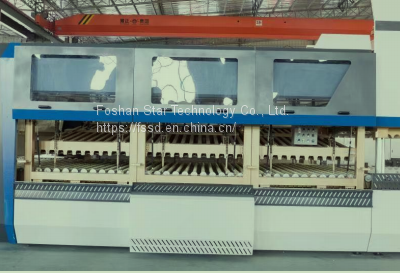

Flat glass tempering furnace STG-A0610-4(Radiation type)
- 5 Set / Sets per Month
- fangcheng port
Product Details
Brand Name: | Foshan Star | Place of Origin: | China | Model Number: | STG-A0610-4 |
Certification: | CE | After-sales Service Provided: | Overseas third-party support available | Warranty: | 1 year |
Production Capacity: | ≥ 98% | Condition: | New | Voltage: | 380V/50HZ/3PHASE |
Power(W): | 45kw | Machine Type: | Glass Tempering Furnace |
Product Description
1. Description of the Equipment

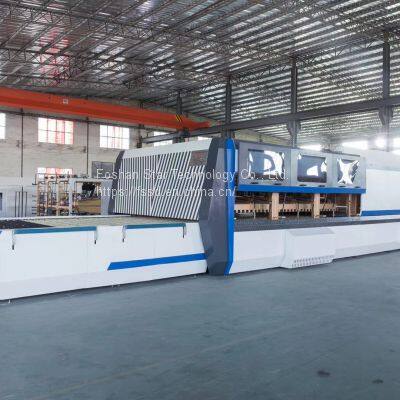

1.1 Brief introduction
The furnace includes loading table, heating section, quenching and cooling section, unloading table, and control system. It is used to manufacture flat glass for window,door furniture, home appliance, architecture glass, etc.

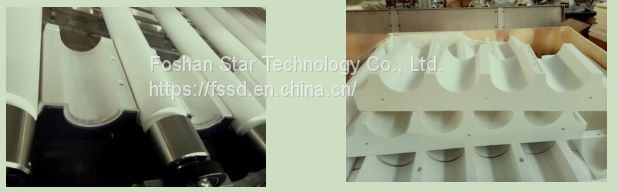

1.2 Loading Table The loading table is composed of rubber-covered rollers and Kevlar rope. When the glass is put onto the rollers, the glass will be conveyed automatically to the entrance of the furnace where it will be in ready-to-enter-furnace position and the rollers stop moving. It will send the glass into the furnace once the computer control system gives enter command.

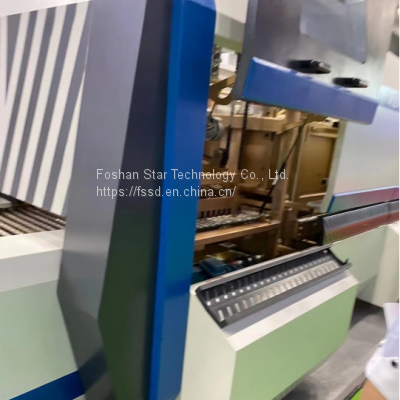

1.3 Heating Section The structure of the heating section is of a double-layer box type covered with thermos-insulation material. Inside the section there is a conveyor system with high temperature resistant ceramic rollers. Heating elements and radiation plates are installed on the upper layer and lower layer of this section. The upper layer radiation plate is special heat resistant and anti-corrosion cast material. The heating element is of an integrated part with spiral type resistance erected on ceramic part, it’s easy to replace. When the glass is going to enter the furnace, the front door of the heating section opens the rolls of the loading table and heating section move at the same time. When the glass is in the furnace, the front door will close and the glass on the rollers will be moved back and forth at the distance calculated by the controlling system automatically, so that the glass will be heated evenly. The upper section can be lifted up for maintenance. The heating elements are in matrix layout.

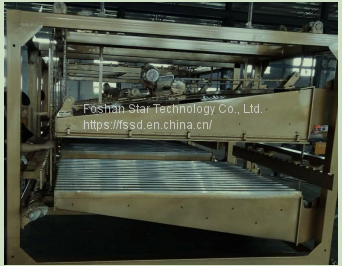

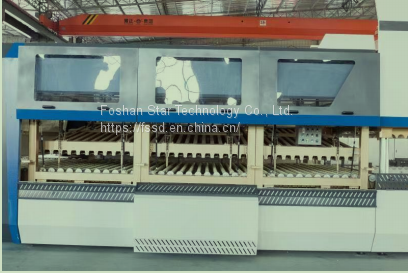

1.4 Flat Quenching/Cooling Section
The alloy sections and steel sheet is cold riveted to avoid deformation of heat welding, ensure effectively the entire flatness at air face of quench. Rational nozzle aperture and arrangement of air hole guarantee the glass even cooling. The upper and lower quenches are combined with linkage and individual drives, which can actually control the rational height for air nozzle of quenches. Matched with balance control of upper and lower air amount, the top and bottom of the glasses can reach to optimum heat radiation, so as to ensure the flatness of tempering glass.
1.5 Unloading Table The unloading table is the similar as the loading table. When the glass is transported to the end of the conveyor, the rollers will stop, and the glass can be taken away by hand, or by robot, if there is available at the customer’s factory.
1.6 Control System
2. Technical Parts
2.1Technical Specifications
Max loading area:600*1000mm
Max glass size:600*1000mm
Min glass size:80*80mm
Glass thickness range:4-12mm
Recommended transformer capacity:≥65KVA
Heating power :45KW
Blower power :38kw
Blower Control :controlled by frequency inverters
Quality Standard :ANSI Z97.1-2004,
Finished product rate: ≥ 98%
Installation period (approximately,): 15 working days
Commissioning period (approximately) :7 working days
Training period (approximately): 1 ( one ) working week
Guarantee period :ONE year for non worn-out parts and components.
Power supplier mode :380V/50HZ/3PHASE
2.1.2 Power consumption
Flat: ≤4 kwh/m2

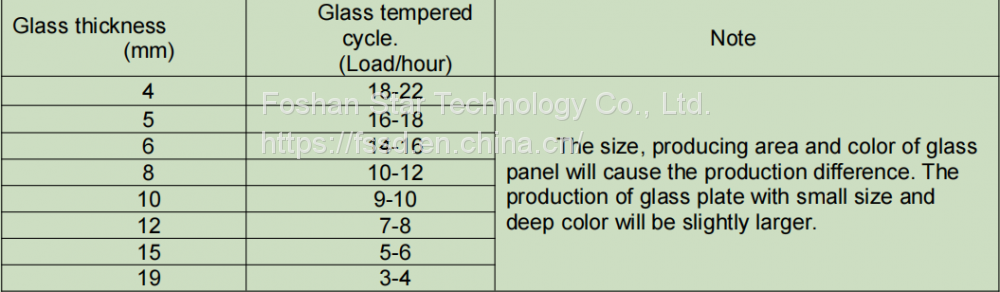

2.1.3 Productivity:
2.1.4 Suitable glass sorts
Tinted glass
Patterned glass
Silk screen printing glass
Clear float glass
