Machine Introduction

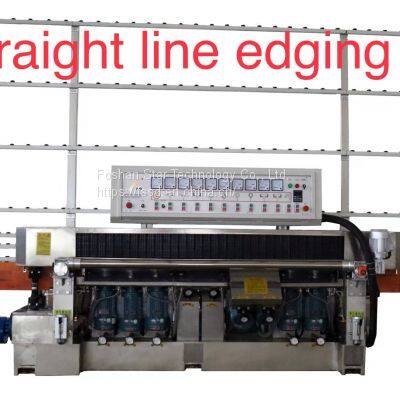

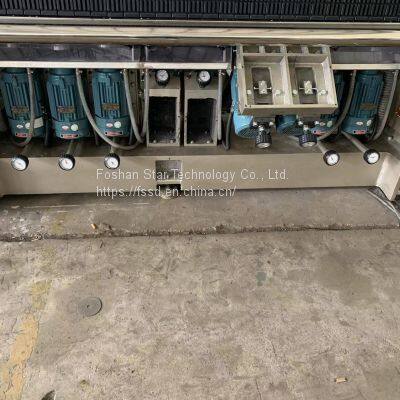

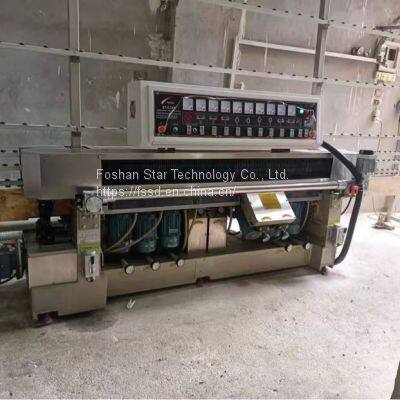

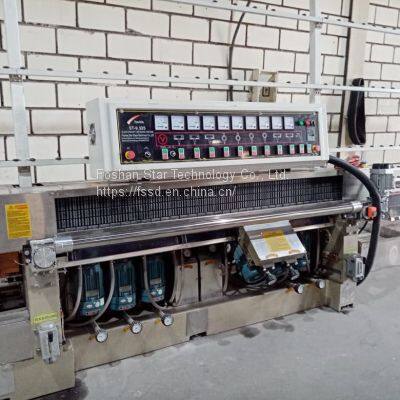

The machine is glass 9 motors straight line edging machine,, used for grinding and polishing the bottom edge and edge of flat glass. A special telescopic platen is used to grind glass of different thicknesses. The machine is easy to operate and stable. The front rails can be moved in parallel to adjust the thickness of the glass for easy and precise operation. The chamfering grinding wheel adopts pallet, and there is no vibration during grinding. The main transmission is frequency conversion speed regulation. The special part is the input conveyor rack to be vertically adjustable up and down ,the function is to adjust the grinding amount by rotate the rotation handle ,and the grind amount digital display.
Technical parameters
Wheels: 9 .
working speed: 0.6-6.0m/min
Max. arris width: 2.5mm
Min. glass size: 60mm
Glass thickness: 3-20mm
Total power: 18.75kw
Total dimension: 6.6x1.0x2.6m
Total weight: 2800kg
Product advantage：

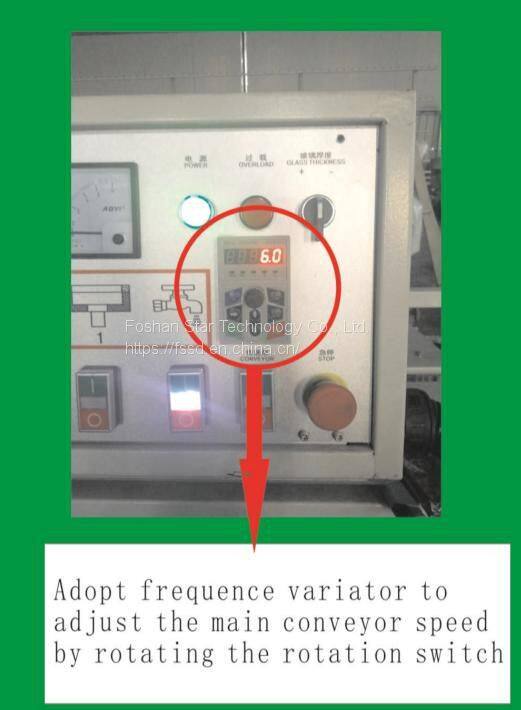

1) Adopt frequency variator as main transmit system，high or low speed all smooth and no vibration, low noise.

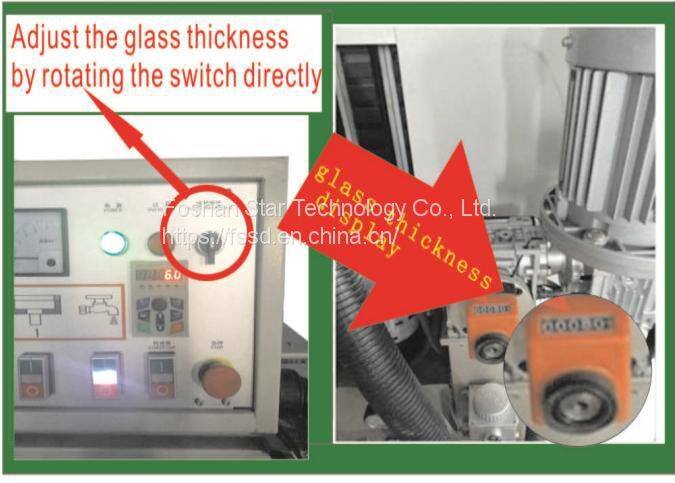

2) Digital display glass thickness.
3) Adopt manual filling function lubrication system , easy to maintain the skateboards which for support grinding motors.
4) The last motor for polishing flat bottom glass, adopt double speed system motor.

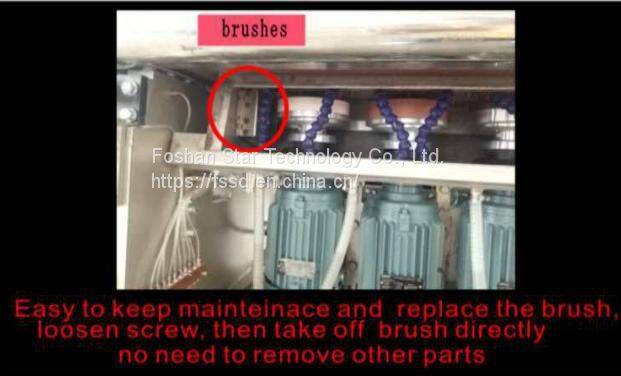

5) 4 layer waterproof brush, easy to replace.
6) Advanced front beam configuration.Exclusive design of straight pallets for easier replacement and maintenance.
7) Front and rear rails: high quality cast iron, not easily deformed.
8) Main machine body, supporting pillar, all adopting high quality iron casting.
9) Dovetail grinding head plate: high quality cast iron, professional processing, no gap, stable and vibration-free during work.
10) Waterproof brush: high elasticity, high temperature resistant.
11) The pads and chain are adopted famous brand in China. The front and rear splints are all branded “lobster”, and the chain adopts the “Donghua” brand in Hangzhou
